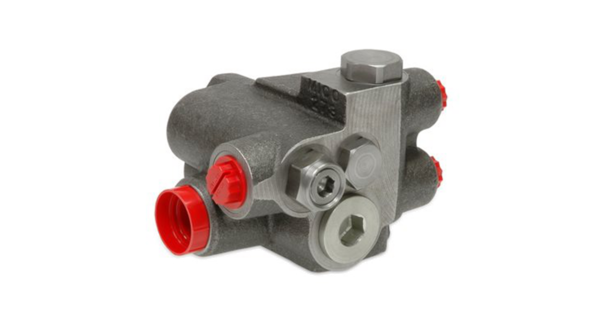

Single Accumulator Charging Valve
Single Accumulator Charging Valve

Carica l'accumulatore in un circuito frenante idraulico singolo

Features and innovation

  • Supplies oil to an accumulator from an open center circuit on demand at a preset rate
  • Uses power developed in the main hydraulic system
  • Remotely mounted from brake valves
  • Designed for mobile equipment with varying pump flows
  • Flow rates to 113 l/min (30 gpm)
  • Models available with built-in relief valve to limit the main hydraulic system pressure

Customer value

  • No secondary fluid source is required
  • Easily integrates into the hydraulic braking system
  • Improves efficiency by having no continuous drain of oil to reservoir
  • Reduce pump cycle time for a large variety of pressure ranges between high and low limits available

Difference

  • Compact design is customizable to application requirement
  • Ability to customize the preset for high charging limit and low charging limit
  • Quick system loading and unloading with snap action feature
  • Proven design with more than 35 years of manufacturing

Applicazione

Off-Highway
