Gearbox Actuator AMT-F 12 V
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
4213660010
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Calculated Volume (dm³)5.94
-
Electrical connectionConnector Tyco 22 pol
-
Max. operating pressure8.0 bar
-
Port thread 1M16 x 1.5
-
Port thread 2Ø 5 mm
-
Product categoryDevice
-
Protection classIP 6K9K
-
Rated current solenoid valve (A)0.77 A
-
Technical specificationOE specification
-
Temperature range-30°C to +90°C
-
TypeVolvo
-
Voltage12 V
-
GTIN04057875159469
-
Size (mm x mm x mm)270 x 220 x 100
-
UPC193133400271
-
Weight (kg)23.61
-
Weight (lb)52.05
Doc Type
drawing
Locale
de
Artical Number
4213660010____005_dascheck_e10_page-1---notset
Doc Type
brochure
Locale
en
Artical Number
81502673
Doc Type
poster
Locale
en
Artical Number
82001883
Service & Repair

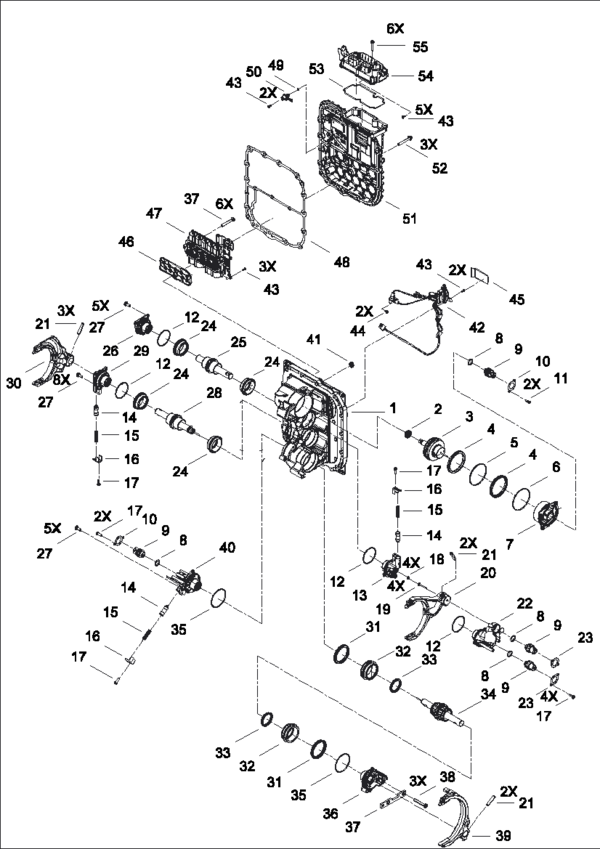

List of Spare Parts
| 1 | Flange | 1 | ||
| 2 | Radial oil seal | 1 | ||
| 3 | Piston | 1 | ||
| 4 | Lip-Seal | 2 | 4213659232 | |
| 5 | Guide ring | 1 | 4213659232 | |
| 6 | O-Ring ISO3601-82,8x3 | 1 | ||
| 7 | Cover | 1 | ||
| 8 | O-Ring, Dynamic 18.64x3.53 | 4 | 4213659292 | |
| 9 | Distance sensor module | 4 | 4213659292 | |
| 10 | Sheet | 2 | 4213659292 | |
| 11 | Cheese head screw DIN6912-M6x18 | 2 | ||
| 12 | O-Ring ISO3601-58,8x2,98 | 4 | 4213679292 | |
| 13 | Cover | 1 | 4213679292 | |
| 14 | Pins | 3 | 4213659222 | |
| 15 | Compression Spring | 3 | 4213659222 | |
| 16 | Sheet | 3 | 4213659222 | |
| 17 | Self Cutting Screw | 9 | 4213659222 4213679292 | |
| 18 | Pressure Spring | 4 | 4213659282 | |
| 19 | Armatur | 4 | 4213659282 | |
| 20 | Fork | 1 | ||
| 21 | Locking Pin | 7 | 4213659332 4213659342 4213659322 4213679292 | |
| 22 | Cover | 1 | ||
| 23 | Sheet | 2 | ||
| 24 | Piston | 4 | 4213659232 | |
| 25 | Piston | 1 | 4213659342 | |
| 26 | Cylinder cover | 1 | 4213679292 | |
| 27 | Head screw | 18 | 4213679292 | |
| 28 | Piston | 1 | 4213659332 | |
| 29 | Cover | 1 | ||
| 30 | Fork | 1 | ||
| 31 | Lip-Seal | 2 | 4213659232 | |
| 32 | Piston | 2 | 4213659232 | |
| 33 | Lip-Seal | 2 | 4213659232 | |
| 34 | Piston | 1 | 4213659322 | |
| 35 | O-Ring | 2 | ||
| 36 | Cover | 1 | ||
| 37 | Sheet | 1 | ||
| 38 | Fillister Head Screw | 6 | 4213679292 | |
| 39 | Fork | 1 | ||
| 40 | Cover | 1 | ||
| 41 | Gasket | 1 | ||
| 42 | Connecting Bridge | 1 | 4213679222 | |
| 43 | Rivet | 12 | 4213679002 4213679312 4213679222 | |
| 44 | Fillister head screw ISO7380-M5x12 | 2 | 4213679222 | |
| 45 | Hose | 1 | 4213679222 | |
| 46 | Sealing Piece | 1 | ||
| 47 | Valve Unit | 1 | ||
| 48 | Gasket | 1 | ||
| 49 | O-Ring | 1 | 4213679002 | |
| 50 | Pressure Sensor Module | 1 | 4213679002 | |
| 51 | Cover | 1 | ||
| 52 | Screw, special type | 3 | ||
| 53 | Sealing | 1 | 4213679312 | |
| 54 | Connecting Plate | 1 | 4213679312 | |
| 55 | Self Cutting Screw | 6 | 4213679312 |
