Parkeer - los - veiligheidsklep (PREV)
Twin-Cyl.Compressor 704cc,flangemounted
Onderdeelnummer::
9710029100
Brutoprijs/Stuk:
424.00
Kenmerken en voordelen
-
MerkWABCO
-
Type onderdeelPremium OE kwaliteit
-
Technische specificatieOE specificatie
-
ProductcategorieApparaat
-
Berekend volume (dm³)4.6089
-
KleurBlack/Red
-
Max. bedrijfsdruk10.0 bar
-
OpmerkingenWithout plate
-
Schroefdraad poort 1-1Fitting Ø 8 x 1 (893 800 001 2)
-
Schroefdraad poort 1-2Fitting Ø 8 x 1 (893 800 001 2)
-
Schroefdraad poort 21Fitting Ø 8 x 1 (893 800 001 2)
-
Schroefdraad poort 22Fitting Ø 8 x 1 (893 800 001 2)
-
Schroefdraad poort 4Fitting Ø 8 x 1 (893 800 001 2)
-
Temperatuurbereik-40°C to +65°C
-
VersieWithout test connection
-
Afmetingen (MM x MM x MM)174 x 172 x 154
-
GTIN04057875301738
-
Gewicht (kg)1.69
-
UPC193133375494
-
Gewicht (lb)3.7258
vervangt
-
DAMBROZ997904020
-
FELDBINDER1065595
-
IBIPORA3051000015
-
KÄSSBOHRER21151103199
-
METANOX10078
-
RODOTÉCNICA112282
-
ROSSETTI700840185
-
SCANIA2089925
-
SCHMITZ CARGOBULL1043606
Doc Type
drawing
Locale
multi
Artical Number
9710029090____053_dascheck_l9_page-1---notset
Doc Type
catalog
Locale
nl
Artical Number
81500343
Service & Reparatie

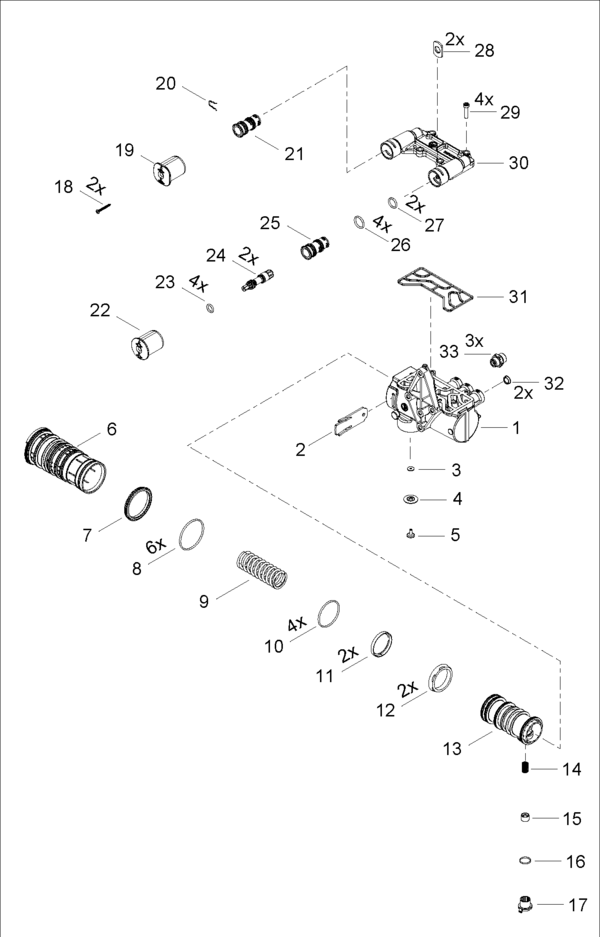

Lijst van vervangingsonderdelen
| 1 | Carrosserie | 1 | ||
| 2 | Bracket Plate | 1 | ||
| 3 | Afstandsschijf | 1 | ||
| 4 | PAKKING | 1 | 8970179604 | |
| 5 | Holle klinknagel | 1 | ||
| 6 | Huls | 1 | ||
| 7 | Keerring | 1 | 9710029262 | |
| 8 | O-Ring, statical | 6 | 9710029262 | |
| 9 | Cylindrical Compression Spring | 1 | 9710029262 | |
| 10 | O-Ring ISO3601-47x2,5 | 4 | 9710029262 | 8970706804 |
| 11 | Back-up Ring | 2 | 9710029262 | 8996051704 |
| 12 | nutring | 2 | 9710029262 | 8971563404 |
| 13 | Zuiger | 1 | ||
| 14 | Compression Spring | 1 | 9710029262 | |
| 15 | Klep | 1 | 9710029262 | 9710075032 |
| 16 | O-Ring ISO3601-17x1,5 | 1 | 9710029262 | |
| 17 | Klepzittingring | 1 | 9710029262 | |
| 18 | Schroef | 2 | 9710029232 9710029242 | |
| 19 | drukknop | 1 | 9710029232 | |
| 20 | Borgveer | 1 | 9710029262 | |
| 21 | Huls | 1 | 9710029262 | |
| 22 | drukknop | 1 | 9710029242 | |
| 23 | O-Ring ISO3601-10,5x2,7 | 4 | ||
| 24 | Zuiger | 2 | 9710029262 | |
| 25 | Huls | 1 | ||
| 26 | O-RING MIN50 | 4 | 9710029262 | 8970861504 |
| 27 | O-RING | 2 | 9710029262 | 8970862004 |
| 28 | Sheet Cover | 2 | 9710029232 9710029242 | |
| 29 | Cheese head screw ISO14580-M6x25 | 4 | 9710029262 | |
| 30 | Carrosserie | 1 | ||
| 31 | Dichting | 1 | 9710029262 | |
| 32 | Gaasfilter, zeef | 2 | 8993602604 | |
| 33 | Insteekkoppeling 8x1-M16x1.5 per 150 | 5 | 8938000012 |
