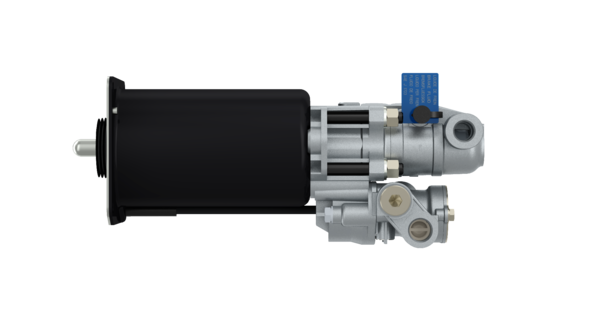

Servo debrayage
Twin-Cyl.Compressor 704cc,flangemounted
Référence article:
9700512260
Prix unitaire brut:
0.00
Caractéristiques et avantages
-
MarqueWABCO
-
Type de pièceQualité d'origine supérieure
-
Spécification techniqueSpécification OE
-
Catégorie produitAppareil
-
Course26 mm
-
Distance entre les trous110 mm
-
Filetage du port 1-4M14 x 1.5
-
Filetage du port 11M16 x 1.5
-
Filetage du port 12M12 x 1.5
-
Filetage du port 22M12 x 1.5
-
Filetage du port 32Ø 8.0 mm
-
Information importantePlease follow the installation instructions of the vehicle manufacturer
-
Longueur329 mm
-
Plage de température-40°C to +80°C
-
Pression de fonctionnement max.10.0 bar
-
Suspension4x Ø 9.0 mm
-
Taraudage de la tigeBall Ø 12.0 mm
-
Volume calculé (dm³)3.085
-
moyenBrake fluid SAE J 1703
-
Dimensions (MM x MM x MM)279 x 97 x 114
-
GTIN7895851054837
-
Poids (kg)2.515
-
UPC193133373650
-
Poids (lb)5.545
Remplace
-
MAN2Z0721257A
-
OTOKAR13H1023250AA
-
RENAULT5010639015
-
RENAULT20812661
-
VOLVO20812661
-
VOLVO20757134
-
VOLVO5010639015
-
VW2Z0721257A
Doc Type
drawing
Locale
multi
Artical Number
9700512260____005_dascheck_b2_page-1---jeromesa
Service et réparation
Liste de pièces
| 1 | ECROU H M8(6H) SP/12 | 4 | ||
| 2 | RONDELLE CONIQUE | 4 | 8950103304 | |
| 3 | Carrosserie | 1 | 9709010124 | |
| 4 | O-RING 34,65X1,78/JED293 | 2 | 9700519992 9700510372 | |
| 5 | U-RING | 1 | 9700519992 9700510372 | |
| 6 | Anneau de fixation | 1 | 9700519992 9700510372 | |
| 7 | VIS DE PURGE | 1 | 8913505204 | |
| 8 | Protettoro | 1 | 9700519992 9700510372 | |
| 9 | VIS H M5X8-CL8.8/JED404.1 | 2 | ||
| 10 | Plaque/coupelle | 1 | 9700511024 | |
| 11 | Revêtement | 1 | 9700516614 | |
| 12 | BAGUE | 1 | 9700519992 9700510372 | |
| 13 | Soupape | 1 | 9700519992 9700510372 | |
| 14 | Revêtement | 1 | 9700514504 | |
| 15 | O-RING 22,00X2,00/7080M | 2 | 9700519992 9700519992 9700510372 9700510372 | 8970834804 |
| 16 | Guide de clapet | 1 | 9700511514 | |
| 17 | RESSORT | 2 | 9700519992 9700510372 | |
| 18 | Couvercle de culasse | 1 | 9700519992 9700510372 | |
| 19 | O-RING 8,90X1,90/7080M | 2 | 9700519992 9700510372 | 8970866704 |
| 20 | Soupape | 1 | 9700519992 9700510372 | 8995061502 |
| 21 | Corps de valve | 1 | 9700510274 | |
| 22 | O-RING 7,20X1,90/7080M | 1 | 9700519992 9700510372 | |
| 23 | Anneau de fixation | 1 | 9700519992 9700510372 | |
| 24 | U-RING | 1 | 9700519992 9700510372 | |
| 25 | Piston | 1 | 9700519992 9700510372 | 9709027314 |
| 26 | Bonnette/Tête | 1 | 8950729504 | |
| 27 | Fiche | 1 | 9700510434 | |
| 28 | Diaphragme | 1 | 9700519992 9700510372 | |
| 29 | CORPS CENTRAL | 1 | ||
| 30 | Raccord | 1 | 9700519992 9700510372 | |
| 31 | Écrou | 2 | ||
| 32 | S/E VIS + RONDELLE | 2 | ||
| 33 | RONDELLE D'APPUI | 1 | 9700519992 9700510372 | |
| 34 | O-RING 25,20X3,00/JED373 | 1 | 9700519992 9700510372 | |
| 35 | BAGUE BS 23X16,7X1,5 | 1 | 9700519992 9700510372 | |
| 36 | Fiche | 1 | 8980308304 | |
| 37 | VIS CHC M5X16/16-CL8.8 | 2 | 9700513102 | |
| 38 | Bonnette/Tête | 1 | 9700513102 | |
| 39 | O-RING 15,00X1,50/7080M | 1 | 9700513102 | |
| 40 | Corps de valve | 1 | 9700513102 | |
| 41 | O-RING 15,00X1,50/7080M | 1 | 9700513102 | |
| 42 | Chemin de roulement | 1 | 9700513102 | |
| 43 | Anneau de joint | 1 | 9700513102 | |
| 44 | Piston | 1 | 9700513102 | |
| 45 | GAINE THERMO-RETRACTABLE | 1 | 9700513102 | |
| 46 | Douille | 2 | 9700513102 | |
| 47 | Douille | 1 | 9700513102 | |
| 48 | Soupape | 1 | 9700513102 | |
| 49 | Douille | 1 | 9700513102 | |
| 50 | O-RING 10,80X1,80/7080M | 1 | 9700513102 | 8970803804 |
| 51 | RESSORT | 1 | 9700513102 | |
| 52 | O-RING 15,00X1,50/7080M | 1 | 9700513102 | |
| 53 | Guide de clapet | 1 | 9700513102 | |
| 54 | U-RING | 1 | 9700513102 9700519992 9700510372 | |
| 55 | Disque d'étanchéité | 1 | 9700513102 | |
| 56 | Suspension | 1 | 9700513102 | |
| 57 | Bonnette/Tête | 1 | 9700513102 | |
| 58 | VIS TAPT.CBLZ M3X8/ | 1 | 9700513102 | |
| 59 | O-RING 10,50X2,70/7080M | 1 | 9700519992 9700510372 | |
| 60 | CORPS PNEUMATIQUE | 1 | 9709020124 | |
| 61 | JOINT CU A 8X12-DIN 7603 | 4 | 9700519992 9700510372 | |
| 62 | VIS H M8X65/22-CL8.8 | 4 | ||
| 63 | RESSORT | 1 | 9700519992 9700510372 | |
| 64 | Tamis | 1 | 8993602604 | |
| 65 | Barre | 1 | 9700510372 | |
| 66 | SUPPORT GARNITURE | 1 | 9700519992 9700510372 | 9700512614 |
| 67 | U-RING | 1 | 9700519992 9700510372 | |
| 68 | Anneau de fixation | 1 | 9700519992 9700510372 | |
| 69 | O-RING 21,95X1,78/JED373 | 1 | 9700519992 9700510372 | |
| 70 | Piston | 1 | ||
| 71 | Anneau de fixation | 1 | 9700519992 9700510372 | |
| 72 | TUBE | 1 | 9700519992 9700510372 | 8939816434 |
| 73 | Tige de poussoir | 1 | ||
| 74 | Joint | 1 | 9700519992 9700510372 | |
| 75 | Plaque/coupelle | 1 | ||
| 76 | RIVET CREUX 5,00X6,00 | 2 | 9700519992 9700510372 | |
| 77 | Gaine | 1 | 9700519992 9700510372 | 8977548824 |
