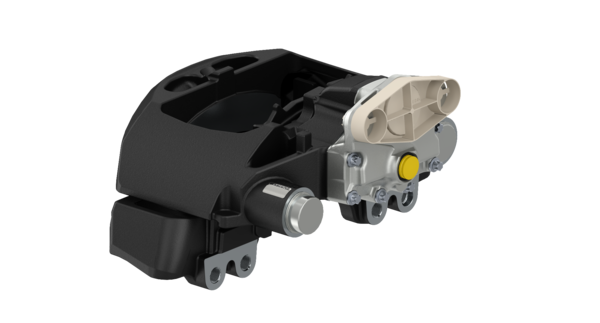

Frein a disque PAN 22-1

Disc Brake PAN-range light
Disc Brake PAN-range light
Twin-Cyl.Compressor 704cc,flangemounted
Référence article:
6402250260
Prix unitaire brut: 0.00
Créer un compte client
Vous devez être connecté pour effectuer un achat.
Vous n'avez pas encore de compte?
S'il vous plait enregistrez vous.

Caractéristiques et avantages

  • Marque
    WABCO
  • Type de pièce
    Qualité d'origine supérieure
  • Spécification technique
    Spécification OE
  • Catégorie produit
    Appareil
  • Course
    26
  • Côté du montage
    Droite
  • Diamètre
    430.0 mm
  • Disque de frein
    45 mm
  • Modèle
    PAN 22-1
  • Raccordement électrique
    Prise
  • Suspension
    4x M18 x 1.5
  • Version
    Without Pads
  • Volume calculé (dm³)
    32.964
  • Dimensions (MM x MM x MM)
    449 x 322 x 228
  • GTIN
    04057875232513
  • Poids (kg)
    30.398
  • UPC
    193133263692
  • Poids (lb)
    67.016
Documents
Name
outline drawing -table (doc 053)
Doc Type
drawing
Locale
multi
Artical Number
6402250240____053_dascheck_l3_page-1---notset
Name
ZF REMAN Principes relatifs au processus de Logistique inversée et au conditionnement
Doc Type
brochure
Locale
fr
Artical Number
zf_reman_core_return_guidelines
Name
WABCO Catalogue de Produits
Doc Type
catalog
Locale
fr
Artical Number
wabco_product-catalogue
Name
Actionneurs et Freins à disques WABCO pour Remorque
Doc Type
flyer
Locale
fr
Artical Number
brake-parts_trailer
Name
PAN 22 Mechanische Gleitsattel-Scheibenbremse – Reparatur- und Wartungsanleitung
Doc Type
maintenance_instruction
Locale
de
Artical Number
81500663
Name
Concept de pièces de rechange pour freins à disque pour remorque
Doc Type
market_information
Locale
fr
Artical Number
10140
Name
Etrier de frein PAN™ reconditionne
Doc Type
market_information
Locale
fr
Artical Number
18100

Service et réparation

Liste de pièces
1 BRAKE SHOE 2 12999796
3 bush 3 12999796
4 Bas de l'étrier 1 12999796
5 Vis à Tête Hexagonale 1 12999796
6 Frein a disque PAN 22-1 1 6402250260
6 Etrier 1
7 Bourrage 2 12999738VT  12227001
8 Douille 3 12999738VT
9 Boulon 1 12999738VT
10 Cheese Head Screw, full thread 1 12999738VT
11 Revêtement 1 12999738VT
12 Revêtement 1 12999738VT
13 Cheese Head Screw, full thread 1 12999738VT
14 Boulon 1 12999738VT
15 Gaine 1 6401759202
16 Bourrage 1 6401759202  13227166
17 Fiche 1 6401759202
18 Disque de pression 1 6402259262
