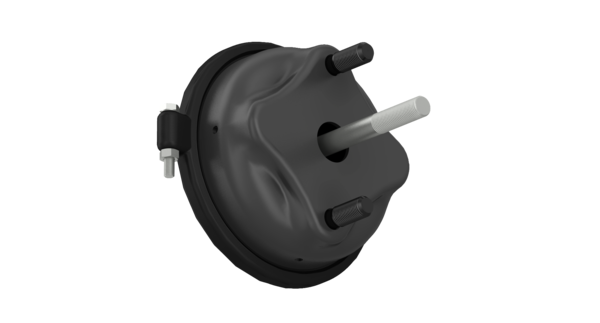

Brake Chamber (Cam Brakes)

Vehicle application (India): Volvo
Brake Chamber (Cam Brakes)
Brake Chamber (Cam Brakes)
Brake Chamber (Cam Brakes)
Brake Chamber (Cam Brakes)
Brake Chamber (Cam Brakes)
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
4231062020
Gross Unit Price: 0.00
Create an account
You must be logged-in to make a purchase.
Don't have an account yet?
Please register.
Vehicle application (India): Volvo

Features and Benefits

  • Brand
    WABCO
  • Part type
    Premium original quality
  • Bolt lengths
    38.0 mm
  • Bolt threads
    M16 x 1.5
  • Calculated Volume (dm³)
    6.998
  • Clamp band
    186 mm
  • Clamp band position
    90°
  • Distance between bolts
    120.6 mm
  • Max. operating pressure
    10.2 bar
  • Operating pressure
    10.2 bar
  • Output force
    8200 N
  • Output force m
    8200 N
  • Port (side)
    M16 x 1.5 JED-464-0
  • Port (top)
    M16 x 1.5 JED-464-0
  • Port angle
    0°
  • Port threads
    M16 x 1.5
  • Product category
    Device
  • Push-rod length
    117 mm
  • Push-rod thread
    M16 x 1.5
  • Return-spring force
    200 N
  • Stroke
    65.0 mm
  • Technical specification
    OE specification
  • Temperature range
    -40°C to +80°C
  • Total length
    115.0 mm
  • Type
    24
  • Type of operation
    Cam
  • Version
    Without boot
  • Yoke
    Without
  • GTIN
    04057875163732
  • Size (mm x mm x mm)
    191 x 177 x 207
  • UPC
    193133247166
  • Weight (kg)
    3.592
  • Weight (lb)
    7.919
Replaces
  • ALEXANDER DENNIS
    AB4231062020
  • SCANIA
    1331430
  • SCANIA
    118473
  • SCANIA
    331430
  • VOLVO
    70306611
Documents
Name
outline drawing (doc 005)
Doc Type
drawing
Locale
multi
Artical Number
4231062020_-_605_a_01
Name
WABCO Product Catalogue
Doc Type
catalog
Locale
en
Artical Number
wabco_product-catalogue

Service & Repair

List of Spare Parts
1 Cylinder 1
2 Clamp Ring 24 1 4231063504
3 Hexagon Head Screw ISO4017-M8x50 1 8101263284
4 Hexagon Nut DIN934-M8 1 8103041114
5 Diaphragm 1 8971205354
6 Piston 1
7 Conical compression spring 1
8 Flange 1 4231066064
9 Plain Washer 1 8950930054
10 Cylinder cover 1
