Truck and Bus
Air Brake Systems
Trailer
Off-Highway

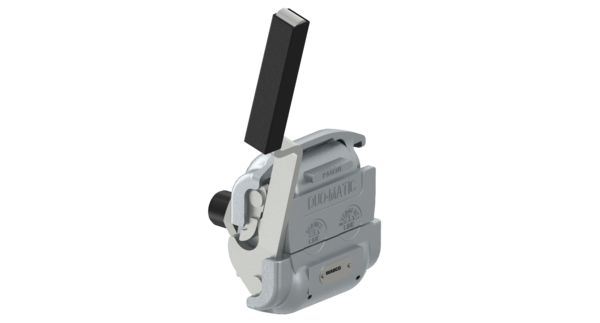

Duomatic
Vehicle application (India): Ashok Leyland
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
4528020090
Gross Unit Price:
0.00
Vehicle application (India): Ashok Leyland
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
ApplicationTowing vehicle
-
Calculated Volume (dm³)1.8977
-
CommentsWith german ABE certificate
-
Max. operating pressure10.0 bar
-
Mounting452 802 100 4
-
Port thread 1M16 x 1.5
-
Port thread 4M22 x 1.5
-
Port threadsM16 x 1.5
-
Product categoryDevice
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
TypeTowing vehicle / drawbar trailer
-
VersionWith lever
-
GTIN04057875207511
-
Size (mm x mm x mm)227 x 88 x 95
-
UPC193133441977
-
Weight (kg)1.127
-
Weight (lb)2.4846
Replaces
-
DAF1325341
-
DAF1504952
-
DOLL8143161
-
EVOBUS82855630000
-
EVOBUSA0004294530
-
EVOBUSA0004200258
-
EVOBUS8285563000
-
EVOBUS8285384000
-
FAYMONVILLE5054
-
FELDBINDER070045
-
GREAT DANE2S4528020090
-
IVECO41285154
-
KALMAR IRION1718010327
-
KALMAR IRION9217460001
-
KEMPF2113022
-
KOMATSU41616940
-
KRONE5009454121
-
KRONE500945412
-
KRONE945412
-
KÄSSBOHRER21151199017
-
KÖGEL76624
-
LANGENDORF1110972
-
LOHRL60090012
-
MAFI0005670022
-
MAN81512206120
-
MANZG045790002
-
MERCEDES-BENZ0004294530
-
MERCEDES-BENZA0004294530
-
MERCEDES-BENZA0004200258
-
MERITORS4528020090
-
NEOPLAN81512206120
-
NOOTEBOOM307023
-
NOOTEBOOM05658
-
ORTHAUS462010
-
PACCAR1325341
-
RENAULT5010458510
-
SCANIA1912326
-
SCANIA1853175
-
SCANIA373397
-
SCHMITZ CARGOBULL051428
-
SCHMITZ CARGOBULL51428
-
SCHMITZ CARGOBULLINS0240008
-
SCHWARZMÜLLER24249
-
SOLARIS1102219250
-
TEREX41616940
-
TIRSAN21151199017
-
VAN HOOL10562979
-
VAN HOOL10519611
-
VOLVOWA4528020090
-
VOLVO6213539
Doc Type
drawing
Locale
multi
Artical Number
4528020090____005_dascheck_g8_page-1---notset
Doc Type
catalog
Locale
en
Artical Number
81500343
Doc Type
catalog
Locale
en
Artical Number
81500823
Service & Repair
List of Spare Parts

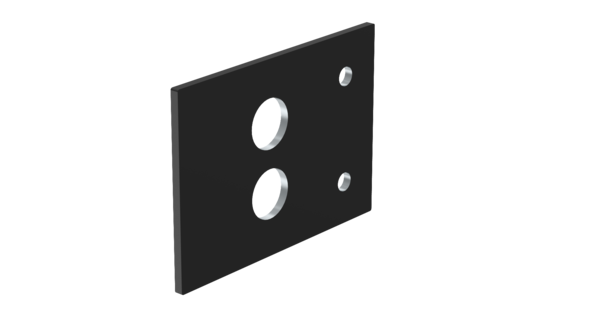

| 1 | Base Plate | 1 | ||
| 2 | Valve cap | 2 | ||
| 3 | Washer | 2 | 8951107504 | |
| 4 | Lock Nut DIN80705-M22x1,5 | 2 | 8915004544 | |
| 5 | Cylindrical compression spring | 2 | 4528020032 | |
| 6 | Spring guide | 2 | 4528020032 | |
| 7 | CUP SEAL | 2 | 4528020032 | |
| 8 | Cap | 2 | 4528020032 | |
| 9 | Retaining ring DIN472-28x1,2 | 2 | 4528020032 | |
| 10 | Valve | 2 | 4528020032 | |
| 11 | Cover | 1 | ||
| 12 | Lever | 1 | ||
| 13 | Axle | 2 | ||
| 14 | Retaining Ring | 2 | ||
| 15 | Torsion spring | 1 | ||
| 16 | Cover | 1 | ||
| 17 | Cylindrical Compression Spring | 1 | ||
| 18 | Holder | 1 |
