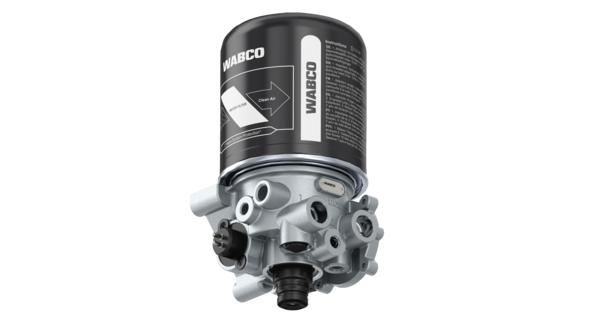

Air Dryer (Single Cannister)
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
4324210120
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Calculated Volume (dm³)5.488
-
Cartridge typeDesiccant Cartrige
-
CommentsTurbo-cut-off valve installed
-
Cut-out pressure10 bar
-
ExhaustNo (432 407 012 0 retrofittable)
-
Heater894 260 040 2
-
Heating connectionKostal M27 x 1
-
Max. operating pressure10.0 bar
-
Opening pressure12.00 bar
-
Operational range0.7 bar
-
Port thread 1M22 x 1.5
-
Port thread 21M22 x 1.5
-
Port thread 22M12 x 1.5
-
Port thread 4/231/4" - 18 NPTF
-
Product categoryDevice
-
SilencerNo (432 407 012 0 retrofittable)
-
Technical specificationOE specification
-
Temperature range-40°C to +65°C
-
UnloaderNo
-
Voltage24 V
-
GTIN04057875172666
-
Size (mm x mm x mm)280 x 140 x 140
-
UPC193133437376
-
Weight (kg)3.99
-
Weight (lb)8.7964
Replaces
-
ALEXANDER DENNIS658558
-
MACK6300-4324210120
-
VOLVOWAB4324210120
Doc Type
drawing
Locale
multi
Artical Number
4324210120____005_dascheck_e3_page-1---notset
Doc Type
maintenance_instruction
Locale
en
Artical Number
mm34
Service & Repair
List of Spare Parts
| 1 | Body | 1 | ||
| 2 | O-Ring ISO3601-14x3 | 1 | 4324100052 4324130752 | 8970815614 |
| 3 | O-Ring ISO3601-40,95x2,62 | 2 | 4324100052 4324130752 | 8977860304 |
| 4 | Valve head | 1 | 4324100052 4324130752 | 4324102504 |
| 5 | Valve | 1 | 4324100052 4324130752 | 8995062604 |
| 6 | Piston | 1 | 4324130752 | 4324106224 |
| 7 | Washer | 3 | 4324130752 | 8951052734 |
| 8 | Washer | 2 | 4324130752 | 8951090604 |
| 9 | Cylindrical Compression Spring | 1 | 4324130752 | 8965144204 |
| 10 | Retaining ring DIN472-47x1,75 | 1 | 4324130752 | 8105180544 |
| 11 | Valve Washer | 1 | 8970179604 | |
| 12 | Cap | 1 | ||
| 13 | Bottom | 1 | 4324105524 | |
| 14 | Blind rivet DIN7337-3,2x10 | 1 | ||
| 15 | O-Ring ISO3601-33x5 | 1 | 8977887204 | |
| 16 | Air Dryer Cartridge, compressed-air system | 1 | 4324100202 | |
| 17 | Cylindrical Compression Spring | 1 | 8965144304 | |
| 19 | Plunger | 1 | 4324100052 | 9753037724 |
| 19 | Valve | 1 | 4324100052 | 8995068992 |
| 20 | Cap | 1 | 4324100052 | 8950725604 |
| 21 | Cup Seal | 1 | 4324100052 | 8971816604 |
| 22 | Cap | 1 | 4324100052 | |
| 23 | Retaining washer DIN6799-4 | 1 | 4324100052 | 8105190274 |
| 24 | Cover | 1 | 4324100052 | 8950725404 |
| 25 | Cylindrical Compression Spring | 1 | 8965176084 | |
| 26 | Cover | 1 | ||
| 27 | Cover | 1 | 4324106534 | |
| 28 | Fillister head screw ISO7045-M6x25 | 4 | 8912015704 | |
| 29 | Hex socket set screw DIN914-M6x25 | 1 | 4324100052 | |
| 30 | O-Ring ISO3601-19,2x3 | 2 | 4324139342 | 8970800104 |
| 31 | Valve body | 1 | 4324139342 | |
| 32 | Cylindrical compression spring | 1 | 4324139342 | |
| 33 | Cover | 1 | 4324139342 | |
| 34 | Protection Cap | 1 | 4324139342 | 8977533604 |
| 35 | Retaining Ring | 1 | 4324139342 | |
| 36 | Support | 1 | 4324100052 4324209202 | 4324083504 |
| 37 | Tapping screw ISO7049-B2,9x6,5 | 1 | 4324209202 | |
| 38 | O-Ring ISO3601-36x2,5 | 1 | 4324209202 | 8977829104 |
| 39 | Kit: Switch | 1 | 4324209202 | 8940409402 |
| 40 | Heater 24V | 1 | 4324209202 | |
| 41 | PLUG BODY | 1 | 4324209202 | |
| 42 | Screw | 2 | 4324209202 |
