ALB relä Mekanisk
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
4757100060
Brutto pris:
980.00
Funktioner och Fördelar
-
MärkeWABCO
-
Teknisk SpecifikationOE Specifikation
-
ProduktkategoriEnhet
-
Avstånd mellan bultar84x84 mm
-
Beräknad volym (dm³)3.2334
-
Bromspunkt0.3 bar
-
KodMechanical
-
Kontrollslag0° to +60°
-
Max. arbetstryck10.0 bar
-
Montering4x M8
-
Portgänga 1M22 x 1.5
-
Portgänga 2M16 x 1.5
-
Portgänga 4M16 x 1.5
-
Regleringsförhållande1:8
-
StyrtryckMax 10 bar
-
Temperaturområde-40°C to +80°C
-
Totalt slag-30° to +110°
-
Typ av artikelPremium Original Kvalitet
-
Typ av driftReläventil
-
UtloppM22 x 1.5
-
GTIN04057875223986
-
Size (mm x mm x mm)212 x 123 x 124
-
UPC193133260103
-
Vikt (kg)1.648
-
Vikt (lb)3.6332
Ersättare
-
DAF1518120
-
VOLVO1607836
Doc Type
brochure
Locale
de
Artical Number
4757109503
Service & Reparation

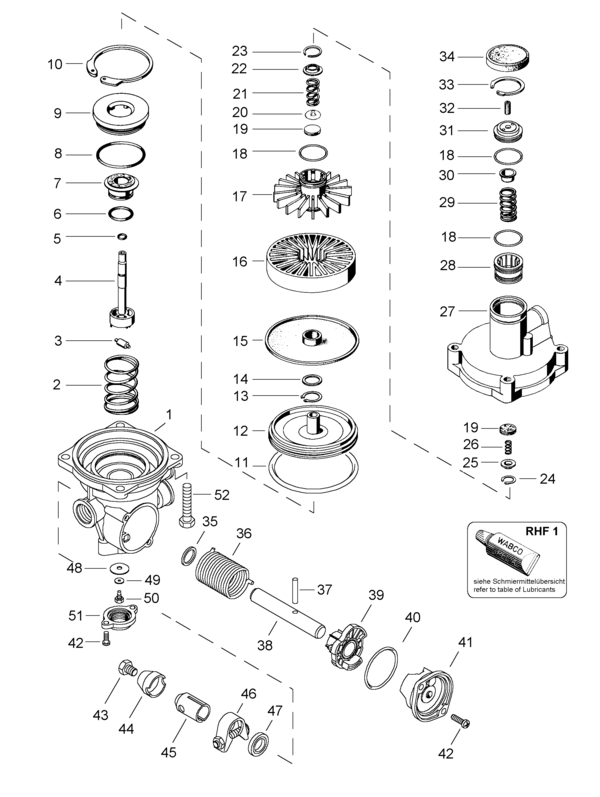

Lista över reservdelar
| 1 | Husunderdel | 1 | ||
| 2 | Cylindrical compression spring | 1 | ||
| 3 | Roller | 1 | 4757101304 | |
| 4 | Lyftare | 1 | 4757107704 | |
| 5 | O-ring ISO3601-4,3x2,4 | 1 | 4757100012 | 8970803004 |
| 6 | O-Ring ISO3601-18,3x2,4 | 1 | 4757100012 | 8970805304 |
| 7 | Ventil | 1 | 4757100012 | 8995058422 |
| 8 | O-Ring ISO3601-49,50x3 | 1 | 4757100012 | 8977726264 |
| 9 | Ventilsäte | 1 | 4757101434 | |
| 10 | Retaining ring DIN472-JV55x2 | 1 | ||
| 11 | O-Ring ISO3601-84x3 | 1 | 4757100012 | 8970704904 |
| 12 | Kolv | 1 | 4757106284 | |
| 13 | Retaining ring DIN471-A17x1 | 1 | 4757100012 | |
| 14 | Ring | 1 | ||
| 15 | Diaphragm 500 | 1 | 4757100012 | |
| 16 | Iläggningsring | 1 | ||
| 17 | Kolv | 1 | ||
| 18 | O-Ring ISO3601-27,3x2,4 | 3 | 4757100012 | 8970803704 |
| 19 | Ventil | 2 | 4757100012 | 8995058304 |
| 20 | Hätta | 1 | ||
| 21 | Cylindrical compression spring | 1 | ||
| 22 | Hätta | 1 | 4757100012 | 4757100424 |
| 23 | Retaining Ring DIN472-20x1 | 1 | 4757100012 | 8105180124 |
| 24 | Retaining ring DIN472-17x1 | 1 | 4757100012 | |
| 25 | Hätta | 1 | ||
| 26 | Cylindrical compression spring | 1 | 4757100012 | |
| 27 | Husöverdel | 1 | 4757100174 | |
| 28 | Kolv | 1 | ||
| 29 | Cylindrical compression spring | 1 | 8965155104 | |
| 30 | Hätta | 1 | ||
| 31 | Kolv | 1 | 4757106274 | |
| 32 | Hex socket set screw DIN914-M5x12 | 1 | ||
| 33 | Retaining ring DIN472-33x1,2 | 1 | ||
| 34 | Protection Cap | 1 | 8980113504 | |
| 35 | Bricka | 1 | 4757100012 | |
| 36 | Torsionsfjäder | 1 | 8962091364 | |
| 37 | Grooved pin DIN1473-4x24 | 1 | 8105050634 | |
| 38 | Axel | 1 | 4757106904 | |
| 39 | Excenter | 1 | ||
| 40 | O-Ring ISO3601-47,29x2,62 | 1 | 4757100012 | 8977868404 |
| 41 | Huv etc. | 1 | ||
| 42 | Fillister head screw ISO7045-M6x14 | 4 | 8912116404 | |
| 43 | Hexagon head screw ISO4017-M8x14 | 1 | ||
| 44 | Hätta | 1 | 8950712314 | |
| 45 | Hätta | 1 | 4757100414 | |
| 46 | Klammer | 1 | ||
| 47 | Radial Seal | 1 | 4757100012 | 8972080114 |
| 48 | Valve Washer | 1 | 4757100012 | 8970179604 |
| 49 | Bricka | 1 | ||
| 50 | Rörnit | 1 | 4757100012 | |
| 51 | Fläns | 1 | 9730026034 | |
| 52 | Hexagon head screw ISO4017-M8x55 | 4 | 8101260714 |
