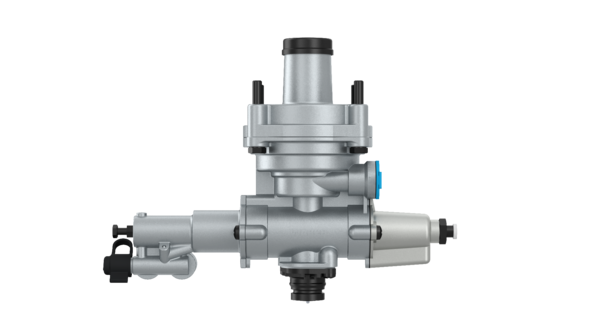

ALB - Lastkännande reläventil
Vehicle application (India): MAN
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
4757110390
Brutto pris:
1412.00
Vehicle application (India): MAN
Funktioner och Fördelar
-
MärkeWABCO
-
Teknisk SpecifikationOE Specifikation
-
ProduktkategoriEnhet
-
Avstånd mellan bultar84x84 mm
-
Beräknad volym (dm³)8.286
-
Bromspunkt0.8 bar
-
Justeringsområde0.8 to 5.2 bar
-
KodPneumatic
-
KommentarerLike 4757110190 but with port 3 with snap-on contour
-
Max. arbetstryck13.0 bar
-
Montering4x M8
-
Portgänga 1M22 x 1.5
-
Portgänga 2M16 x 1.5
-
Portgänga 4M16 x 1.5
-
Regleringsförhållande1:8
-
Temperaturområde-40°C to +80°C
-
Typ av artikelPremium Original Kvalitet
-
Typ av driftDynamic
-
UtloppSnap on contour JED - 463
-
GTIN04057875224990
-
Size (mm x mm x mm)301 x 222 x 124
-
UPC193133314103
-
Vikt (kg)1.927
-
Vikt (lb)4.2483
Ersättare
-
ALEXANDER DENNISAB4757110390
-
VOLVO3031392
-
VOLVO3031393
Doc Type
drawing
Locale
multi
Artical Number
4757111050_-_653_a_01
Service & Reparation
Lista över reservdelar
| 1 | Husunderdel | 1 | ||
| 2 | Slotted shouder screw | 1 | ||
| 3 | O-Ring ISO3601-27,3x2,4 | 1 | 4757110002 | 8970803704 |
| 4 | Venting Guide | 1 | 9730022222 | |
| 5 | Fillister head screw ISO7045-M6x14 | 6 | 8912116404 | |
| 6 | Hexagon head screw ISO4017-M8x55 | 4 | 8101260714 | |
| 7 | kam | 1 | 4757110804 | |
| 8 | Spännanordning | 1 | 8953703704 | |
| 9 | Cylindrical compression spring | 1 | 8965123614 | |
| 10 | Rörledning | 1 | ||
| 11 | Tätning | 1 | 4757110002 | 4757111404 |
| 12 | Huv etc. | 1 | 4757116534 | |
| 13 | Hexagon thin nut DIN439-2-BM12 | 1 | ||
| 14 | banjobult | 1 | 8913008814 | |
| 15 | Skyddlock | 1 | 4757110002 | 8980121594 |
| 16 | Sealing | 1 | 4757110002 | 8970950204 |
| 17 | Kolv | 1 | 4757116214 | |
| 18 | O-Ring ISO3601-15x3 | 1 | 4757110002 | 8970811604 |
| 19 | Cylinder | 1 | ||
| 20 | Cylindrical compression spring | 1 | 4757110002 | 8965140104 |
| 21 | O-Ring ISO3601-5,3x2,4 | 4 | 4757110002 | 8970800804 |
| 22 | Glidstycke | 1 | 4757118014 | |
| 23 | Snap ring DIN7993-B10 | 1 | 4757110002 | 8105420094 |
| 24 | Protection Cap | 1 | 8977539404 | |
| 25 | Cylindrical compression spring | 1 | ||
| 26 | Roller | 1 | 4757101304 | |
| 27 | Lyftare | 1 | 4757107704 | |
| 28 | O-ring ISO3601-4,3x2,4 | 1 | 4757110002 | 8970803004 |
| 29 | O-Ring ISO3601-18,3x2,4 | 1 | 4757110002 | 8970805304 |
| 30 | Ventil | 1 | 4757110002 | 8995058422 |
| 31 | O-Ring ISO3601-49,50x3 | 1 | 4757110002 | 8977726264 |
| 32 | Ventilsäte | 1 | 4757101434 | |
| 33 | Retaining ring DIN472-JV55x2 | 1 | ||
| 34 | O-Ring ISO3601-84x3 | 1 | 4757110002 | 8970704904 |
| 35 | Kolv | 1 | 4757106284 | |
| 36 | Retaining ring DIN471-A17x1 | 1 | 4757110002 | |
| 37 | Ring | 1 | ||
| 38 | Diaphragm 500 | 1 | 4757110002 | |
| 39 | Iläggningsring | 1 | ||
| 40 | Kolv | 1 | ||
| 41 | Ventil | 2 | 4757110002 | 8995058304 |
| 42 | Hätta | 1 | ||
| 43 | Cylindrical compression spring | 1 | ||
| 44 | Hätta | 1 | 4757110002 | 4757100424 |
| 45 | Retaining Ring DIN472-20x1 | 1 | 4757110002 | 8105180124 |
| 46 | Retaining ring DIN472-17x1 | 1 | 4757110002 | |
| 47 | Hätta | 1 | ||
| 48 | Cylindrical compression spring | 1 | 4757110002 | |
| 49 | Husöverdel | 1 | 4757100174 | |
| 50 | Kolv | 1 | ||
| 51 | Cylindrical compression spring | 1 | 8965116904 | |
| 52 | Hätta | 1 | ||
| 53 | Kolv | 1 | 4757106274 | |
| 54 | Hex socket set screw DIN914-M5x12 | 1 | ||
| 55 | Retaining ring DIN472-33x1,2 | 1 | ||
| 56 | Protection Cap | 1 | 8980113504 |
