Automatic Load Sensing Valve
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
4757120040
Gross Unit Price:
970.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Actuation angle-45° to 30°
-
Calculated Volume (dm³)5.977
-

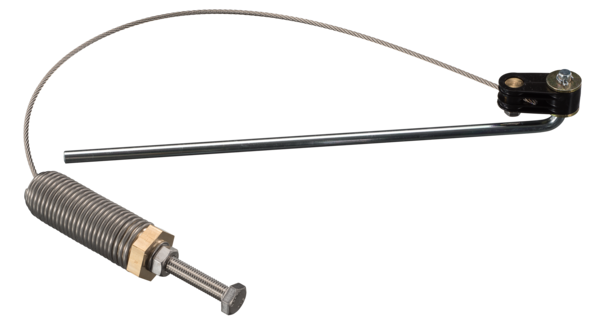

CommentsWith lever and tension spring (range of adjustment: 10mm to 20mm). REV included
-
Distance between bolts84x84 mm
-
Important informationIf you need to calibrate this Load Sensing Valve, please use our LSV-Calculator (Click here )
-
Max. operating pressure10.0 bar
-
Mounting4x M8
-
Port thread 1M16 x 1.5
-
Port thread 1-2M22 x 1.5
-
Port thread 22x M22x1.5, 4x M16x1.5
-
Port thread 3Flap exhaust
-
Product categoryDevice
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
TypeMechanical
-
VersionWith Integrated Emergency Valve
-
GTIN04057875225768
-
Size (mm x mm x mm)313 x 154 x 124
-
UPC193133315025
-
Weight (kg)2.571
-
Weight (lb)5.6681
Replaces
-
DAF1518127
-
OTOKARAIF0662
-
SCANIA2090015
Doc Type
catalog
Locale
en
Artical Number
81500343
Service & Repair
List of Spare Parts
| 1 | Body Lower part | 1 | ||
| 2 | Valve Washer | 1 | 4757120002 | 8970179604 |
| 3 | Washer | 1 | 4757120002 | |
| 4 | Tubular rivet | 1 | 4757120002 | |
| 5 | Bronze Bushing | 1 | 4757120002 | 8997608104 |
| 6 | Shaft Pedal | 1 | 4757106904 | |
| 7 | Grooved pin DIN1473-4x24 | 1 | 8105050634 | |
| 8 | Torsion spring | 1 | 8962091354 | |
| 9 | Eccentric/cam | 1 | 4757100824 | |
| 10 | O-Ring ISO3601-47,29x2,62 | 1 | 4757120002 | 8977868404 |
| 11 | Cover | 1 | ||
| 12 | Fillister head screw ISO7045-M6x14 | 2 | 8912116404 | |
| 13 | Attachment link | 1 | ||
| 14 | Washer DIN125-1-6,4x12,5x1,6 | 1 | 8104010094 | |
| 15 | Hexagon head screw ISO4017-M6x12 | 1 | ||
| 16 | Radial Seal | 1 | 4757120002 | 8972080114 |
| 17 | Clamping device | 1 | ||
| 18 | Round head screw DIN607-M8x40 | 1 | ||
| 19 | Hexagon nut DIN6924-M8 | 1 | ||
| 20 | Cap | 1 | 4757100414 | |
| 21 | Actuating lever | 1 | 4757137102 | |
| 22 | Cap | 1 | 4757120002 | 8950712314 |
| 23 | Hexagon head screw ISO4017-M8x10 | 1 | 8101260554 | |
| 24 | Roller | 1 | 4757120002 | 4757101304 |
| 25 | Rod/Stem | 1 | 4757120002 | 4757127704 |
| 26 | O-Ring ISO3601-4,3x2,4 | 1 | 8970803004 | |
| 27 | Back-up ring | 1 | ||
| 28 | Grooved lip seal | 1 | 8971521504 | |
| 29 | O-Ring ISO3601-45,69x2,62 | 1 | 8970862104 | |
| 30 | Piston | 1 | 4757120002 | |
| 31 | O-Ring ISO3601-18,3x2,4 | 1 | 4757120002 | 8970805304 |
| 32 | Cylindrical compression spring | 1 | 4757120002 | |
| 33 | Valve | 1 | 4757120002 | 8995058412 |
| 34 | O-Ring ISO3601-44x2 | 1 | 8970823704 | |
| 35 | Valve seat | 1 | 4757120002 | |
| 36 | Retaining ring DIN 472 - 50x2 | 1 | 4757120002 | |
| 37 | O-Ring ISO3601-36x2,5 | 1 | 4757120002 | 8970829104 |
| 38 | O-Ring ISO3601-62x2 | 1 | 4757120002 | |
| 39 | Cover | 1 | ||
| 40 | Retaining ring DIN472-67x2,5 | 1 | ||
| 41 | O-Ring ISO3601-84x3 | 1 | 4757120002 | 8970704904 |
| 42 | Piston | 1 | 4757120002 | 4757106224 |
| 43 | Retaining ring DIN471-A17x1 | 1 | ||
| 44 | Ring | 1 | ||
| 45 | Diaphragm 500 | 1 | 4757120002 | |
| 46 | Washer | 1 | 8970455104 | |
| 47 | Piston | 1 | 4757120002 | |
| 48 | Inlet ring | 1 | ||
| 49 | O-Ring ISO3601-27,3x2,4 | 3 | 4757120002 | 8970803704 |
| 50 | Valve | 2 | 4757120002 | 8995058304 |
| 51 | Cap | 1 | ||
| 52 | Cylindrical compression spring | 1 | ||
| 53 | Cap | 1 | 4757120002 | 4757100424 |
| 54 | Retaining Ring DIN472-20x1 | 1 | 4757120002 | 8105180124 |
| 55 | Retaining ring DIN472-17x1 | 1 | ||
| 56 | Cap | 1 | ||
| 57 | Cylindrical compression spring | 1 | 4757120002 | |
| 58 | Body Upper part | 1 | 4757120002 | 4757100174 |
| 59 | Piston | 1 | 4757120002 | |
| 60 | Cylindrical compression spring | 1 | 8965116904 | |
| 61 | Cap | 1 | 4757120002 | |
| 62 | Piston | 1 | 4757106274 | |
| 63 | Hex socket set screw DIN914-M5x12 | 1 | ||
| 64 | Retaining ring DIN472-33x1,2 | 1 | ||
| 65 | Protection Cap | 1 | 8980113504 | |
| 66 | Hexagon head screw ISO4017-M8x55 | 4 | 8101260714 |
