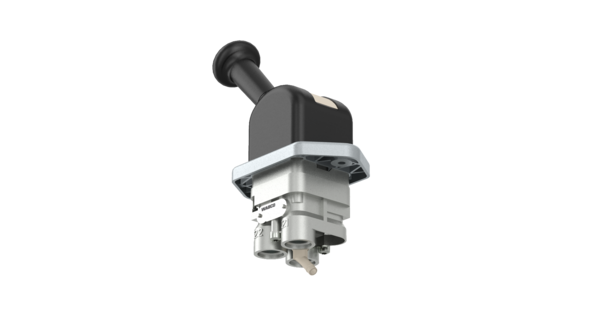

Hand Brake Valve, Parking + add. Valve
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
9617231430
Gross Unit Price:
91.40
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Actuation angle73°
-
Calculated Volume (dm³)1.729
-
ColorBlack/Black
-
Distance between holes80 mm
-
ExhaustHose Nozzle Ø 6 mm
-
Max. operating pressure10.0 bar
-
Mounting2x M6
-
Port thread 1M16 x 1.5 JED - 388
-
Port thread 21M16 x 1.5 JED - 388
-
Port thread 22M16 x 1.5 JED - 388
-
Product categoryDevice
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
GTIN04057875297475
-
Size (mm x mm x mm)190 x 140 x 65
-
UPC193133370604
-
Weight (kg)0.645
-
Weight (lb)1.422
Replaces
-
BEIBEN518 430 00 81
-
BYD11245897-00
-
CAMC3517FHY-010
-
DONGFENG (DFM)9617231430
-
FOTON1612935300005
-
FOTON1417035380004
-
JAC59720-Y43G6
-
SHAANXIDZ93189360061
-
SINOTRUK (CNHTC)WG9000360522/1
-
SINOTRUK (CNHTC)WG90003605222
-
SINOTRUK (CNHTC)AZ87352600100
-
SINOTRUK (CNHTC)WG9000360522/2
-
SUNWINSWB563050140
Doc Type
drawing
Locale
multi
Artical Number
9617231430____005_dascheck_-8_page-1---surmacz
Doc Type
service_information
Locale
en
Artical Number
service-information_hbv_961723xxxx_961724xxxx
Service & Repair

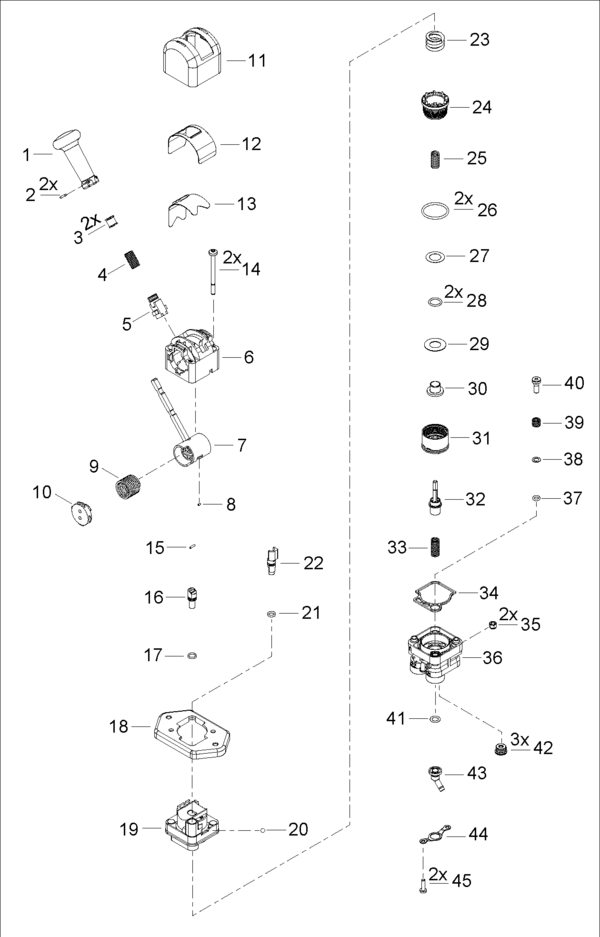

List of Spare Parts
| 1 | Hand Gripp | 1 | 9617227942 | |
| 1 | Kit: Protection Hood + Handle | 1 | 9617239312 | |
| 2 | Needle Roller DIN5402-2,18x14,3 | 2 | 8954100204 | |
| 2 | Kit: Protection Hood + Handle | 2 | 9617239312 | |
| 3 | Kit: Protection Hood + Handle | 2 | 9617239312 | |
| 3 | Ring | 2 | ||
| 4 | Cylindrical compression spring | 1 | ||
| 4 | Kit: Protection Hood + Handle | 1 | 9617239312 | |
| 5 | Kit: Protection Hood + Handle | 1 | 9617239312 | |
| 5 | Stop | 1 | 9617236112 | |
| 6 | Body Upper part | 1 | 9617230134 | |
| 7 | Cam | 1 | ||
| 8 | Needle | 1 | 8951217514 | |
| 9 | Torsion spring | 1 | 8962010714 | |
| 10 | Bracket | 1 | 9617233504 | |
| 11 | Protection Hood | 1 | 9617234504 | |
| 11 | Kit: Protection Hood + Handle | 1 | 9617239312 | |
| 12 | Bonnet | 1 | 9617234514 | |
| 12 | Kit: Protection Hood + Handle | 1 | 9617239312 | |
| 13 | Bonnet | 1 | 9617234524 | |
| 13 | Kit: Protection Hood + Handle | 1 | 9617239312 | |
| 14 | Fillister Head Screw | 2 | ||
| 15 | Kit: Valve | 1 | 9617239202 | |
| 15 | Needle roller DIN5402-2x7,8 | 1 | ||
| 16 | Kit: Valve | 1 | 9617239202 | |
| 16 | Push Rod | 1 | 9617237304 | |
| 17 | O-Ring ISO3601-8x1,5 | 1 | ||
| 17 | Kit: Valve | 1 | 9617239202 | |
| 18 | Fixation plate | 1 | ||
| 19 | Body Upper part | 1 | ||
| 20 | Ball ISO3290-4.762 | 1 | ||
| 21 | O-Ring ISO3601-6,4x1,9 | 1 | ||
| 22 | Valve piston | 1 | ||
| 23 | Kit: Valve | 1 | 9617239202 | |
| 23 | Cylindrical compression spring | 1 | ||
| 24 | Kit: Valve | 1 | 9617239202 | |
| 24 | Higher Cartridge | 1 | 9617232024 | |
| 25 | Kit: Valve | 1 | 9617239202 | |
| 25 | Cylindrical compression spring | 1 | ||
| 26 | Kit: Valve | 2 | 9617239202 | |
| 26 | O-Ring ISO3601-28x2,5 | 2 | ||
| 27 | Washer | 1 | ||
| 27 | Kit: Valve | 1 | 9617239202 | |
| 28 | O-Ring ISO3601-12x2 | 2 | 8970700704 | |
| 28 | Kit: Valve | 2 | 9617239202 | |
| 29 | Kit: Valve | 1 | 9617239202 | |
| 29 | Washer | 1 | ||
| 30 | Kit: Valve | 1 | 9617239202 | |
| 30 | Valve | 1 | ||
| 31 | Kit: Valve | 1 | 9617239202 | |
| 31 | Lower Cartridge | 1 | 9617232014 | |
| 32 | Kit: Valve | 1 | 9617239202 | |
| 32 | Piston | 1 | 9617236204 | |
| 33 | Cylindrical compression spring | 1 | ||
| 34 | Gasket | 1 | ||
| 35 | Self locking hexagon nut DIN982-M5x6,3 | 2 | ||
| 36 | Body | 1 | ||
| 37 | O-Ring ISO3601-5,7x1,9 | 1 | ||
| 38 | Washer | 1 | ||
| 39 | Cylindrical compression spring | 1 | ||
| 40 | Valve | 1 | ||
| 41 | O-Ring ISO3601-8,9x1,9 | 1 | 8970866704 | |
| 42 | Insert | 3 | ||
| 43 | Exhaust Pipe | 1 | 9617232204 | |
| 44 | Retaining plate | 1 | ||
| 45 | Screw (TORX) | 2 |
