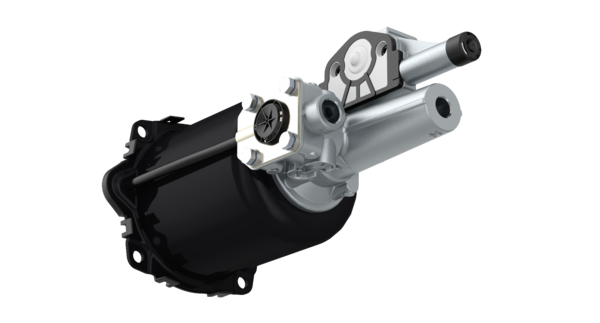

Servo Clutch
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
9700514390
Brutto pris:
872.00
Funktioner och Fördelar
-
MärkeWABCO
-
Teknisk SpecifikationOE Specifikation
-
ProduktkategoriEnhet
-
Avstånd mellan hål130 mm
-
Beräknad volym (dm³)7.067
-
Längd330 mm
-
Max. arbetstryck10.0 bar
-
Montering4x Ø 9.0 mm
-
Portgänga 11M16 x 1.5
-
Portgänga 12M12 x 1.5 JED - 464
-
Portgänga 1–4M14 x 1.5
-
Portgänga 22M12 x 1.5 JED - 464
-
Portgänga 31Flap Exhaust
-
Portgänga 32Ø 8.0 mm
-
Slag25.0 mm
-
Temperaturområde-40°C to +80°C
-
TryckstångsgängaBall Ø 12.0 mm
-
Typ av artikelPremium Original Kvalitet
-
Viktig informationPlease follow the installation instructions of the vehicle manufacturer
-
mellanBrake fluid SAE J 1703
-
GTIN7895851075955
-
Size (mm x mm x mm)410 x 139 x 124
-
UPC193133372974
-
Vikt (kg)2.808
-
Vikt (lb)6.1906
Ersättare
-
FOTON1425316202002
-
FOTON1,42532E+12
-
HINOS31A0E0740
-
KING LONG16WY104010
-
KING LONG16WY1-04010
-
SINOTRUK (CNHTC)WG97192300251
-
YUTONG160400210
-
YUTONG1604-00210
Doc Type
drawing
Locale
multi
Artical Number
9700514390____005_dascheck_c7_page-1---notset
Service & Reparation
Lista över reservdelar
| 1 | Hydraulic Body | 1 | ||
| 2 | Fjäderbricka | 1 | 9700519842 | |
| 3 | Spårtätningsring | 1 | 9700519842 | |
| 4 | Stickkontakt | 1 | 9709010414 | |
| 5 | O-Ring ISO3601-18x2 | 1 | 9700519842 | 8970815204 |
| 6 | Patron | 1 | 9700515994 | |
| 7 | Spårtätningsring | 1 | 9700519842 | |
| 8 | Spårtätningsring | 1 | 9700519842 | |
| 9 | Kolv | 1 | 9709036204 | |
| 10 | Ventil | 1 | 9700519842 | |
| 11 | Spårtätningsring | 1 | 9700519842 | |
| 12 | Cylindrical compression spring | 1 | 9700519842 | |
| 13 | Cylindrical compression spring | 1 | 9700519842 | |
| 14 | Ventilstyrning | 1 | ||
| 15 | Skylt | 1 | 9700511074 | |
| 16 | Ventil | 1 | 9700519842 | |
| 17 | Lastkännande släpvagnsbromsventil, Mekanisk fjädring | 1 | 9700519842 | |
| 18 | Hexagon head screw DIN6902-M6x20 | 4 | ||
| 19 | Skyddlock | 1 | 9700519842 | |
| 20 | Bleeder Screw | 1 | 8913505204 | |
| 21 | O-Ring ISO3601-8x2,4 | 1 | 9700519842 | |
| 22 | Spårtätningsring | 1 | 9700519842 9700519602 | |
| 23 | Styrring | 1 | ||
| 24 | Ceramic valve | 1 | 9700519602 | |
| 25 | Fillister head screw | 2 | 9700519602 | |
| 26 | O-Ring ISO3601-59x2,5 | 1 | 9700519842 | |
| 27 | U-Ring | 1 | 9700519842 | |
| 28 | O-Ring ISO3601-33,3x2,4 | 1 | 9700519842 | |
| 29 | Styrning | 1 | 9700519842 | |
| 30 | O-Ring ISO3601-25x5 | 1 | 9700519842 | |
| 31 | Karosseri | 1 | ||
| 32 | Hexagon head screw DIN6902-M6x20 | 4 | ||
| 33 | Rörledning | 1 | ||
| 34 | Cylindrical Compression Spring | 1 | 9700519842 | |
| 35 | Clip of Fork | 1 | 9700519842 | 9700513554 |
| 36 | Adapter | 1 | 9700515914 | |
| 37 | Spårtätningsring | 1 | 9700519842 | |
| 38 | Styrring | 1 | 9700519842 | |
| 39 | Gaffelklämma | 1 | 9700519842 | |
| 40 | O-Ring ISO3601-21,95x1,78 | 1 | 9700519842 | |
| 41 | Kolv | 1 | 9709016312 | |
| 42 | Fästring | 1 | 9700519842 | |
| 43 | Stag / Stång / Stag | 1 | 9709087364 | |
| 44 | Front Plate | 1 | 9700519842 | |
| 45 | Skyddskåpa | 1 | 8977548824 |
