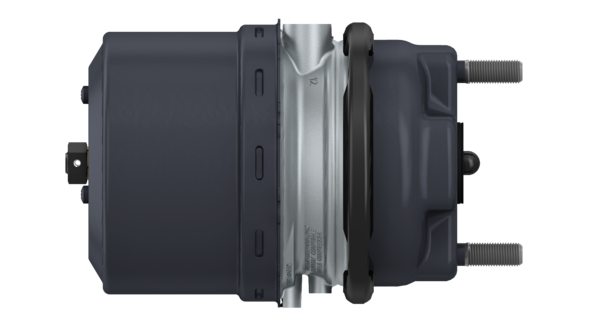

Tristop Brake Actuator 24/24
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
9254810350
MRP:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Calculated Volume (dm³)16.25
-
Technical specificationOE specification
-
GTIN04057876207770
-
Size (mm x mm x mm)387 x 200 x 210
-
UPC193133504177
-
Weight (kg)8.52
-
Weight (lb)18.78
Doc Type
drawing
Locale
multi
Artical Number
9254810390____053_dascheck_c14_page-1---notset
Service & Repair
List of Spare Parts
| 0 | Grooved Lip Seal | 0 | 8971616074 | |
| 1 | Cylinder | 1 | ||
| 2 | Sealing washer | 1 | ||
| 3 | Spring Seat | 1 | 9254612514 | |
| 4 | Fillister Head Screw - M6x9,4 | 3 | ||
| 5 | Barrel Power Spring 24 | 1 | ||
| 7 | Piston | 1 | ||
| 8 | O-Ring ISO3601-15x2 | 1 | 8977702504 | |
| 9 | Thrust washer | 1 | 8930301704 | |
| 10 | Hexagon Nut DIN934-M16x1,5 | 1 | 8103040314 | |
| 11 | Slotted spring pin ISO8748-5x22 | 1 | ||
| 12 | Guide ring | 1 | ||
| 13 | O-Ring ISO3601-155x4,5 | 1 | ||
| 14 | Flange | 1 | ||
| 15 | Diaphragm | 1 | 8971205354 | |
| 16 | Piston | 1 | ||
| 17 | Cover | 1 | 8950726204 | |
| 18 | Barrel Spring | 1 | 8960801724 | |
| 19 | Boot | 1 | 8977548862 | |
| 20 | Non pressure chamber Type 24 | 1 | ||
| 21 | Clamp Ring 24 | 1 | 4231063504 | |
| 22 | Hexagon Head Screw ISO4017-M8x50 | 1 | 8101263284 | |
| 23 | Hexagon Nut DIN934-M8 | 1 | 8103041114 | |
| 24 | Ring | 1 | ||
| 25 | Washer | 1 | 8951112794 | |
| 26 | Pressure piece | 1 | ||
| 27 | Tapping Screw M6x12 | 1 |
