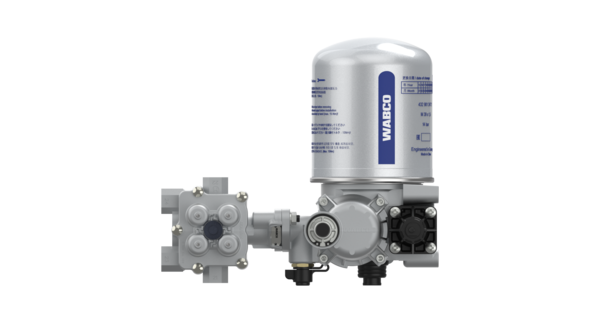

Air Processing Unit
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
9325003800
MRP:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Air dryer4324133700
-
Back flow0.4 bar
-
Calculated Volume (dm³)18.6077
-
Closing pressure dynamic 216.0 bar
-
Closing pressure dynamic 226.0 bar
-
Closing pressure dynamic 236.0 bar
-
Closing pressure dynamic 246.0 bar
-
CommentsNo MCPV pressure sensor
-
Cut-out pressure8.5 bar
-
Heating connectionBayonet DIN 72585-A1-2.1-1-Sn/K2
-
MCPV9347141610
-
Max. operating pressure13.0 bar
-
Opening pressure 216.5 bar
-
Opening pressure 226.5 bar
-
Opening pressure 237.5 bar
-
Opening pressure 246.5 bar
-
Operational range0.7 bar
-
Port thread 1M22 x 1.5
-
Port thread 21M22 x 1.5
-
Port thread 22M22 x 1.5
-
Port thread 23M22 x 1.5
-
Port thread 24M22 x 1.5
-
Port thread 4M16 x 1.5
-
Product categoryDevice
-
SilencerNo (432 407 015 0 retrofittable)
-
Technical specificationOE specification
-
Temperature range-40°C to +65°C
-
Variable nominal flow rate16.00 - 35.00 (L/min)
-
Voltage24 V
-
GTIN04057875319092
-
Size (mm x mm x mm)312 x 210 x 284
-
UPC193133360858
-
Weight (kg)6.18
-
Weight (lb)13.625
Doc Type
drawing
Locale
multi
Artical Number
9325003800____005_dascheck_a6_page-1---notset
Service & Repair
List of Spare Parts
| 1 | Body | 1 | ||
| 2 | Threaded fitting | 1 | ||
| 3 | O-Ring ISO3601-33x5 | 1 | 8977887204 | |
| 4 | Cartridge | 1 | 9325001572 | 4329012472 |
| 5 | O-Ring ISO3601-7,3x2,4 | 1 | 8970800704 | |
| 6 | Valve body | 1 | 8995069834 | |
| 7 | Conical compression spring | 1 | 8960536014 | |
| 8 | Valve seat | 1 | 4324101414 | |
| 9 | O-Ring ISO3601-26,0x3 | 1 | 9325001572 | 8970708404 |
| 10 | Body | 1 | 9325001572 | |
| 11 | O-Ring 24,50x3,00 / CDS 215 70sh | 1 | ||
| 12 | Retainer | 1 | ||
| 13 | Bleedback plug | 1 | ||
| 14 | Stud NULL-M8 | 2 | ||
| 15 | Washer DIN125-1-8,4x16x1,6 | 2 | 9325001572 | 8104010104 |
| 16 | Self locking nut DIN980-VM8 | 2 | 9325001572 | |
| 17 | O-Ring ISO3601-12,5x2 | 1 | ||
| 18 | Spring | 1 | ||
| 19 | O-Ring ISO3601-3,69x1,78 | 1 | ||
| 20 | Double Connector | 1 | ||
| 21 | Valve Piston | 1 | ||
| 22 | Cover | 1 | ||
| 23 | Valve head | 1 | 4324102504 | |
| 24 | Valve | 1 | 8995062604 | |
| 25 | O-Ring ISO3601-14x3 | 1 | 8970815614 | |
| 26 | Piston | 1 | 4324106224 | |
| 27 | Washer | 2 | 8951090604 | |
| 28 | Cylindrical Compression Spring | 1 | 8965144204 | |
| 29 | Washer | 3 | 8951052734 | |
| 30 | O-Ring ISO3601-40,95x2,62 | 2 | 8977860304 | |
| 31 | Bottom | 1 | 4324105564 | |
| 32 | Retaining ring DIN472-47x1,75 | 1 | 8105180544 | |
| 33 | O-Ring ISO3601-22x1,5 | 1 | 8970710504 | |
| 34 | Washer | 1 | ||
| 35 | Diaphragm | 1 | 8971321684 | |
| 36 | Cap | 1 | ||
| 37 | Cylindrical compression spring | 1 | ||
| 38 | O-Ring ISO3601-4,3x2,4 | 1 | 8970803004 | |
| 39 | Filter | 1 | ||
| 40 | Cover | 1 | 4324136514 | |
| 41 | Cheese head screw ISO4762-M6x20 | 4 | ||
| 42 | Valve body | 1 | 9325002352 | |
| 43 | Valve | 1 | 9325002352 | |
| 44 | Cap | 1 | 9325002352 | |
| 45 | Cylindrical Compression Spring | 1 | 9325002352 | 8960419304 |
| 46 | Cap | 1 | 9325002352 | |
| 47 | Cylindrical compression spring | 1 | 9325002352 | |
| 48 | Cap | 1 | 9325002352 | |
| 49 | O-Ring ISO3601-32x2,5 | 1 | 9325002352 | 8977705804 |
| 50 | Guide | 1 | 9325002352 | |
| 51 | Retaining ring DIN472-37x1,5 | 1 | 9325002352 | 8105180254 |
| 52 | Hexagon Nut DIN6923-M6 | 1 | 9325002352 | 8915810004 |
| 53 | Hex socket set screw DIN914-M6x30 | 1 | 9325002352 | |
| 54 | Plug | 1 | 9325002352 | |
| 55 | Cylindrical compression spring | 4 | ||
| 56 | Valve Washer | 1 | ||
| 57 | Valve | 3 | ||
| 58 | Cover | 1 | ||
| 59 | Cover | 3 | ||
| 60 | Diaphragm | 1 | ||
| 61 | Piston | 4 | ||
| 62 | Cylindrical compression spring | 4 | ||
| 63 | Spring guide | 4 | ||
| 64 | Washer | 1 | ||
| 65 | Cover | 1 | ||
| 66 | Diaphragm | 1 | ||
| 67 | Fillister head screw | 1 | ||
| 68 | Grub screw | 4 | ||
| 69 | Screw | 4 | ||
| 70 | Plunger | 1 | 9753037724 | |
| 71 | Valve | 1 | 8995068992 | |
| 72 | Cylindrical Compression Spring | 1 | 8965144304 | |
| 73 | Cap | 1 | 8950725604 | |
| 74 | Cup Seal | 1 | 8971816604 | |
| 75 | Cap | 1 | ||
| 76 | Retaining washer DIN6799-4 | 1 | 8105190274 | |
| 77 | Cover | 1 | 8950725404 | |
| 78 | Cylindrical Compression Spring | 1 | 8965144104 | |
| 79 | Cover | 1 | ||
| 80 | O-Ring ISO3601-13x1 | 1 | 8970708904 | |
| 81 | Adjusting nut | 1 | 9753034304 | |
| 82 | Cover | 1 | 9753036504 | |
| 83 | Fillister head screw ISO7045-M6x25 | 4 | 8912015704 | |
| 84 | Hex Socket Set Screw DIN914-M6x35 | 1 | 8102080164 | |
| 85 | O-Ring ISO3601-36x2,5 | 1 | 8977829104 | |
| 86 | Heating | 1 | ||
| 87 | Screw | 2 | ||
| 88 | Support | 1 | 4324083504 | |
| 89 | Tapping screw ISO7049-B2,9x6,5 | 1 | ||
| 90 | Sealing Ring DIN7603-A16x20 | 1 | 8114010574 | |
| 91 | Screw plug | 1 | 8930117114 | |
| 92 | O-Ring ISO3601-19,2x3 | 2 | 8970800104 | |
| 93 | Valve body | 1 | ||
| 94 | Cylindrical compression spring | 1 | ||
| 95 | Cover | 1 | ||
| 96 | Protection Cap | 1 | 8977533604 | |
| 97 | Retaining Ring | 1 |
