Sušac zraka ( jednokomorni )
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
4324100210
Brutto cijena:
530.00
Features and Benefits
-
MarkaWABCO
-
Vrsta dijelaVrhunska originalna kvaliteta
-
Tehničke karakteristikeSpecifikacije OE
-
Kategorija proizvodaUređaj
-
IzlazSnap-on contour
-
Izračunati volumen (dm³)5.161
-
KomentariAlternative: cut-out pressure needs adjusting
-
Maks. radni tlak13.0 bar
-
Navoj priključka 1M22 x 1.5
-
Navoj priključka 21M22 x 1.5
-
Navoj priključka 22M12 x 1.5
-
Prekid dovoda tlaka9.5 bar
-
Prigušivač zvukaNo (432 407 012 0 retrofittable)
-
Raspon rada0.7+0.5 bar
-
Raspon temperature-40°C to +65°C
-
Tip kartušeDesiccant Cartrige
-
Ventil otkočivanjaYes
-
Dimenzije (MM x MM x MM)253 x 136 x 150
-
GTIN04057875170808
-
Težina (kg)3.32
-
UPC193133479833
-
Težina (lb)7.319
Zamjena
-
DAF1517964
-
IRISBUS42079486
-
IVECO42079484
-
IVECO42079485
-
IVECO42079486
-
IVECO42125015
-
IVECO42079586
-
IVECO9010099029
-
IVECO4324100210
-
IVECO110450
-
OTOKAR12F0008085AA
Doc Type
drawing
Locale
multi
Artical Number
4324100210____005_dascheck_b3_page-1---notset
Servis & Popravak

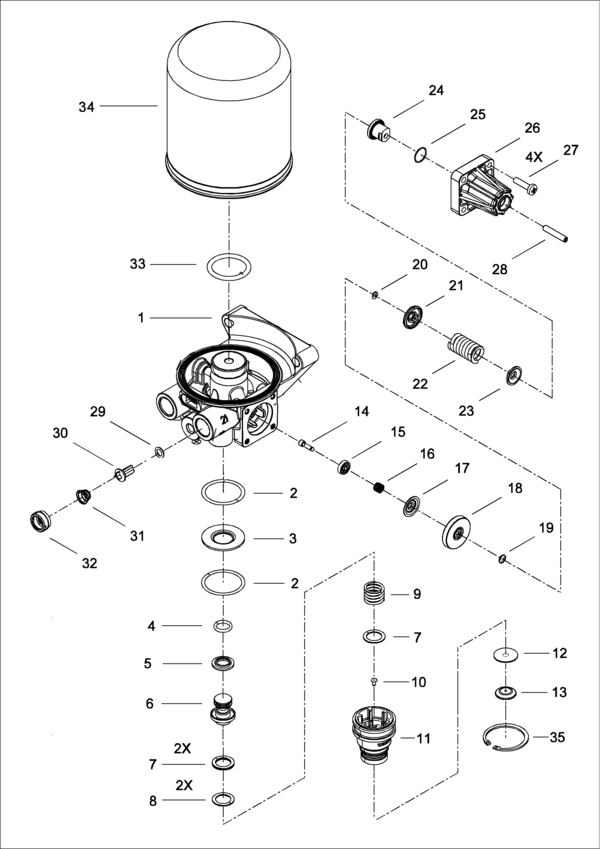

Lista rezervnih dijelova
| 1 | Karoserija | 1 | ||
| 2 | O-Ring ISO3601-40,95x2,62 | 2 | 4324100002 4324100022 4324100052 | 8977860304 |
| 3 | glava ventila | 1 | 4324100052 | 4324102504 |
| 4 | O-Ring ISO3601-14x3 | 1 | 4324100022 4324100052 | 8970815614 |
| 5 | Ventil | 1 | 4324100022 4324100052 | 8995062604 |
| 6 | Klip | 1 | 4324106224 | |
| 7 | Podložna pločica | 3 | 8951052734 | |
| 9 | Cylindrical Compression Spring | 1 | 8965144204 | |
| 10 | Blind rivet DIN7337-3,2x10 | 1 | ||
| 11 | podnožje | 1 | 4324105524 | |
| 12 | Valve Washer | 1 | 4324100002 | 8970179604 |
| 13 | Poklopac/kapica | 1 | ||
| 14 | drška | 1 | 4324100052 4324109242 | 9753037724 |
| 15 | Ventil | 1 | 4324100002 4324100012 4324100052 4324109242 | 8995068992 |
| 16 | Cylindrical Compression Spring | 1 | 4324100002 4324100052 4324109242 | 8965144304 |
| 17 | Poklopac/kapica | 1 | 4324100052 4324109242 | 8950725604 |
| 18 | Cup Seal | 1 | 4324100002 4324100012 4324100052 4324109242 | 8971816604 |
| 19 | Poklopac/kapica | 1 | 4324100052 4324109242 | |
| 20 | Retaining washer DIN6799-4 | 1 | 4324100012 4324100052 4324109242 | 8105190274 |
| 21 | Pokrov | 1 | 4324100052 4324109242 | 8950725404 |
| 22 | Cylindrical Compression Spring | 1 | 8965144104 | |
| 23 | Pokrov | 1 | 4324100002 | |
| 24 | podesiva matica | 1 | 4324100052 4324109242 | 9753034304 |
| 25 | O-Ring ISO3601-13x1 | 1 | 4324100012 4324100052 4324109242 | 8970708904 |
| 26 | Pokrov | 1 | 9753036504 | |
| 27 | Fillister head screw ISO7045-M6x25 | 4 | 8912015704 | |
| 28 | Hex Socket Set Screw DIN914-M6x35 | 1 | 4324100052 4324109242 | 8102080164 |
| 29 | O-Ring ISO3601-7,3x2,4 | 1 | 4324100022 4324100052 | 8970800704 |
| 30 | tela ventila | 1 | 4324100022 4324100052 | 8995069834 |
| 31 | Podložna pločica | 1 | 4324100022 4324100052 | 8951090604 |
| 31 | Conical compression spring | 1 | 4324100022 4324100052 | 8960536014 |
| 32 | Prstenasto sjedište ventila | 1 | 4324100052 | 4324101414 |
| 33 | O-Ring ISO3601-33x5 | 1 | 4324100022 | 8977887204 |
| 34 | Uložak za sušač zraka, sustav komprimiranog zraka | 1 | 4324100202 | |
| 35 | Retaining ring DIN472-47x1,75 | 1 | 4324100052 | 8105180544 |
