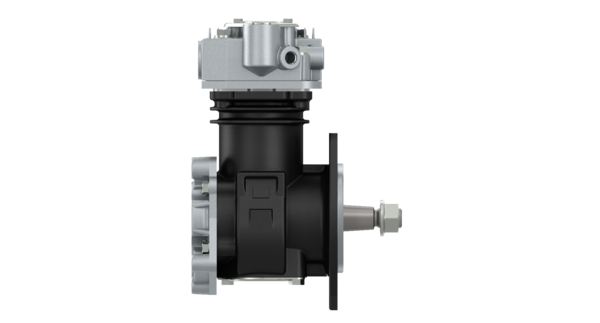

TCL Compressor 160 cc
Vehicle application (India): TATA
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
100101221
Gross Unit Price:
0.00
Vehicle application (India): TATA
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
Calculated Volume (dm³)0
-
Crankshaft threadM18 x 1.5
-
Operating speed3000 (1/min)
-
Piston diameter2.63 in
-
Piston stroke1.81 in
-
Port thread 0M26 x 1.50
-
Port thread 2M26 x 1.5
-
Port thread 4M12 x 1.5
-
Port thread 8.1M10 x 1.00
-
Swept volume (cm³)160 cm3
-
Technical specificationOE specification
-
TypeSingle Cylinder
-
GTIN04057875000495
-
UPC193133044871
-
Weight (kg)0.001
-
Weight (lb)0.0022046
Service & Repair
List of Spare Parts
| 1 | Cylinder Block machined | 1 | ||
| 2 | Nut, special type | 1 | ||
| 3 | Thrust washer | 1 | ||
| 4 | Crankshaft | 1 | 100135561 | |
| 5 | O-Ring, statical | 1 | ||
| 6 | Flange | 1 | 9129056004 | |
| 7 | Washer | 4 | ||
| 8 | Hexagon Head Screw, full thread | 4 | ||
| 9 | Connecting Rod Assembly | 1 | 100111400 | |
| 10 | Piston | 1 | 9129706212 | |
| 11 | U-Profile | 1 | ||
| 12 | Cylinder Head assembly | 1 | ||
| 13 | Plug Socket | 1 | ||
| 14 | Washer | 4 | ||
| 15 | Hexagon Head Screw | 3 | ||
| 16 | O-Ring, statical | 1 | ||
| 17 | Sump Cover | 1 | 100135670 | |
| 18 | Hexagon Head Screw, full thread | 2 | ||
| 19 | Hexagon Head Screw | 1 |
