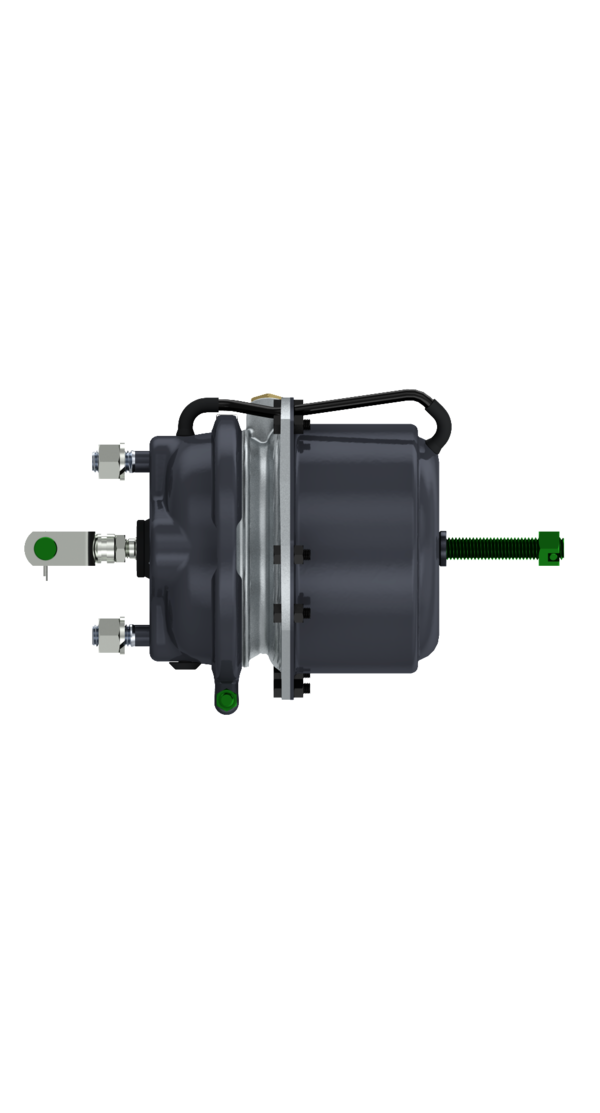

Spring Brake Actuator(24/75)
Vehicle application (India): Mahindra
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
100252860
Gross Unit Price:
0.00
Vehicle application (India): Mahindra
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
Bolt lengths1.57 in
-
Bolt threadsM16 x 1.5
-
Calculated Volume (dm³)0
-
Clevis pin0.49 in
-
CoolingAir
-
Distance between bolts4.75 in
-
Max. operating pressure188.55 / 188.55 psi
-
Output force2248.09 lbf
-
Output force 12686.47 lbf
-
Output force 23169.81 lbf
-
Output force M3169.81 lbf
-
Port thread 11M22 x 1.5
-
Push-rod length2.83 in
-
Push-rod threadM14 x 1.50
-
Release pressure68.17 psi
-
Return-spring force31.47 lbf
-
Stroke2.24 in
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
Total lenght7.95 in
-
Type24/24
-
Type of operationCam
-
VersionWith boot
-
YokeWith
-
GTIN04057875002659
-
UPC193133048275
-
Weight (kg)0.001
-
Weight (lb)0.0022046
Service & Repair
List of Spare Parts
| 1 | Non pressure plate assembly | 1 | ||
| 2 | Spring Washer DIN6888-16.5x27.4x3.5 | 2 | ||
| 3 | Hexagon Nut | 2 | ||
| 4 | Locking nut | 1 | 8919900074 | |
| 5 | Boot | 1 | ||
| 6 | Fork | 1 | 9254914202 | |
| 7 | Pin | 1 | 8920100084 | |
| 8 | Splint | 1 | 8105110274 | |
| 9 | Hose nipple | 2 | ||
| 10 | Tube | 1 | ||
| 11 | Dust Cap | 1 | ||
| 12 | Clamping Unit | 1 | ||
| 13 | Nut, special type | 1 | 8919900044 | |
| 15 | Conical Spring | 1 | ||
| 16 | Piston | 1 | 9254916312 | |
| 17 | Diaphragm | 1 | M843331 | |
| 18 | Stem plug | 1 | ||
| 19 | O-Ring, dynamical | 1 | ||
| 20 | Bearing | 1 | ||
| 21 | Flange | 1 | ||
| 22 | Hexagon Head Screw, full thread | 8 | 8912000264 | |
| 24 | O-Ring, dynamical | 1 | ||
| 25 | O-Ring, statical | 1 | ||
| 26 | Sealing | 1 | ||
| 27 | Bearing | 1 | ||
| 28 | Ram assembly | 1 | ||
| 29 | Spring | 1 | ||
| 30 | Rod | 1 | 9254917392 | |
| 31 | Cylinder assembly | 1 | ||
| 32 | Washer, sealing type | 1 | ||
| 33 | Nut, special type | 1 | 8919900104 | |
| 34 | Pin | 1 | ||
| 35 | Spring Retainer | 2 | 4611001192 | |
| 36 | Retaining Ring | 2 | 4611001192 | 8952266974 |
| 37 | Pressure screw | 2 | 4611001192 | 8932204272 |
| 38 | O-Ring, statical | 1 | 4611001192 | |
| 39 | O-Ring, statical | 1 | 4611001192 | |
| 40 | Valve | 1 |
