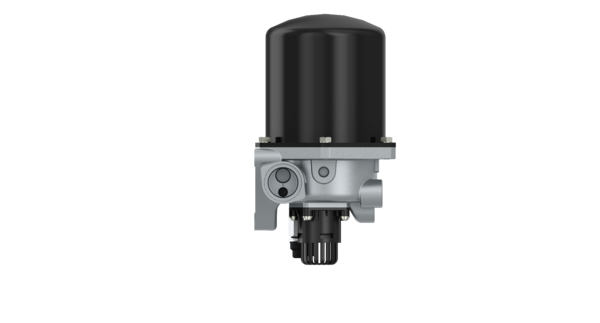

Air dryer
Vehicle application (India): Ashok Leyland, Volvo Eicher (VECV), Swaraj Mazda
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
100303470
Gross Unit Price:
0.00
Vehicle application (India): Ashok Leyland, Volvo Eicher (VECV), Swaraj Mazda
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
Calculated Volume (dm³)9.24
-
Cartridge typeDesiccant Cartridge AD
-
Cut-out pressure117.48 psi
-
Heating connectionM27 x 1
-
Port thread 21M22 x 1.5
-
Port thread 22M16 x 1.5
-
SilencerSILENCER 100 311 480
-
Technical specificationOE specification
-
Temperature range-20°C to +80°C
-
GTIN04057875003984
-
Size (mm x mm x mm)150 x 220 x 280
-
UPC193133049500
-
Weight (kg)5
-
Weight (lb)11.023
Service & Repair
List of Spare Parts
| 1 | Body | 1 | ||
| 2 | O-Ring, statical | 1 | ||
| 3 | Filter Retainer Assembly | 1 | 100311900 | |
| 4 | O-Ring, statical ISO3601-18.72x2.62 | 1 | ||
| 5 | Desiccant Cartridge AD | 1 | ||
| 6 | Spring/Air Dryer | 1 | 100337620 | |
| 7 | Housing(Screen Printed)Airdrye | 1 | 100338080 | |
| 8 | Stiffener Plate\Air Dryer | 1 | 100337540 | |
| 9 | Washer | 6 | ||
| 10 | Hexagon Head Screw, full thread | 6 | 8912000264 | |
| 11 | Governor Plunger-Combined Unit | 1 | 100334910 | |
| 12 | Valve Insert-Combined Unit | 1 | ||
| 13 | Valve-Combined Unit/Air Dryer | 1 | ||
| 14 | Spring-Combined Unit\Hcv | 1 | ||
| 15 | Follower-Combined Unit | 2 | 100334840 | |
| 16 | Diaphragm | 1 | ||
| 17 | Spring washer | 1 | 8950100674 | |
| 18 | Hexagon Nut | 1 | 8915000444 | |
| 19 | Compression spring | 1 | ||
| 20 | Valve body | 1 | ||
| 21 | Top Cover(Machining)-Combined | 1 | 100334791 | |
| 22 | Hexagon Head Screw, full thread | 4 | ||
| 23 | Exhaust Flap | 1 | ||
| 24 | Cup-Combined Unit/Air Dryer | 1 | 100334970 | |
| 25 | Hexagon Nut | 1 | ||
| 26 | Adjustment Screw-Combined Unit | 1 | 100335000 | |
| 27 | Kit: Test Connection | 0 | 1003030002 | |
| 27 | Sealing washer | 1 | ||
| 28 | Tyre Inflator Adaptor | 1 | ||
| 28 | Kit: Test Connection | 0 | 1003030002 | |
| 29 | Kit: Test Connection | 0 | 1003030002 | |
| 29 | Washer, sealing type | 1 | ||
| 30 | Kit: Test Connection | 0 | 1003030002 | |
| 30 | Spring-Pressure Test Connector | 1 | ||
| 31 | Valve-Pressure Test Connector | 1 | ||
| 31 | Kit: Test Connection | 0 | 1003030002 | |
| 32 | Kit: Test Connection | 0 | 1003030002 | |
| 32 | O-Ring, dynamical ISO3601-5.28x1.78 | 1 | ||
| 33 | Tyre Inflator Body | 1 | ||
| 33 | Kit: Test Connection | 0 | 1003030002 | |
| 34 | Plug | 1 | ||
| 34 | Kit: Test Connection | 0 | 1003030002 | |
| 35 | O Ring | 1 | ||
| 36 | Unloader Plunger-Air Dryer | 1 | ||
| 37 | Compression Spring-Combined unit | 1 | ||
| 38 | Valve Seat-Combined Unit | 1 | 100336700 | |
| 39 | O-Ring, dynamical | 1 | ||
| 40 | Valve-Combined Unit | 1 | ||
| 41 | Valve Insert-Combined Unit | 1 | ||
| 42 | Hexagon Nut DIN934-M4x0.7x4.85 | 1 | ||
| 43 | Silencer Assembly-Air Dryer | 1 | 100311480 | |
| 44 | Washer | 4 | ||
| 45 | Cheese Head Screw, full thread | 4 | ||
| 46 | O-Ring ISO3601-7,3x2,4 | 1 | 8970800704 | |
| 47 | Valve guide | 1 | ||
| 48 | Conical compression spring | 1 | 8960536014 | |
| 49 | Washer | 1 | ||
| 50 | Valve Seat | 1 | 4324101414 |
