Compressor (Single Cylinder)

Compressor (Single Cylinder)
Compressor (Single Cylinder)
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
4110345010
Gross Unit Price: 0.00
Create an account
You must be logged-in to make a purchase.
Don't have an account yet?
Please register.

Features and Benefits

  • Brand
    WABCO
  • Part type
    Premium original quality
  • Product category
    Device
  • Calculated Volume (dm³)
    14.043
  • Comments
    Connecting unions 8931009204 and 8931004314 fitted in ports 81 and 82: vickers-flange 4110426004
  • Cooling
    Air
  • Crankshaft thread
    M18 x 1.5
  • Lubrication
    Lubrication supplied from engine
  • Max. operating pressure
    116.0 psi
  • Mounting
    Foot mounting
  • Operating speed
    3000 (1/min)
  • Piston diameter
    3.54 in
  • Piston stroke
    1.42 in
  • Port thread 2
    M26 x 1.5
  • Port thread 8.1
    M12 x 1.5
  • Port thread 8.2
    M18 x 1.5
  • Swept volume (cm³)
    229 cm3
  • Technical specification
    OE specification
  • Type
    Single Cylinder
  • Type of operation
    Normal pressure using unloader
  • GTIN
    7895851001220
  • Size (mm x mm x mm)
    233 x 205 x 294
  • UPC
    193133420248
  • Weight (kg)
    12.258
  • Weight (lb)
    27.0242
Replaces
  • DAF
    1517931
  • MERCEDES-BENZ
    0011315201
  • MERCEDES-BENZ
    0011315401
  • MERCEDES-BENZ
    0011315501
  • MERCEDES-BENZ
    0021313601
Documents
Name
outline drawing (doc 005)
Doc Type
drawing
Locale
multi
Artical Number
4110345010_-_605_a_02
Name
outline drawing (doc 005)
Doc Type
drawing
Locale
multi
Artical Number
4110345010_-_605_p_01
Name
WABCO Product Catalogue
Doc Type
catalog
Locale
en
Artical Number
wabco_product-catalogue
Name
Test Instructions for Compressors
Doc Type
repair_test_instructions
Locale
en
Artical Number
91200095

Service & Repair

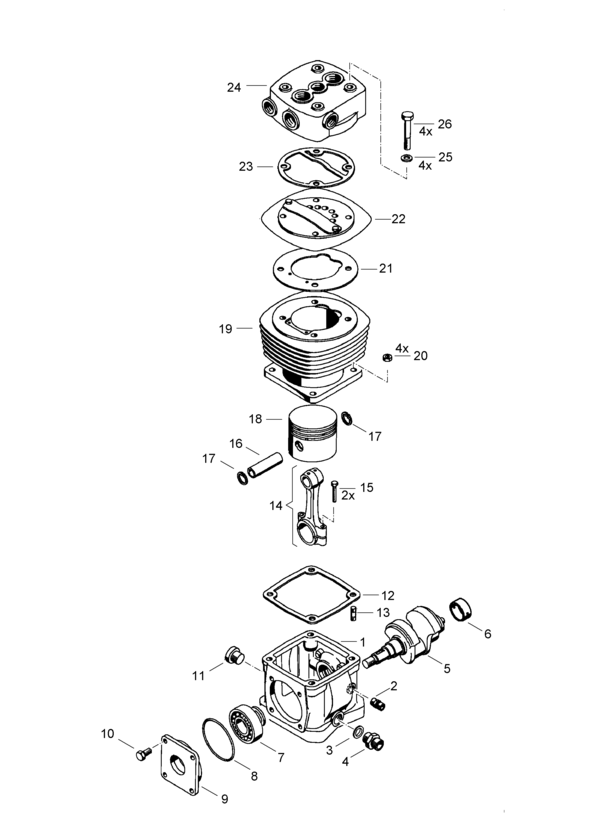

List of Spare Parts
1 Crankcase 1
2 Double Male Union 1 8931009214
3 Sealing Ring DIN7603-A22x27 4 4110340052  8114010814
4 Double Male Union 1 8931004314
5 Crankshaft 1 4110416904
6 Hexagon head screw ISO4017-M8x16 1 8101260584
7 Cylinder Roller Bearing 1 8952706114
8 O-Ring ISO3601-88x3 1 4110340052  8976701904
9 Bearing Cover 1 4110426602
10 Hexagon head screw ISO4017-M8x16 4 8101260584
11 Hexagon Socket Pipe Plug DIN908-M22x1,5 1 8109020094
12 Gasket 1 4110340052  8973343374
13 Stud DIN939-M8x22 4 8102140414
14 Connecting Rod 1 4111437322
15 Cheese Head Screw ISO14580-M6x35 2 8912019294
16 Pin 1
17 Retaining Ring DIN472-20x1 2 8105180124
18 Piston 1 4110426202
19 Cylinder 1 4110345704
20 Hexagon nut DIN934-M8 4 8103040174
21 Gasket 1 4110340052  8971068624
22 Valve 1 4110340082  4110345002
23 Gasket 1 4110340082 4110340052  8971068634
24 Cylinder cover 1 4110340082  4110346522
25 Washer 4 4110340082
26 Hexagon head screw DIN931-M10x65 4 4110340082
