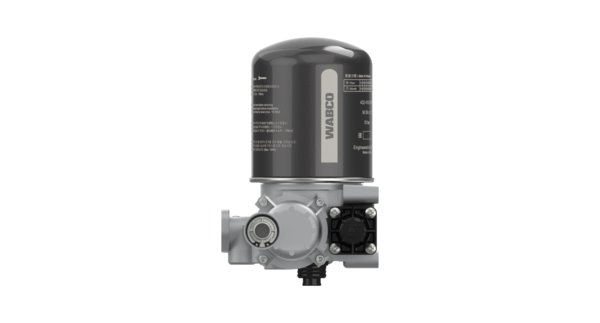

Air Dryer (Single Cannister)
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
4324150530
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
Back flow7.3 psi
-
Calculated Volume (dm³)10.2502
-
Cartridge typeDesiccant Cartridge
-
CoolingCompressed air
-
Cut-out pressure123.28±2.90 psi
-
Max. operating pressure188.5 psi
-
Mounting30
-
Opening pressure188.55 psi
-
Operational range10.15 psi
-
Port thread 4/231/4" - 18 NPTF
-
Port threadsM22 x 1.5
-
Technical specificationOE specification
-
Temperature range-40°C to +65°C
-
Voltage24 V
-
GTIN04057875172239
-
Size (mm x mm x mm)208 x 176 x 280
-
UPC193133422716
-
Weight (kg)5.1
-
Weight (lb)11.244
Replaces
-
FOTON1425135643004
-
FOTON1,42514E+12
Doc Type
drawing
Locale
multi
Artical Number
4324150530____005_dascheck_d5_page-1---notset
Service & Repair
List of Spare Parts
| 1 | Body | 1 | ||
| 2 | O-Ring ISO3601-14x3 | 1 | 4324100052 | 8970815614 |
| 3 | Valve | 1 | 4324100052 | 8995062604 |
| 4 | Piston | 1 | 4324106224 | |
| 5 | O-Ring ISO3601-40,95x2,62 | 2 | 4324100052 | 8977860304 |
| 6 | Valve head | 1 | 4324100052 | 4324102504 |
| 7 | Washer | 2 | 8951090604 | |
| 8 | Washer | 3 | 8951052734 | |
| 9 | Cylindrical Compression Spring | 1 | 8965144204 | |
| 10 | Bottom | 1 | 4324105564 | |
| 11 | Retaining ring DIN472-47x1,75 | 1 | 4324100052 | 8105180544 |
| 12 | Threaded fitting | 1 | ||
| 13 | O-Ring ISO3601-33x5 | 1 | 8977887204 | |
| 14 | Cartridge | 1 | 4324102292 | |
| 15 | Heater 24V | 1 | ||
| 16 | Kit: Switch | 1 | 8940409402 | |
| 17 | Support | 1 | 4324083504 | |
| 18 | Tapping screw ISO7049-B2,9x6,5 | 1 | ||
| 19 | O-Ring ISO3601-36x2,5 | 1 | 4324100052 | 8977829104 |
| 20 | Male Connection | 1 | 8941010302 | |
| 21 | Screw | 2 | ||
| 22 | Plunger | 1 | 4324100052 | 9753037724 |
| 23 | Valve | 1 | 4324100052 | 8995068992 |
| 24 | Cylindrical Compression Spring | 1 | 4324100052 | 8965144304 |
| 25 | Cap | 1 | 4324100052 | 8950725604 |
| 26 | Cup Seal | 1 | 4324100052 | 8971816604 |
| 27 | Cap | 1 | 4324100052 | |
| 28 | Retaining washer DIN6799-4 | 1 | 4324100052 | 8105190274 |
| 29 | Cover | 1 | 4324100052 | 8950725404 |
| 30 | Cylindrical Compression Spring | 1 | 8965144104 | |
| 31 | Cover | 1 | ||
| 32 | Adjusting nut | 1 | 4324100052 | 9753034304 |
| 33 | O-Ring ISO3601-13x1 | 1 | 4324100052 | 8970708904 |
| 34 | Cover | 1 | 9753036504 | |
| 35 | Fillister head screw ISO7045-M6x25 | 4 | 8912015704 | |
| 36 | Hex Socket Set Screw DIN914-M6x35 | 1 | 4324100052 | 8102080164 |
| 37 | Diaphragm | 1 | 8971321684 | |
| 38 | Cap | 1 | ||
| 39 | Cylindrical compression spring | 1 | ||
| 40 | Filter | 1 | ||
| 41 | O-Ring ISO3601-4,3x2,4 | 1 | 8970803004 | |
| 42 | Cover | 1 | 4324136514 | |
| 43 | Cheese head screw ISO4762-M6x20 | 4 | ||
| 44 | Valve body | 1 | 9325002352 | |
| 45 | Valve | 1 | 9325002352 | |
| 46 | Cap | 1 | 9325002352 | |
| 47 | Cylindrical Compression Spring | 1 | 9325002352 | 8960419304 |
| 48 | Cap | 1 | 9325002352 | |
| 49 | Cylindrical compression spring | 1 | 9325002352 | |
| 50 | Cap | 1 | 9325002352 | |
| 51 | O-Ring ISO3601-32x2,5 | 1 | 9325002352 | 8977705804 |
| 52 | Guide | 1 | 9325002352 | |
| 53 | Retaining ring DIN472-37x1,5 | 1 | 9325002352 | 8105180254 |
| 54 | Hex socket set screw DIN914-M6x30 | 1 | 9325002352 | |
| 55 | Hexagon Nut DIN6923-M6 | 1 | 9325002352 | 8915810004 |
| 56 | Plug | 1 | 9325002352 | |
| 57 | O-Ring ISO3601-7,3x2,4 | 1 | 4324100052 | 8970800704 |
| 58 | Valve body | 1 | 4324100052 | 8995069834 |
| 59 | Conical compression spring | 1 | 4324100052 | 8960536014 |
| 60 | Valve Seat | 1 | 4324100052 | 4324101414 |
| 61 | Sealing Ring DIN7603-A12x16 | 1 | 8114010324 | |
| 62 | screw plug | 1 | 8930100304 |
