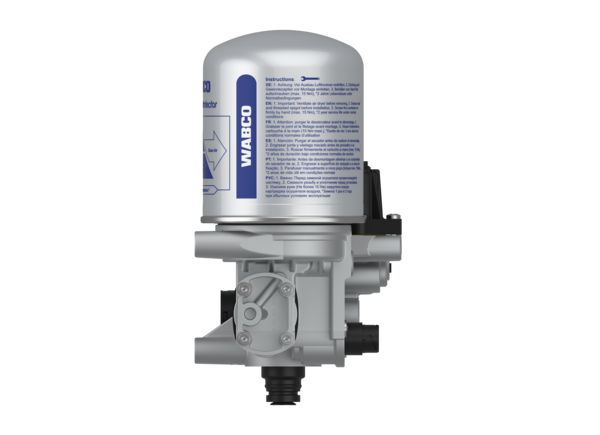

Air Dryer (Twin Cannister)
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
4324332970
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
Calculated Volume (dm³)26.9216
-
Cartridge typeDesiccant Cartridge
-
Cut-out pressure123.28 psi
-
Electrical connectionDIN 72585 A1-2.1-Sn/K1
-
ExhaustJED-463-0
-
Heating connectionDIN 72585-A1-2.1-Sn/K2
-
Max. operating pressure188.5 psi
-
Opening pressure188.55 psi
-
Operational range8.70 psi
-
Port thread 11M22 x 1.5
-
Port thread 21M22 x 1.5
-
Port thread 3JED-463-0
-
Port thread 4/231/4" - 18 NPTF
-
Technical specificationOE specification
-
Temperature range-40°C to +65°C
-
Voltage12 V
-
GTIN04057875173564
-
Size (mm x mm x mm)377 x 370 x 193
-
UPC193133482307
-
Weight (kg)8.756
-
Weight (lb)19.304
Doc Type
drawing
Locale
multi
Artical Number
4324332970____005_dascheck_d6_page-1---notset
Doc Type
catalog
Locale
en
Artical Number
81500823
Service & Repair
List of Spare Parts

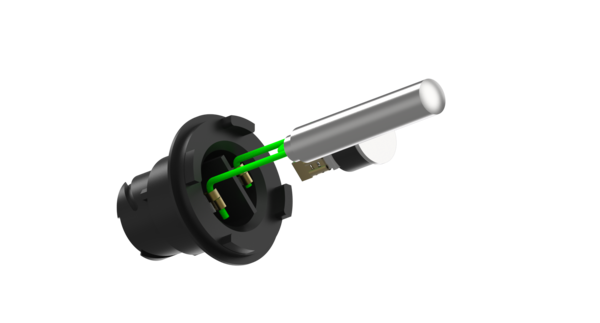

| 1 | 1200 Essential Cartridge | 2 | 4329012232 | |
| 2 | O-Ring ISO3601-33x5 | 2 | ||
| 3 | Body | 1 | ||
| 4 | Compression Spring | 1 | 4324339242 | |
| 5 | Valve body | 2 | 4324339242 | |
| 6 | O-Ring ISO3601-9x2,5 | 3 | 4324339242 | |
| 7 | O-Ring ISO3601-16,3x2,4 | 1 | 4324339242 | |
| 8 | O-Ring ISO3601-23x2 | 1 | 4324339242 | 8970827904 |
| 9 | Valve Seat | 1 | 4324339242 | |
| 10 | Gasket | 1 | ||
| 11 | Piston | 1 | 4324109242 | |
| 12 | Cover | 1 | 4324109242 | 8950725404 |
| 13 | Cover | 1 | ||
| 14 | Cylindrical Compression Spring | 1 | 8965144204 | |
| 15 | Adjusting nut | 1 | 4324109242 | 9753034304 |
| 16 | O-Ring ISO3601-13x1 | 1 | 4324109242 | 8970708904 |
| 17 | Cover | 1 | 9753036504 | |
| 18 | Fillister head screw ISO7045-M6x25 | 4 | 8912015704 | |
| 19 | Hex Socket Set Screw DIN914-M6x35 | 1 | 4324109242 | 8102080164 |
| 20 | Cover | 1 | ||
| 21 | Washer DIN125-1-6,4x12,5x1,6 | 4 | 8104010094 | |
| 22 | Cheese head screw DIN6912-M6x35 | 8 | ||
| 23 | O-Ring ISO3601-30x3 | 2 | 4324339212 | 8977703404 |
| 24 | Bushing | 2 | ||
| 25 | Compression Spring, special | 2 | 4324339212 | |
| 26 | Valve | 2 | 4324339212 | |
| 27 | Piston | 2 | 4324339212 | 4324056204 |
| 28 | Diaphragm | 2 | 4324339212 | 8971216004 |
| 29 | Fillister head screw ISO7045-M6x25 | 2 | 4324339212 | 8912015704 |
| 30 | Cover | 1 | ||
| 31 | Armatur | 1 | 4420195202 | |
| 32 | O-Ring ISO3601-10x1 | 1 | ||
| 33 | Armatur guide | 1 | 4324332042 | |
| 34 | Flange | 1 | ||
| 35 | Coil | 1 | 4324332042 | |
| 36 | O-Ring ISO3601-8x1,5 | 2 | ||
| 37 | Connecting piece | 1 | ||
| 38 | Protection Cap | 1 | 8977528914 | |
| 39 | Heater | 1 | ||
| 40 | Support | 1 | 4324083504 | |
| 41 | Tapping screw ISO7049-B2,9x6,5 | 1 | ||
| 42 | O-Ring ISO3601-36x2,5 | 1 | 8977829104 | |
| 43 | Screw | 2 | ||
| 44 | Valve body | 1 | ||
| 45 | Conical Compression Spring | 1 | ||
| 46 | Washer | 1 | ||
| 47 | Retaining Ring DIN472-20x1 | 1 | 8105180124 | |
| 48 | O-Ring ISO3601-14x3 | 1 | 8970815614 | |
| 48 | Kit: Valve + Exhaust | 1 | 4324339262 | |
| 49 | Kit: Valve + Exhaust | 1 | 4324339262 | |
| 49 | Valve | 1 | ||
| 50 | Piston | 1 | ||
| 50 | Kit: Valve + Exhaust | 1 | 4324339262 | |
| 51 | Kit: Valve + Exhaust | 1 | 4324339262 | |
| 51 | O-Ring ISO3601-48,9x2,62 | 1 | ||
| 52 | Valve head | 1 | ||
| 52 | Kit: Valve + Exhaust | 1 | 4324339262 | |
| 53 | Washer | 3 | 8951052734 | |
| 53 | Kit: Valve + Exhaust | 1 | 4324339262 | |
| 54 | Kit: Valve + Exhaust | 1 | 4324339262 | |
| 54 | Washer | 4 | 8951052764 | |
| 55 | Washer | 2 | 8951090604 | |
| 55 | Kit: Valve + Exhaust | 1 | 4324339262 | |
| 56 | O-Ring ISO3601-47x2 | 1 | ||
| 56 | Kit: Valve + Exhaust | 1 | 4324339262 | |
| 57 | Cylindrical Compression Spring | 1 | 8965144104 | |
| 57 | Kit: Valve + Exhaust | 1 | 4324339262 | |
| 58 | Retaining ring DIN472-JV55x2 | 1 | ||
| 58 | Kit: Valve + Exhaust | 1 | 4324339262 | |
| 59 | Bottom | 1 | 4324315512 | |
| 60 | Tyre inflation port | 1 | 9324009202 | |
| 61 | Valve | 1 |
