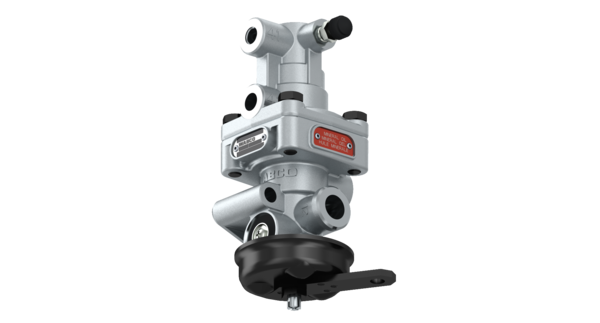

Trailer Control Valve
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
4700152590
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
Calculated Volume (dm³)1.075
-
Delivered pressure131 psi
-
Distance between holes1.97 in
-
ExhaustFlap
-
Max. operating pressure101.53 / 725.19 psi
-
MediumMineral oil
-
Mounting2x Ø9.0 mm
-
Port thread 1M16 x 1.5
-
Port thread 2M16 x 1.5
-
Port thread 41M10 x 1
-
Port thread 42M12 x 1.5
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
Version2 Circuit
-
GTIN04057875216711
-
Size (mm x mm x mm)170 x 93 x 68
-
UPC193133442851
-
Weight (kg)0.914
-
Weight (lb)2.015
Replaces
-
DAF1518884
-
FREIGHTLINERTDAS4700152590
-
KENWORTHS4700152590
-
MERITORS4700152590
-
PETERBILTS4700152590
-
RENAULT7700063842
Doc Type
catalog
Locale
en
Artical Number
81500823
Service & Repair
List of Spare Parts
| 1 | Body | 1 | ||
| 2 | O-Ring ISO3601-52x3 | 1 | 4700159012 | 8970707804 |
| 3 | Ball ISO3290-10 | 3 | 8107010134 | |
| 4 | Lever | 1 | 4700154502 | |
| 5 | Hexagon thin nut DIN439-2-BM8 | 1 | 8103190084 | |
| 6 | Valve Washer | 1 | 4700159012 | 8970179604 |
| 7 | Cap | 1 | ||
| 8 | Thread cutting screw DIN7516-AM4x8 | 1 | ||
| 9 | Retaining ring DIN472-27x1,2 | 1 | ||
| 10 | O-Ring ISO3601-20,3x2,4 | 1 | 4700159012 | 8977804004 |
| 11 | Guide | 1 | 4700151504 | |
| 12 | Cylindrical compression spring | 1 | ||
| 13 | O-Ring ISO3601-12x2 | 1 | 4700159012 | 8970700704 |
| 14 | Valve | 1 | 4700159012 | 8995053402 |
| 15 | Cylindrical compression spring | 1 | ||
| 16 | Piston | 1 | ||
| 17 | O-Ring ISO3601-23,3x2,4 | 1 | 4700159012 | 8970807004 |
| 18 | Guide Ring | 1 | ||
| 19 | O-Ring ISO3601-49,2x3 | 1 | 4700159012 | 8977804604 |
| 20 | Rod | 1 | 4700157304 | |
| 21 | O-Ring ISO3601-17,3x2,4 | 3 | 4700159012 | 8970801404 |
| 22 | Plunger | 1 | ||
| 23 | Lip seal ring | 1 | 4700159012 | 8971502904 |
| 24 | Body | 1 | ||
| 25 | Venting screw DIN74325-M7 | 1 | ||
| 26 | Hexagon head screw ISO4017-M8x30 | 4 | ||
| 27 | Venting screw | 1 | ||
| 28 | H/391 Protection cap | 1 | 4700159012 | 8980120004 |
