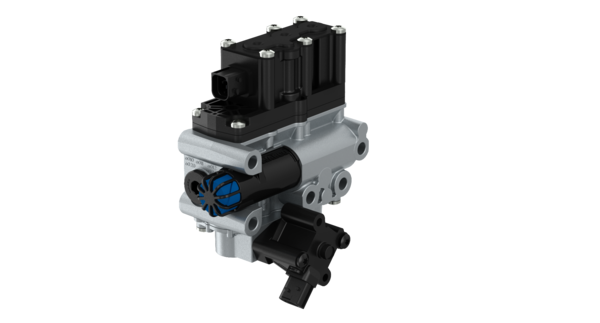

ECAS Solenoid Valve
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
4728900610
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
Calculated Volume (dm³)3.371
-
CommentsValve 1 = 0.32 A, Valve 2 = 0.24 A
-
CoolingAir
-
Electrical connectionTYCO HDSCS 4 x 2.8 CODING A
-
Max. operating pressure319.1 psi
-
Mounting3 x Ø 8 mm
-
Multi Nominal diameter (From Port 1 to x)0.44 / 0.31 / 0.03 in
-
Port thread 11M22 x 1.5 JED - 388-4
-
Port thread 22M22 x 1.5 JED - 388-4
-
Port thread 23M22 x 1.5 JED - 388-4
-
Port thread 3Integrated silencer
-
Protection classIP 6K6K, IP 6K9K
-
Rated current320 mA
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
Voltage24 V
-
GTIN04057875220589
-
Size (mm x mm x mm)183 x 169 x 109
-
UPC193133312284
-
Weight (kg)2.033
-
Weight (lb)4.482
Replaces
-
FUSO (MITSUBISHI)ML294449
-
SCANIA1905375
Doc Type
drawing
Locale
multi
Artical Number
4728900610____005_dascheck_-7_page-1---notset
Service & Repair
List of Spare Parts
| 1 | Body | 1 | ||
| 2 | O-Ring, dynamical ISO3601-8,3x2,4 | 2 | 4728909242 | |
| 3 | Piston | 2 | ||
| 4 | O-Ring, dynamical ISO3601-28x3 | 3 | 4728909242 | |
| 5 | O-Ring, dynamical ISO3601-15,55 x 2,6 | 1 | 4728909242 | |
| 6 | Compression Spring, special | 1 | ||
| 7 | Piston | 1 | ||
| 8 | Sealing | 1 | 4728909242 | |
| 9 | Plate | 1 | ||
| 10 | Sealing | 1 | 4728909242 | |
| 11 | Cover | 1 | ||
| 12 | Fillister Head Screw ISO14583-M6x20 | 6 | ||
| 13 | Sealing | 1 | 4728909272 4728909242 | |
| 14 | Valve solenoid | 1 | 4728909272 | |
| 15 | Sealing | 1 | 4728909272 4728909242 | |
| 16 | Cover | 1 | ||
| 17 | Fillister Head Screw ISO14583-M6x70 | 6 | 4728909272 | |
| 18 | Valve | 3 | 4728909242 | |
| 19 | Washer | 2 | ||
| 20 | Compression Spring, special | 2 | ||
| 21 | Cylindrical Compression Spring | 1 | ||
| 22 | Sealing | 1 | 4728909242 | |
| 23 | Connecting Plate | 1 | ||
| 24 | Strainer | 1 | 8993601404 | |
| 25 | O-Ring ISO3601-25,2x3 | 1 | 4728909242 | |
| 26 | Clamping Washer | 1 | ||
| 27 | Valve ring | 1 | ||
| 28 | Washer | 1 | ||
| 29 | Valve | 1 | ||
| 30 | Outlet Valve | 1 | ||
| 31 | Sealing Piece | 1 | 4728909282 4728909242 | |
| 32 | Cover | 1 | ||
| 33 | O-Ring ISO3601-18x2 | 2 | 4728909282 4728909242 | 8970815204 |
| 34 | 2/2 Valve solenoid | 1 | 4728909282 | |
| 35 | Fillister-Head Screw | 2 | 4728909282 |
