Pressure Regulator Valve
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
4750150630
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO Original
-
Part typePremium original quality
-
Product categoryDevice
-
Calculated Volume (dm³)0.341
-
CoolingAir
-
Delivered pressure123 at p1 = 174 psi
-
Max. operating pressure290.1 psi
-
Mounting1x Ø 8.2 mm
-
Opening pressure159.54 psi
-
Port thread 1M16 x 1.5
-
Port thread 2M16 x 1.5
-
Port threadsM16 x 1.5
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
Total lenght3.31 in
-
GTIN7895851081468
-
Size (mm x mm x mm)72 x 57 x 83
-
UPC193133257882
-
Weight (kg)0.369
-
Weight (lb)0.8135
Replaces
-
DAF20382306
-
DAF1524015
-
PACCAR1524015
-
SCANIA1935026
-
VOLVO20382312
-
VOLVO2133917
Doc Type
drawing
Locale
multi
Artical Number
4750150630____005_dascheck_a9_page-1---notset
Service & Repair

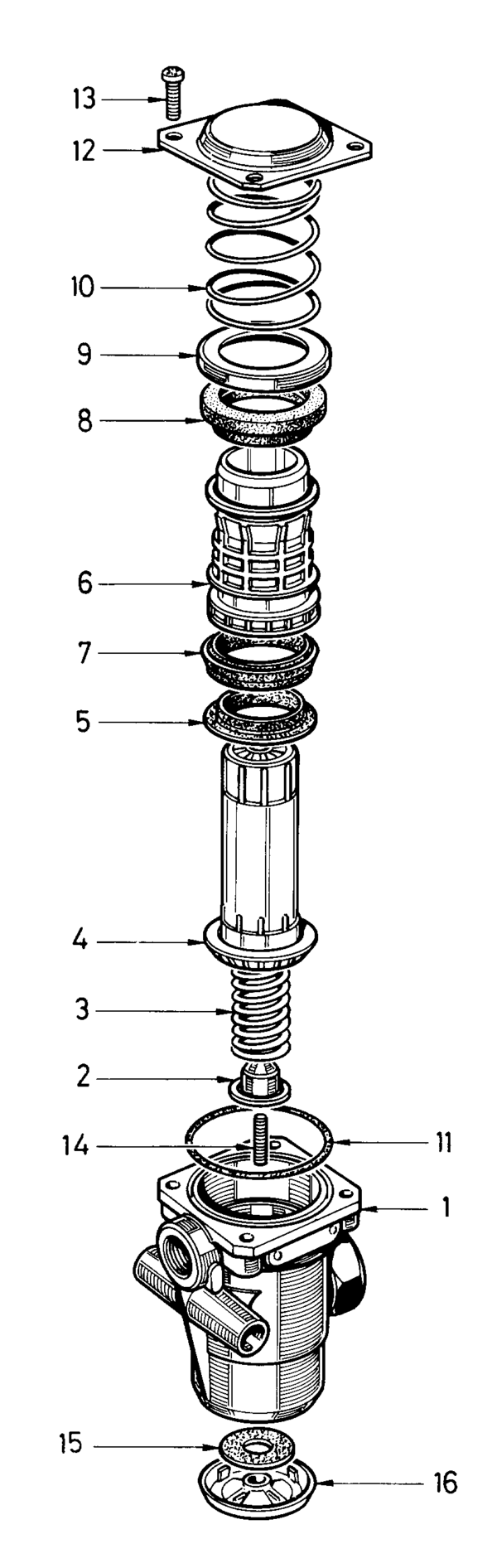

List of Spare Parts
| 1 | Body | 1 | ||
| 2 | Cap | 1 | ||
| 3 | Cylindrical Compression Spring | 1 | ||
| 4 | Piston | 1 | ||
| 5 | Cap seal | 1 | 4750150012 | |
| 6 | Valve body | 1 | ||
| 7 | Cup seal | 1 | 4750150012 | |
| 8 | Valve | 1 | 4750150012 | |
| 9 | Cap | 1 | ||
| 10 | Cylindrical compression spring | 1 | ||
| 11 | O-Ring ISO3601-48x2 | 1 | 4750150012 | |
| 12 | Cover | 1 | ||
| 13 | Cheese Head Screw | 4 | ||
| 14 | Headless setscrew | 1 | ||
| 15 | Sealing washer | 1 | 4750150012 | |
| 16 | Exhaust | 1 | 4750150012 |
