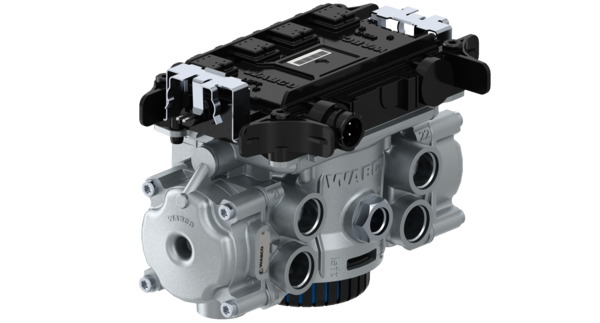

EBS Axle Modulator 2-Channel - Gen2
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
4801040020
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
ApplicationAA 2S 2M
-
Calculated Volume (dm³)4.452
-
CommentsVolume production modification
-
Distance between holes3.94 in
-
Electrical connectionBayonet DIN 72585 1A-4.1-Sn/K2
-
Max. operating pressure181.30 psi
-
Mounting2x M12 x 1.5
-
Port thread 11M22 x 1.5 JED - 388-4
-
Port thread 12M22 x 1.5 JED - 388-4
-
Port thread 21M22 x 1.5 JED - 388-4
-
Port thread 22M22 x 1.5 JED - 388-4
-
Port thread 3Integrated Silencer
-
Port thread 4M16 x 1.5 JED - 388-4
-
Protection classIP 6K6K, IP 6K9K
-
Rated current10 A
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
TypeDrive axle 2S 2M
-
Voltage24 V
-
GTIN04057875229254
-
Size (mm x mm x mm)219 x 154 x 132
-
UPC193133444831
-
Weight (kg)3.013
-
Weight (lb)6.6425
Replaces
-
DAF1607919
-
HYUNDAI595307M010
-
HYUNDAI59530 7M010
-
HYUNDAI59530 8KHA0
-
LEYLAND DAF1607919
-
PACCAR1607919
Doc Type
drawing
Locale
multi
Artical Number
4801040000____053_drw_j4
Doc Type
brochure
Locale
en
Artical Number
zf_reman_core_return_guidelines
Doc Type
info
Locale
multi
Artical Number
e1-xx1274_076
Doc Type
system_description
Locale
en
Artical Number
81500153
Service & Repair
List of Spare Parts
| 1 | Body | 1 | ||
| 2 | O-Ring ISO3601-4,47x1,78 | 6 | 4801049212 4801049222 | 8970867704 |
| 3 | Pressure Sensor | 2 | 4801049222 | |
| 4 | Spindle | 2 | 4801049212 | |
| 5 | Armature Guide | 4 | 4801049212 | |
| 6 | Armature | 2 | 4801049212 | |
| 7 | Armature | 2 | 4801049212 | |
| 8 | Clip | 2 | 4801049212 | |
| 9 | O-Ring | 4 | 4801049212 | |
| 10 | O-Ring ISO3601-10,77x2,62 | 4 | 4801049202 4801049212 | |
| 11 | Support | 1 | ||
| 12 | Sealing | 2 | 4801049212 | |
| 13 | Plate | 1 | ||
| 14 | Cheese head screw ISO14580-M6x25 | 4 | ||
| 15 | O-Ring | 1 | 4801049212 4801049222 | |
| 16 | EBS Axle modulator | 1 | ||
| 17 | Screw | 4 | 8914908314 | |
| 18 | O-Ring ISO3601-21,3x2,4 | 2 | 4801049202 | 8977728174 |
| 19 | Guide | 2 | 4801049202 | 9730111504 |
| 20 | Compression Spring, special | 2 | 4801049202 | |
| 21 | Valve body | 2 | 4801049202 | |
| 22 | O-Ring ISO3601-37,77x2,62 | 2 | 4801049202 | 8977862704 |
| 23 | Valve Seat | 2 | 4801049202 | |
| 24 | Retaining ring DIN472-42x1,75 | 2 | 4801049202 | |
| 25 | Valve plate | 2 | 4801049202 | |
| 26 | Piston | 2 | 4801049202 | |
| 27 | Sealing | 2 | 4801049202 | |
| 28 | O-Ring ISO3601-15,3x2,4 | 2 | 4801049202 | 8970800404 |
| 29 | O-Ring ISO3601-67x2,5 | 2 | 4801049202 | |
| 30 | Cover | 2 | ||
| 31 | Cheese head screw ISO14580-M6x35 | 8 | ||
| 32 | Strainer Fitting | 1 | ||
| 33 | Bottom | 1 | ||
| 34 | Valve | 1 | 4801040042 | |
| 35 | O-Ring ISO3601-18x2 | 1 | 4801040042 | 8970815204 |
| 36 | Bushing | 1 | 4801040042 | |
| 37 | Filter | 2 | 4801069202 | |
| 38 | Strainer | 1 | 4801040042 4801069202 | 8993602604 |
