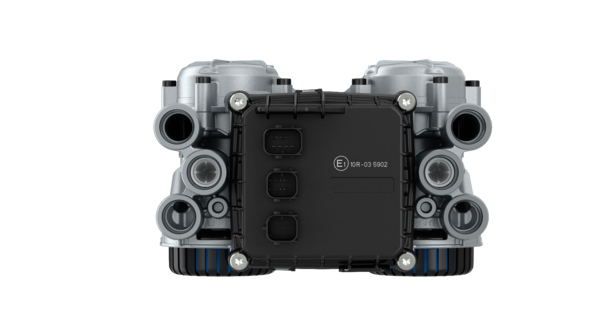

EBS Axle Modulator 2-Channel - Gen4
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
4801061050
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
Calculated Volume (dm³)5.6587
-
Distance between holes3.94 in
-
Max. operating pressure188.5 psi
-
Mounting2x M12 x 1.5
-
Port thread 11M22 x 1.5 JED - 388-4
-
Port thread 12M22 x 1.5 JED - 388-4
-
Port thread 21M22 x 1.5 JED - 388-4
-
Port thread 22M22 x 1.5 JED - 388-4
-
Port thread 3Integrated Silencer
-
Port thread 4M16 x 1.5 JED - 388-4
-
Protection classIP 6K6K, IP 6K9K
-
Rated current7 A
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
Voltage24 V
-
GTIN04057875229377
-
Size (mm x mm x mm)227 x 164 x 152
-
UPC193133444848
-
Weight (kg)3.093
-
Weight (lb)6.8189
Replaces
-
DAF1867002
-
KENWORTHS480-106-105-0
-
MERITORS4801061050
-
PETERBILTS480-106-105-0
Doc Type
drawing
Locale
multi
Artical Number
4801061000____053_drw_h11
Doc Type
brochure
Locale
en
Artical Number
zf_reman_core_return_guidelines
Service & Repair
List of Spare Parts
| 1 | Body | 1 | ||
| 2 | O-Ring ISO3601-21,3x2,4 | 2 | 4801069212 | 8977728174 |
| 3 | Guide | 2 | 4801069212 | 9730111504 |
| 4 | Compression Spring, special | 2 | 4801069212 | |
| 5 | Valve body | 2 | 4801069212 | |
| 6 | O-Ring ISO3601-37,77x2,62 | 2 | 4801069212 | 8977862704 |
| 7 | Valve Seat | 2 | 4801069212 | |
| 8 | Retaining ring DIN472-42x1,75 | 2 | 4801069212 | |
| 9 | Valve plate | 2 | 4801069212 | |
| 10 | Sealing | 2 | 4801069212 | |
| 11 | Piston | 2 | 4801069212 | |
| 12 | O-Ring ISO3601-15,3x2,4 | 2 | 4801069212 | 8970800404 |
| 13 | O-Ring ISO3601-67x2,5 | 2 | 4801069212 | |
| 14 | O-Ring ISO3601-10,77x2,62 | 2 | 4801069212 | |
| 15 | Cover | 2 | ||
| 16 | Cheese head screw ISO14580-M6x30 | 8 | 8101640194 | |
| 17 | Strainer Fitting | 2 | ||
| 18 | Bottom | 2 | ||
| 19 | Filter | 1 | 4801069222 4801069202 | |
| 20 | Filter | 2 | 4801069222 4801069202 | 4801022202 |
| 21 | O-Ring, statical | 8 | ||
| 22 | O-Ring, statical | 2 | ||
| 23 | O-Ring, statical | 4 | ||
| 24 | Valve Unit | 2 | ||
| 25 | Valve Unit | 4 | ||
| 26 | Coil-Sensor Unit | 2 | ||
| 27 | Fixation Plate | 2 | ||
| 28 | Cheese head screw ISO14580-M6x16 | 4 | ||
| 29 | O-Ring, statical | 1 | ||
| 30 | ECU --EBS AXM4 APAC | 1 | ||
| 31 | Screw | 4 | 8914908314 |
