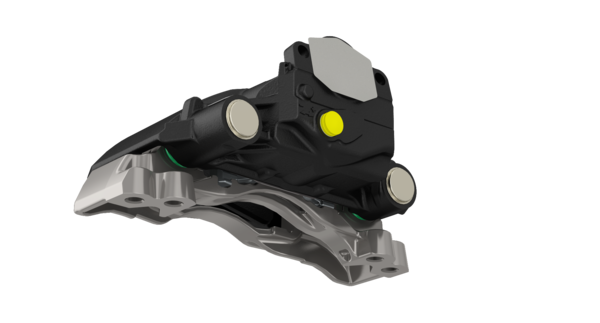

Disc Brake MAXXUS

Disc Brake MAXXUS
Disc Brake MAXXUS
Disc Brake MAXXUS
Disc Brake MAXXUS
Disc Brake MAXXUS
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
6403220660
Gross Unit Price: 0.00
Create an account
You must be logged-in to make a purchase.
Don't have an account yet?
Please register.

Features and Benefits

  • Brand
    WABCO
  • Part type
    Premium original quality
  • Product category
    Device
  • Brake disc
    1.77 in
  • Calculated Volume (dm³)
    0
  • Diameter
    16.93 in
  • Electrical connection
    Power Socket
  • Mounting
    4x M20 x 1.5
  • Side of mounting
    Right
  • Stroke
    0.79 in
  • Technical specification
    OE specification
  • Type
    MAXXUS
  • Version
    Without pads
  • GTIN
    04057875233855
  • UPC
    193133445111
  • Weight (kg)
    32.259
  • Weight (lb)
    71.119
Documents
Name
outline drawing -table (doc 053)
Doc Type
drawing
Locale
de
Artical Number
6403220650____053_dascheck_f6_page-1---notset
Name
PAN™ & MAXX™ Air Disc Brakes
Doc Type
brochure
Locale
en
Artical Number
sp18049
Name
North America Service Parts Catalog
Doc Type
catalog
Locale
en
Artical Number
pb19028
Name
WABCO Product Catalogue
Doc Type
catalog
Locale
en
Artical Number
wabco_product-catalogue

Service & Repair

List of Spare Parts
1 Caliper, Foundation Brake MAXXUS 1
2 Brake Spider- Foundation Brake 1
3 Sealing 2 6403229262 6403229382
4 Bearing Bush 3 6403229262 6403229382
5 Bolt 1 6403229262 6403229382
6 Bolt 1 6403229262 6403229382
7 Cheese Head Screw, full thread 2 6403229262 6403229382
8 Cover 2 6403229262 6403229382
9 Sliding piece 2
10 Lever 1
11 Bearing 1
12 Clamping Unit 1
13 Compression Spring, special 2

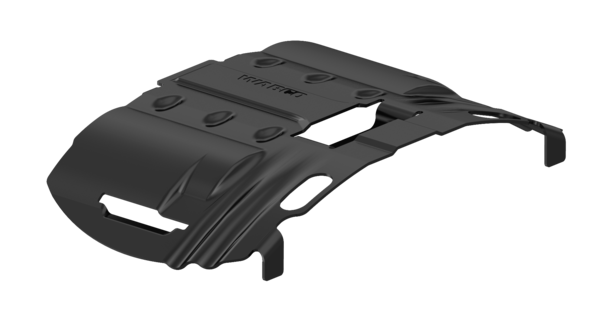

14 Cover MAXXUS 1
15 Cover MAXXUS 2
16 Cheese Head Screw 6
17 Boot 1 6403229262 6403229322 6403229382
18 Pressure Plate 1 6403229352
19 Return Unit 1 6403229272
20 Sealing Plug 1 6403229342 6403229262 6403229322 6403229272 6403229382
21 Disc brake Pad 2 6403229342
22 Down holder spring 3 6403229342
23 Spring hanger 1 6403229342
24 Cheese head screw ISO4762-M10x12 1 6403229342
