Twin-Cylinder compressor, flange mounted

Twin-Cylinder compressor, flange mounted
Twin-Cylinder compressor, flange mounted
Twin-Cylinder compressor, flange mounted
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
9115060540
Gross Unit Price: 0.00
Create an account
You must be logged-in to make a purchase.
Don't have an account yet?
Please register.

Features and Benefits

  • Brand
    WABCO
  • Part type
    Premium original quality
  • Product category
    Device
  • Calculated Volume (dm³)
    21.1979
  • Cooling
    Water
  • Crankshaft thread
    M18 x 1.5
  • Lubrication
    Lubrication supplied from engine
  • Max. operating pressure
    181.30 psi
  • Mounting
    Mounting Flange
  • Operating speed
    3000 (1/min)
  • Piston diameter
    2.95 in
  • Piston stroke
    1.02 in
  • Port thread 0
    Ø 0.94 in
  • Port thread 2
    Ø 0.64 in
  • Port thread 8.1
    Ø 0.36 in
  • Port thread 9
    2x Ø 0.64 in
  • Swept volume (cm³)
    442 cm3
  • Technical specification
    OE specification
  • Type
    Twin Cylinder
  • Type of operation
    Normal pressure using unloader
  • GTIN
    04057875273424
  • Size (mm x mm x mm)
    318 x 202 x 330
  • UPC
    193133342953
  • Weight (kg)
    14.946
  • Weight (lb)
    32.9503
Replaces
  • DAF
    1505106
  • IRISBUS
    500310906
  • IRISBUS
    500329471
  • IVECO
    04860565
  • IVECO
    500310906
  • IVECO
    500329471
  • IVECO
    4860565
  • IVECO
    00958322
  • IVECO
    958322
  • IVECO
    4839300
  • IVECO
    4862091
  • PACCAR
    1505106
Documents
Name
Outline Drawing (Doc 005)
Doc Type
drawing
Locale
multi
Artical Number
9115060540_-_605_a_01
Name
WABCO Product Catalogue
Doc Type
catalog
Locale
en
Artical Number
wabco_product-catalogue
Name
Test Instructions for Compressors
Doc Type
repair_test_instructions
Locale
en
Artical Number
91200095

Service & Repair

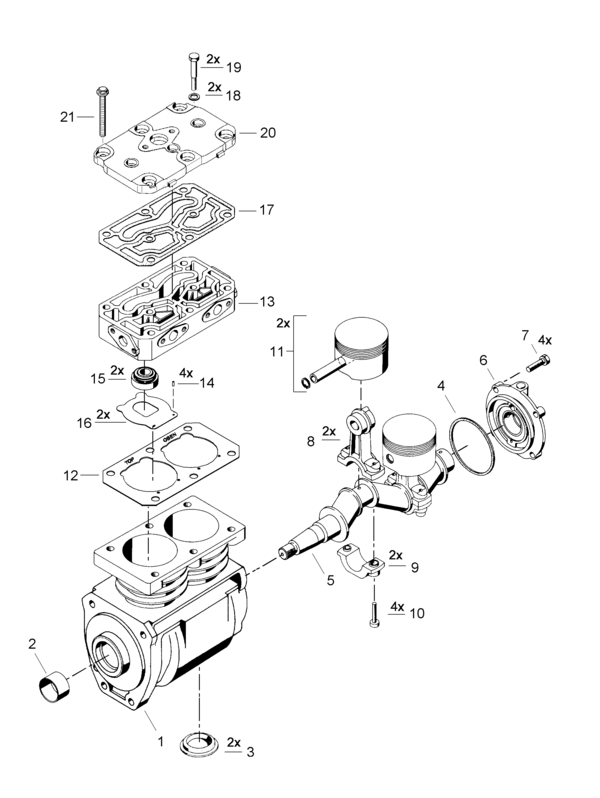

List of Spare Parts
1 Crankcase 1
2 Bearing 1 9110063414
3 Cap 2 8950735894
4 Sealing ring 1 8970305204
5 Crankshaft 1 9115066914
6 Rear cover 1 9111456614
7 Hexagon flange bolt DIN6921-M8x18 4 8912120074
8 Upper part of the connection rod 2
9 Connecting Rod, lower part 2
10 Cheese Head Screw ISO14580-M6x35 4 8912019294
11 Piston 2 4111416262
12 Gasket 1 9115069272 9115069292  8973342862
13 Cylinder cover 1 9115069272
14 Needle Roller DIN5402-B3x9,8G5 4 9115069272  8107020234
15 Discharge Valve 2 9115069272  9115035002
16 Suction reed valve 2 9115069272  4110410514
17 Gasket 1 9115069272 9115069292  8973344224
18 Washer 2 9115069272 9115069292  8951094704
19 Hexagon head screw ISO4017-M8x50 2 9115069272 9115069292
20 Cover 1
21 Hexagon Flange Bolt 1 9115069292  8912017014
