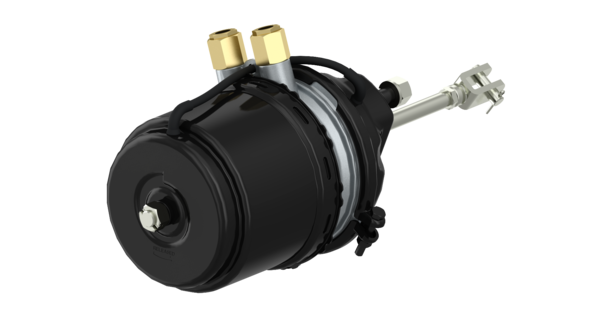

Spring Brake Actuator 24/24
Vehicle application (India): Daimler (Bharat Benz)
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
9254910860
Gross Unit Price:
0.00
Vehicle application (India): Daimler (Bharat Benz)
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
Bolt lengths1.69 in
-
Bolt threadsM16 x 1.5
-
Calculated Volume (dm³)0
-
Clevis pin0.49 in
-
Distance between bolts4.75 in
-
Max. operating pressure145.04 / 145.04 psi
-
Port thread 11M22 x 1.5
-
Push-rod length7.87 in
-
Push-rod threadM14 x 1.5
-
Release pressure71.07 psi
-
Stroke2.52 / 2.52 in
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
Total lenght10.98 in
-
Type24/24
-
Type of operationCam
-
VersionWith boot
-
YokeScrewed
-
GTIN04057875814917
-
UPC193133521938
-
Weight (kg)0
-
Weight (lb)0
Doc Type
installation_instruction
Locale
multi
Artical Number
doc000132ml
Service & Repair
List of Spare Parts
| 1 | Cylinder cover | 1 | ||
| 2 | Spring Washer DIN6888-16.5x27.4x3.5 | 2 | ||
| 3 | Hexagon Nut DIN934-M16x1,5 | 2 | 8103040314 | |
| 4 | Locking nut | 1 | 8919900074 | |
| 5 | Boot | 1 | 9254913742 9254919282 | |
| 6 | Sleeve | 1 | ||
| 7 | Fork | 1 | 9254914202 | |
| 8 | Pin | 1 | 8920100084 | |
| 9 | Splint | 1 | 9254913742 9254919282 | 8105110274 |
| 10 | Valve | 1 | 9254913742 9254919282 | |
| 11 | Hose nipple | 2 | 9254919282 | |
| 12 | Tube | 1 | 9254919282 | |
| 13 | Dust Cap | 1 | 9254913742 9254919282 | |
| 14 | Hose Clamp | 1 | ||
| 15 | Hexagon Head Screw ISO4017-M8x50 | 1 | 8101263284 | |
| 16 | Hexagon Nut DIN934-M8 | 1 | 8103041114 | |
| 17 | Conical Compression Spring | 1 | 8960500154 | |
| 18 | Piston | 1 | ||
| 19 | Diaphragm | 1 | 9254913742 9254919282 | 8971205354 |
| 20 | Plug | 1 | ||
| 21 | O-Ring, dynamical | 1 | 9254919282 | |
| 22 | Guide Ring | 1 | 9254919282 | |
| 23 | Flange | 1 | ||
| 24 | Tapping Screw M6x12 | 1 | 9254919282 | |
| 25 | O-Ring, statical | 1 | 9254919282 | |
| 26 | Sealing | 1 | 9254919282 | |
| 27 | Bearing | 1 | 9254919282 | |
| 28 | Piston | 1 | ||
| 29 | Plate | 1 | ||
| 30 | Barrel Spring | 1 | ||
| 31 | Rod | 1 | ||
| 32 | Spring Brake cylinder | 1 | ||
| 33 | Washer, sealing type | 1 | 9254919282 | |
| 34 | Nut, special type | 1 | 9254919282 | 8919900104 |
| 35 | Pin | 1 | 9254919282 | |
| 36 | O-Ring, statical | 2 | ||
| 37 | Adapter, Union | 2 | ||
| 38 | Spring Retainer | 2 | ||
| 39 | Retaining Ring | 2 | 8952266974 | |
| 40 | Pressure screw | 2 | 8932204272 |
