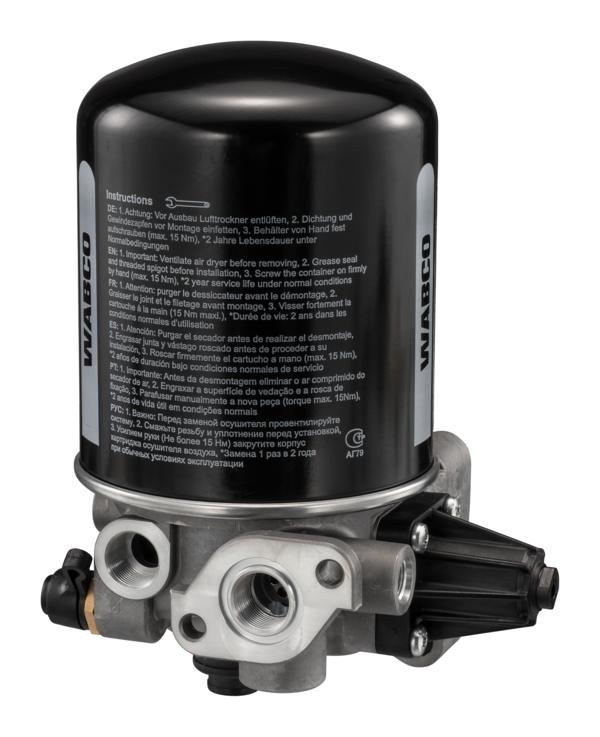

Air Dryer (Single Cannister)
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
9324000140
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
Calculated Volume (dm³)8.3916
-
Cartridge typeDesiccant Cartridge
-
Cut-out pressure166.79 psi
-
ExhaustJED-463-1
-
Heating connectionBayonet DIN 72585-A1-2.1-1-Sn/K2
-
Max. operating pressure188.5 psi
-
Opening pressure210.31 psi
-
Operating pressure188.5 psi
-
Operational range21.76 psi
-
Port thread 11M22 x 1.5
-
Port thread 12M12 x 1.5
-
Port thread 21M22 x 1.5
-
Port thread 22M16 x 1.5 JED - 388
-
Port thread 23Tire inflation device M16 x 1.5
-
Port thread 24M22 x 1.5 JED - 388
-
Port thread 3JED-463-1
-
Port thread 4/231/4" - 18 NPTF
-
SilencerNo (432 407 015 0 retrofittable)
-
Technical specificationOE specification
-
Temperature range-40°C to +65°C
-
UnloaderYes
-
Voltage24 V
-
GTIN04057875288527
-
Size (mm x mm x mm)252 x 185 x 180
-
UPC193133359838
-
Weight (kg)5
-
Weight (lb)11.023
Replaces
-
EVOBUSA0004306315
-
MERCEDES-BENZ0004306315
-
MERCEDES-BENZA0004306315
-
SOLARIS1102751105
Doc Type
datasheet
Locale
en
Artical Number
81504983
Service & Repair
List of Spare Parts
| 1 | Body | 1 | ||
| 2 | Washer | 1 | ||
| 3 | Fillister Head Screw ISO14583-M4x8 | 1 | ||
| 4 | O-Ring ISO3601-40,95x2,62 | 2 | 9324000002 | 8977860304 |
| 5 | Valve head | 1 | 9324000002 | 4324102514 |
| 6 | O-Ring ISO3601-14x3 | 1 | 9324000002 | 8970815614 |
| 7 | Valve | 1 | 9324000002 | |
| 8 | Piston | 1 | 9324000002 | |
| 9 | Cylindrical Compression Spring | 1 | 8960496404 | |
| 10 | Washer | 1 | 8951090604 | |
| 11 | Bottom | 1 | 4324105564 | |
| 12 | Retaining ring DIN472-47x1,75 | 1 | 8105180544 | |
| 13 | O-Ring ISO3601-33x5 | 1 | 9324000002 | 8977887204 |
| 14 | Air Dryer Cartridge, compressed-air system | 1 | 4324100202 | |
| 15 | Support | 1 | 4324109322 | 4324083504 |
| 16 | Tapping screw ISO7049-B2,9x6,5 | 1 | 4324109322 | |
| 17 | O-Ring ISO3601-36x2,5 | 1 | 9324000002 4324109322 | 8977829104 |
| 18 | Heating | 1 | 4324109322 | |
| 19 | Screw | 2 | 4324109322 | |
| 20 | Tyre inflation port | 1 | 9324009202 | |
| 21 | Plunger | 1 | 9753037724 | |
| 22 | Valve | 1 | 4324100012 | 8995068992 |
| 23 | Cylindrical Compression Spring | 1 | 8965144304 | |
| 24 | Cap | 1 | 8950725604 | |
| 25 | Cup Seal | 1 | 4324100012 | 8971816604 |
| 26 | Cap | 1 | ||
| 27 | Retaining washer DIN6799-4 | 1 | 4324100012 | 8105190274 |
| 28 | Cover | 1 | 8950725404 | |
| 29 | Cylindrical compression spring | 1 | 8965148704 | |
| 30 | Cover | 1 | ||
| 31 | Adjusting nut | 1 | 9753034304 | |
| 32 | O-Ring ISO3601-13x1 | 1 | 4324100012 | 8970708904 |
| 33 | Cover | 1 | 9753036504 | |
| 34 | Fillister head screw ISO7045-M6x25 | 4 | 8912015704 | |
| 35 | Hex socket set screw DIN914-M6x25 | 1 | ||
| 36 | O-Ring ISO3601-7,3x2,4 | 1 | 9324000002 | 8970800704 |
| 37 | Valve body | 1 | 8995069834 | |
| 38 | Conical compression spring | 1 | 8960536014 | |
| 39 | Washer | 1 | ||
| 40 | Retaining ring DIN472-17x1 | 1 | 9324000002 | |
| 41 | Valve body | 1 | ||
| 42 | Valve | 1 | 9324000002 | |
| 43 | Plunger | 1 | ||
| 44 | Cylindrical compression spring | 1 | ||
| 45 | Adjusting piece | 1 | ||
| 46 | Sealing washer | 1 | 9324000002 | 8970104544 |
| 47 | Clamp ring - 4x15x1,4 | 1 | 8952225004 |
