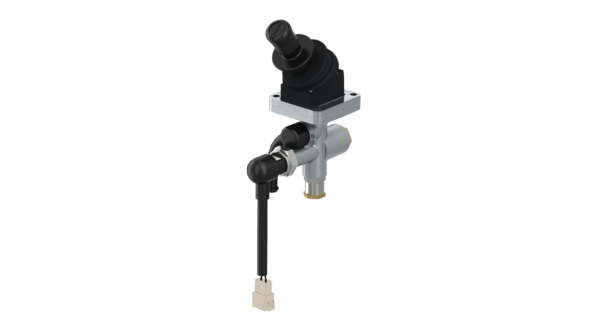

Hand Brake Valve, Truck NON SR
Vehicle application (India): Ashok Leyland
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
9611700780
Gross Unit Price:
0.00
Vehicle application (India): Ashok Leyland
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
Calculated Volume (dm³)2.074
-
Technical specificationOE specification
-
GTIN04057885051371
-
Size (mm x mm x mm)215 x 134 x 72
-
UPC193133511649
-
Weight (kg)0.56
-
Weight (lb)1.235
Doc Type
drawing
Locale
en
Artical Number
9611700780____005_dascheck_-11_page-1---notset
Service & Repair
List of Spare Parts
| 1 | Valve body -PDC M/c with Anodizing | 1 | 100349626 | |
| 2 | Valve Spring-Ghcv(Tata) | 2 | 100336860 | |
| 3 | O-Ring, dynamical | 2 | ||
| 4 | Plunger-Ghcv(Tata) | 1 | 100336720 | |
| 5 | Spring-Ghcv(Tata) | 1 | 100336730 | |
| 6 | O-Ring, dynamical ISO3601-12.37x2.62 | 1 | ||
| 7 | CAM FOLLOWER & ROLLER ASSY | 1 | 100312460 | |
| 8 | Dial- Ghcv (Al) | 1 | ||
| 9 | Cover | 1 | ||
| 10 | Countersunk head screw | 2 | ||
| 11 | Gaiter-Ghcv | 1 | 100334740 | |
| 12 | Sleeve | 1 | 100344160 | |
| 13 | Spring | 1 | ||
| 14 | Knob | 1 | ||
| 15 | Valve (Pwoc)/Ltcont.Valve/Ghcv | 1 | ||
| 16 | Spring Holder | 1 | ||
| 17 | Adapter | 1 | ||
| 18 | Spring Retainer | 1 | ||
| 19 | Retaining Ring | 1 | 8952267064 | |
| 20 | Male Nut | 1 | 8932204282 | |
| 21 | Sealing, square type | 1 | ||
| 22 | Exhaust Banjo-Ghcv | 1 | ||
| 23 | Splint | 1 | ||
| 24 | O-Ring, statical | 1 | ||
| 25 | Washer, special type | 1 | 8951800004 | |
| 26 | Low Pressure switch | 1 | 100252880 | |
| 27 | Wiring Harness | 1 | ||
| 28 | Spring Retainer | 1 | 4611001192 | |
| 29 | Retaining Ring | 1 | 4611001192 | 8952266974 |
| 30 | Pressure screw | 1 | 4611001192 | 8932204272 |
| 31 | O-Ring, statical | 1 | 4611001192 | |
| 33 | O-Ring, statical | 0 |
