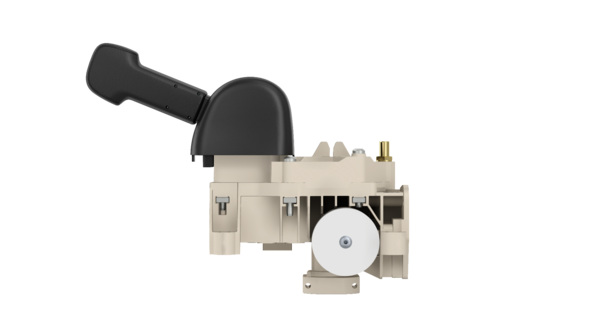

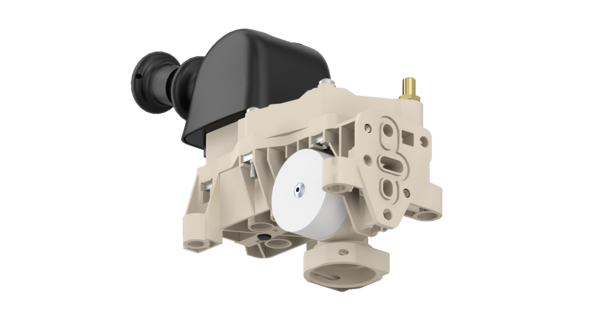

Hand Brake Valve
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
9617241020
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
Actuation angle68°/73°
-
Calculated Volume (dm³)3.933
-
ColorWhite
-
Distance between holes3.39/4.88 in
-
ExhaustSilencer
-
Max. operating pressure152.29 psi
-
Mounting2x Ø 10.4 / 2x Ø 9.4 mm
-
Port thread 1Ø 0.48 in
-
Port thread 21Ø 0.48 in
-
Port thread 22Ø 0.48 in
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
GTIN7895851058484
-
Size (mm x mm x mm)230 x 180 x 95
-
UPC193133021650
-
Weight (kg)0.975
-
Weight (lb)2.15
Replaces
-
SCANIA1882115
Doc Type
market_information
Locale
en
Artical Number
20030
Doc Type
service_information
Locale
en
Artical Number
service-information_hbv_961723xxxx_961724xxxx
Service & Repair
List of Spare Parts
| 1 | Body | 1 | ||
| 2 | Plug | 1 | ||
| 3 | Holder | 1 | 9617233504 | |
| 4 | Torsion spring | 1 | 8962010714 | |
| 5 | Head | 1 | ||
| 6 | Fillister head screw ISO14583-M5x70 | 2 | 9617249272 | |
| 7 | Cam | 1 | ||
| 8 | Bonnet | 1 | ||
| 9 | Bonnet | 1 | ||
| 10 | Cover | 1 | ||
| 11 | Stop | 1 | ||
| 12 | Cylindrical compression spring | 1 | ||
| 13 | Bushing | 2 | ||
| 14 | Bushing | 2 | ||
| 15 | Cylindrical compression spring | 1 | ||
| 16 | Needle | 4 | 9617249272 | 8954103004 |
| 17 | Hand Grip | 1 | ||
| 18 | O-Ring ISO3601-5,7x1,9 | 1 | 9617249272 | |
| 19 | Washer | 1 | ||
| 20 | Cylindrical compression spring | 1 | ||
| 21 | Valve | 1 | 9617249272 | |
| 22 | Cylindrical compression spring | 1 | ||
| 23 | O-Ring ISO3601-28x2,5 | 1 | 9617249272 | |
| 24 | Lower Cartridge | 1 | 9617232014 | |
| 25 | O-Ring ISO3601-12x2 | 1 | 9617249272 | 8970700704 |
| 26 | Piston | 1 | 9617236204 | |
| 27 | Valve | 1 | 9617249272 | |
| 28 | O-Ring ISO3601-12x2 | 1 | 9617249272 | 8970700704 |
| 29 | O-Ring ISO3601-28x2,5 | 1 | 9617249272 | |
| 30 | Higher Cartridge | 1 | 9617232024 | |
| 31 | Cylindrical compression spring | 1 | ||
| 32 | O-Ring ISO3601-8x1,5 | 1 | 9617249272 | |
| 33 | Pushrod | 1 | 9617237304 | |
| 34 | Washer | 1 | ||
| 35 | Washer | 1 | ||
| 36 | Hand Brake Valve | 1 | ||
| 37 | Seal | 1 | 9617249272 | |
| 38 | Cover | 1 | ||
| 39 | Cylindrical compression spring | 1 | ||
| 40 | Fillister head screw ISO14583-M5x40 | 3 | 9617249272 | |
| 41 | Valve piston | 1 | 9617249272 | |
| 42 | O-Ring ISO3601-6,4x1,9 | 1 | 9617249272 | |
| 43 | Nut | 5 | 9617249272 |
