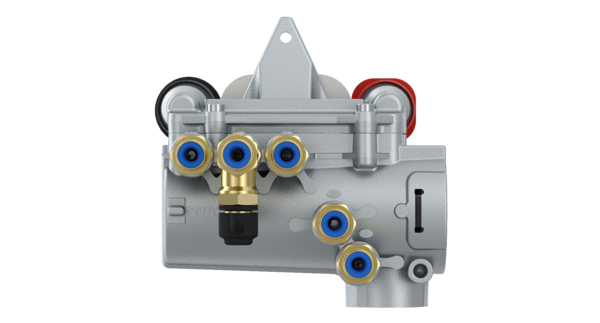

Park Release Emergency Valve
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
9710029127
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO Original
-
Part typePremium original quality
-
Product categoryDevice
-
Calculated Volume (dm³)6.345
-
ColorBlack/Red
-
CommentsExchange unit for 9710029120
-
Max. operating pressure145.0 psi
-
Port thread 1-1Fitting Ø 8 x 1 (893 800 001 2)
-
Port thread 1-2Fitting Ø 8 x 1 (893 129 192 2)
-
Port thread 21Fitting Ø 8 x 1 (893 800 001 2)
-
Port thread 22Fitting Ø 8 x 1 (893 800 001 2)
-
Port thread 4Fitting Ø 8 x 1 (893 800 001 2)
-
Technical specificationOE specification
-
Temperature range-40°C to +65°C
-
VersionWith Test Connection M16 x 1.5
-
GTIN04057875301745
-
Size (mm x mm x mm)174 x 212 x 172
-
UPC193133375517
-
Weight (kg)1.745
-
Weight (lb)3.847
Replaces
-
SCANIA2089929
Doc Type
drawing
Locale
multi
Artical Number
9710029090____053_dascheck_l9_page-1---notset
Service & Repair
List of Spare Parts
| 1 | Body | 1 | ||
| 2 | Gasket | 1 | ||
| 3 | Body | 1 | ||
| 4 | O-Ring ISO3601-15,55x2,62 | 2 | 8970862004 | |
| 5 | O-Ring ISO3601-18,72x2,62 | 4 | 8970861504 | |
| 6 | Sleeve | 1 | ||
| 7 | Circlip | 1 | ||
| 8 | O-Ring ISO3601-10,5x2,7 | 4 | ||
| 9 | Piston | 2 | ||
| 10 | Push button | 1 | 9710029232 | |
| 11 | Screw | 2 | 9710029232 9710029242 | |
| 12 | Sleeve | 1 | ||
| 13 | Push button | 1 | 9710029242 | |
| 14 | Sheet Cover | 2 | 9710029232 9710029242 | |
| 15 | Cheese head screw ISO14580-M6x25 | 4 | ||
| 16 | Sleeve | 1 | ||
| 17 | Lip Seal | 1 | ||
| 18 | O-Ring, statical | 6 | ||
| 19 | Cylindrical Compression Spring | 1 | ||
| 20 | Compression Spring | 1 | ||
| 21 | Valve | 1 | 9710075032 | |
| 22 | O-Ring ISO3601-17x1,5 | 1 | ||
| 23 | Valve seat | 1 | ||
| 24 | Piston | 1 | ||
| 25 | Back-up Ring | 2 | 8996051704 | |
| 26 | Lip seal ring | 2 | 8971563404 | |
| 27 | O-Ring ISO3601-47x2,5 | 4 | 8970706804 | |
| 28 | Bracket Plate | 1 | ||
| 29 | Valve Washer | 1 | 8970179604 | |
| 30 | Disc | 1 | ||
| 31 | Tubular rivet NULL-D=4x9,5LG | 1 | ||
| 32 | Strainer | 2 | 8993602604 | |
| 33 | Port Cover | 1 | 9710021034 | |
| 34 | Screw-in Fitting | 4 | 8938000012 | |
| 35 | Quick Coupling | 1 | 8939203172 | |
| 36 | Fitting | 1 |
