Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
4005001030
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
Calculated Volume (dm³)4.583
-
CommentsWith flange mounted ABS relay valve
-
Max. operating pressure188.5 psi
-
Port thread 12x 3/4 - 14 Dry Seal NPTF
-
Port thread 213x 3/8 - 18 Dry Seal NPTF
-
Port thread 223x 3/8-18 Dry Seal NPTF
-
Port thread 3Flap Exhaust
-
Port thread 41/4" - 18 Dry Seal NPTF
-
Protection classIP 66
-
System4S/3M
-
Technical specificationOE specification
-
Temperature range-40°C to +65°C
-
TypeTCS II Premium
-
VersionPremium, VCS II
-
Voltage12 V
-
GTIN7895851075832
-
Size (mm x mm x mm)225 x 134 x 152
-
UPC193133427872
-
Weight (kg)2.309
-
Weight (lb)5.0905
Replaces
-
FREIGHTLINERTDAS4005001030
-
GOLDHOFER167214
-
GREAT DANE40502933
-
GREAT DANEAB84017
-
HYUNDAI10008471
-
KENWORTHS400-500-103-0
-
MAC TRAILER24900142
-
MACK6300-4005001030
-
MANAC22801002
-
MANAC228-01002
-
PETERBILTS400-500-103-0
-
STOUGHTON46040401400
-
UTILITY TRAILER2S4005001030
-
UTILITY TRAILER3-9350-075
-
UTILITY TRAILER3-9359-075
-
UTILITY TRAILER393500075
-
VANGUARD1ABS00013
-
VANGUARD2ABS00013
-
VOLVOWAB4005001030
-
WABASHRWW4005001030
Doc Type
drawing
Locale
multi
Artical Number
4005001090____053_dascheck_l5_page-1---notset
Doc Type
brochure
Locale
en
Artical Number
tp02118
Doc Type
maintenance_instruction
Locale
en
Artical Number
mm0180
Doc Type
maintenance_instruction
Locale
es
Artical Number
mm0180_14.04 (1)
Service & Repair

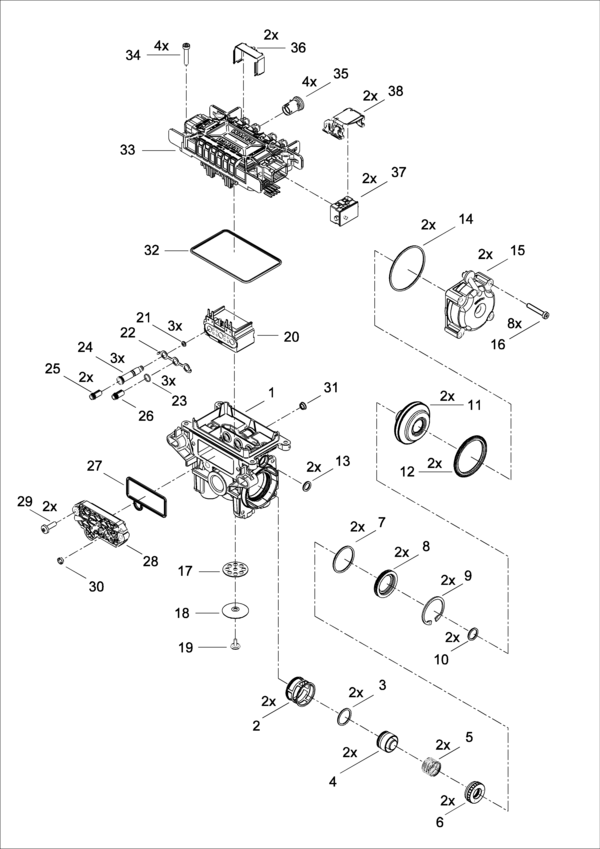

List of Spare Parts
| 1 | Body | 1 | 4008506020 | |
| 2 | Filter | 2 | 4008506020 | 8993812682 |
| 3 | O-Ring ISO3601-21,3x2,4 | 2 | 4008506020 | 8977728174 |
| 4 | Guide | 2 | 4008506020 | 9730111504 |
| 5 | Cylindrical Compression Spring | 2 | 4008506020 | 8965168154 |
| 6 | Valve body | 2 | 4008506020 | |
| 7 | O-Ring ISO3601-37,77x2,62 | 2 | 4008506020 | 8977862704 |
| 8 | Valve Seat | 2 | 4008506020 | |
| 9 | Retaining ring DIN472-42x1,75 | 2 | 4008506020 | |
| 10 | O-Ring ISO3601-15,3x2,4 | 2 | 4008506020 | 8970800404 |
| 11 | Piston | 2 | 4008506020 | |
| 12 | Sealing | 2 | 4008506020 | |
| 13 | O-Ring ISO3601-10,77x2,62 | 2 | 4008506020 | |
| 14 | O-Ring ISO3601-67x2,5 | 2 | 4008506020 | |
| 15 | Cover | 2 | 4008506020 | |
| 16 | Cheese head screw ISO14580-M6x35 | 8 | 4008506020 | |
| 17 | Strainer | 1 | 4008506020 | |
| 18 | Sealing washer | 1 | 4008506020 | |
| 19 | Rivet (M/V) | 1 | 4008506020 | |
| 20 | Coil | 1 | 4008506020 | |
| 21 | O-Ring ISO3601-4,47x1,78 | 3 | 4008506020 | |
| 22 | Clip | 1 | 4008506020 | |
| 23 | O-Ring | 3 | 4008506020 | |
| 24 | Armatur guide | 3 | 4008506020 | |
| 25 | Armatur | 2 | 4008506020 | |
| 26 | Solenoid, Part | 1 | 4008506020 | |
| 27 | Gasket | 1 | 4008506020 | |
| 28 | Cover | 1 | 4008506020 | |
| 29 | Fillister-Head Screw | 2 | 4008506020 | |
| 30 | Valve | 1 | 8995069354 | |
| 31 | Strainer | 1 | 4008506020 | 8993602104 |
| 32 | O-Ring ISO3601-105x3 | 1 | 4008506020 | 8970704094 |
| 33 | Body | 1 | ||
| 34 | Cheese head screw ISO14580-M6x30 | 4 | 4008506020 | 8101640194 |
| 35 | Plug | 4 | 4410320434 | |
| 36 | Strap plate | 2 | 8940708214 | |
| 37 | Plug Housing | 2 | 8941101392 | |
| 38 | Hanger | 2 |
