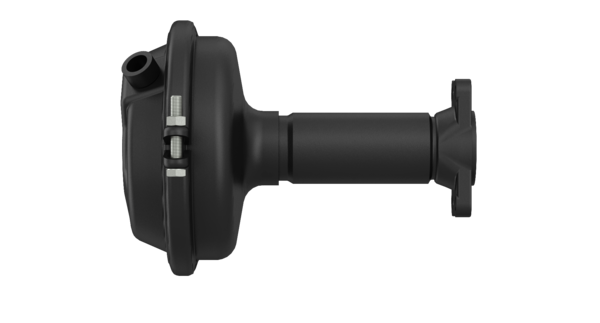

Brake Chamber (Wedge Brakes)

Brake Chamber (Wedge Brakes)
Brake Chamber (Wedge Brakes)
Brake Chamber (Wedge Brakes)
Brake Chamber (Wedge Brakes)
Brake Chamber (Wedge Brakes)
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
4230760400
Gross Unit Price: 0.00
Create an account
You must be logged-in to make a purchase.
Don't have an account yet?
Please register.

Features and Benefits

  • Brand
    WABCO
  • Part type
    Premium original quality
  • Product category
    Device
  • Bolt lengths
    0.98 in
  • Calculated Volume (dm³)
    9
  • Clamp band
    185 mm
  • Clamp band position
    0°
  • Distance between holes
    3.15x1.42 in
  • Max. operating pressure
    147.94 psi
  • Mounting
    4x Ø 10.5 mm
  • Operating pressure
    147.9 psi
  • Opposite
    423 076 041 0
  • Output force
    1978.32 lbf
  • Output force M
    1978.32 lbf
  • Port (side)
    -45°
  • Port (top)
    Rc 3/8" (ISO 7-1)
  • Port threads
    Rc 3/8" (ISO 7-1)
  • Return-spring force
    33.72 lbf
  • Stroke
    2.17 in
  • Technical specification
    OE specification
  • Temperature range
    -40°C to +80°C
  • Total lenght
    9.84 in
  • Type
    24
  • Type of operation
    Wedge
  • Version
    Without boot
  • GTIN
    04057875162247
  • Size (mm x mm x mm)
    250 x 200 x 180
  • UPC
    193133422761
  • Weight (kg)
    4.98
  • Weight (lb)
    10.98
Replaces
  • NISSAN
    44310NA202
  • NISSAN
    44310NA274
  • UD TRUCKS
    44310NA202
  • UD TRUCKS
    44310NA274
  • UD TRUCKS
    44310NA07D
Documents
Name
outline drawing -table (doc 053)
Doc Type
drawing
Locale
multi
Artical Number
4230760490____053_dascheck_d2_page-1---notset
Name
WABCO Product Catalogue
Doc Type
catalog
Locale
en
Artical Number
wabco_product-catalogue

Service & Repair

List of Spare Parts
1 Cylinder 1 4235060142
2 Clamp Ring 24 1 4231063504
3 Hexagon Head Screw ISO4017-M8x50 1 8101263284
4 Hexagon Nut DIN934-M8 1 8103041114
5 Diaphragm 1 4230760002  8971205354
6 Piston 1
7 Retaining ring DIN472-40x1,75 1 4230760002  8105180274
8 Washer DIN433-1-25x39,8x3 1 4230760002
9 Cap type gasket 1 4230760002  8971704912
10 Guide 1 4230760002
11 O-Ring ISO3601-34,2x3 1 4230760002  8970800504
12 Tolerance ring 1
13 Washer 1 4230760002  8951112794
14 Plunger 1 4253507724
15 Guide Ring 1 4230760002  8975514314
16 Plug 3 4230760002  4230060404
17 Cylinder cover 1
