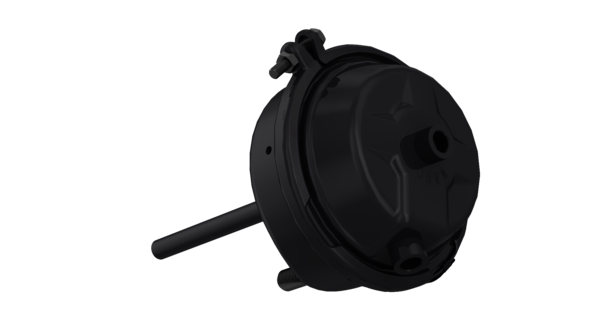

Brake Chamber (Cam Brakes)

Brake Chamber (Cam Brakes)
Brake Chamber (Cam Brakes)
Brake Chamber (Cam Brakes)
Brake Chamber (Cam Brakes)
Brake Chamber (Cam Brakes)
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
4231059000
Gross Unit Price: 0.00
Create an account
You must be logged-in to make a purchase.
Don't have an account yet?
Please register.

Features and Benefits

  • Brand
    WABCO
  • Part type
    Premium original quality
  • Product category
    Device
  • Bolt lengths
    1.36 in
  • Bolt threads
    M16 x 1.5
  • Calculated Volume (dm³)
    9.8
  • Clamp band
    174 mm
  • Clamp band position
    -45°
  • Distance between bolts
    4.75 in
  • Max. operating pressure
    123.28 psi
  • Operating pressure
    123.3 psi
  • Output force
    1843.43 lbf
  • Output force M
    1843.43 lbf
  • Port (side)
    M16 x 1.5 JED-152
  • Port (top)
    M16 x 1.5 JED-152
  • Port angle
    180°
  • Port threads
    M16 x 1.5
  • Push-rod length
    7.32 in
  • Push-rod thread
    M16 x 1.5
  • Return-spring force
    22.48 lbf
  • Stroke
    2.95 in
  • Technical specification
    OE specification
  • Temperature range
    -40°C to +80°C
  • Thread length
    7.32 in
  • Total lenght
    5.28 in
  • Type
    20
  • Type of operation
    Cam
  • Version
    Without boot
  • Yoke
    Without
  • GTIN
    04057875163251
  • Size (mm x mm x mm)
    175 x 175 x 320
  • UPC
    193133422808
  • Weight (kg)
    3.081
  • Weight (lb)
    6.7924
Replaces
  • ALEXANDER DENNIS
    4321059000
  • BENALU
    605109100
  • DAF
    0834482
  • DAF
    834482
  • EVOBUS
    A6994200724
  • EVOBUS
    A6984203721
  • FAYMONVILLE
    0941
  • FELDBINDER
    006677
  • FRUEHAUF
    ASX0014019
  • GOLDHOFER
    200260
  • HENDRICKSON
    NB1759
  • IVECO
    3345107R1
  • IVECO
    34140
  • IVECO
    00034140
  • KEMPF
    2001006
  • KRONE
    945154
  • KRONE
    50945154
  • KÖGEL
    175202
  • KÖGEL
    79302
  • LANGENDORF
    1109374
  • LEYLAND DAF
    834482
  • LEYLAND DAF
    BBU5931
  • LIEBHERR
    502918601
  • LOHR
    A05010104
  • MAN
    81511016076
  • MAN
    81511016077
  • MAN
    81511016078
  • MAN
    81511016079
  • MAN
    81511016199
  • MAN
    81511019076
  • MERCEDES-BENZ
    0024206518
  • MERCEDES-BENZ
    6994200724
  • MERCEDES-BENZ
    6984203721
  • MERCEDES-BENZ
    A6984203721
  • MERCEDES-BENZ
    A6994200724
  • MERCEDES-BENZ
    A6994203721
  • MERCEDES-BENZ
    6994203721
  • MERITOR
    S4231059000
  • NEOPLAN
    07010020
  • NOOTEBOOM
    305050
  • PACCAR
    0834482
  • RENAULT
    5021170049
  • SAF
    4454112600
  • SCANIA
    1738479
  • SCHMITZ CARGOBULL
    051009
  • SCHMITZ CARGOBULL
    1020753
  • SCHWARZMÜLLER
    3551
  • SEDDON ATKINSON
    3345107R1
  • STEYR
    99000360485
  • VOLVO
    526031200000
  • VOLVO
    BBU5931
  • VOLVO
    WA4231059000
Documents
Name
outline drawing (doc 005)
Doc Type
drawing
Locale
multi
Artical Number
4231059000____005_dascheck_g1_page-1---notset
Name
Pneumatic Brake Equipment for Trailer Vehicles Product Catalogue
Doc Type
catalog
Locale
en
Artical Number
81500343
Name
Pneumatic Braking System Agriculture and Forestry
Doc Type
catalog
Locale
en
Artical Number
81500823
Name
North America Service Parts Catalog
Doc Type
catalog
Locale
en
Artical Number
pb19028
Name
WABCO Product Catalogue
Doc Type
catalog
Locale
en
Artical Number
wabco_product-catalogue

Service & Repair

List of Spare Parts
1 Cylinder 1
2 Hose Clamp 1 4231053504
3 Hexagon Head Screw ISO4017-M8x50 1 8101263284
4 Hexagon Nut DIN934-M8 1 8103041114
5 Diaphragm 70 1 8971205264
6 Piston 1
7 Cover 1 8950712604
8 Conical Spring 1 8960536344
9 Flange 1 4231066064
10 Plain Washer 1 8950930054
11 Cylinder cover 1
