AD SysS 1800P-w/TCV w/coal
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
4324210540
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
Calculated Volume (dm³)14.293
-
Cartridge typeDesiccant Cartridge
-
CommentsTurbo-cut-off valve installed
-
Cut-out pressure114.58 to 130.53 psi
-
ExhaustSnap on contour
-
Heating connection280 METRI-PACK NR.1202 0599
-
Max. operating pressure130.5 psi
-
Opening pressure185.65 psi
-
Port thread 11/2"-14 NPTF
-
Port thread 211/2" - 14 NPTF
-
Port thread 221/4" - 18 NPTF
-
Port thread 3JED- 463-0
-
Port thread 41/4"-18 NPTF
-
Port thread 4/231/4" - 18 NPTF
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
Voltage12 V
-
GTIN04057875949558
-
Size (mm x mm x mm)411 x 184 x 189
-
UPC193133437437
-
Weight (kg)5.116528
-
Weight (lb)11.28
Replaces
-
KENWORTHS4324210540
-
MACK8235-S4324210540
-
MACK6300-4324210540
-
MERITORS4324210540
-
PETERBILTS4324210540
-
VOLVO21255207
-
VOLVOWAB4324210540
Doc Type
maintenance_instruction
Locale
en
Artical Number
mm34
Service & Repair
List of Spare Parts
| 1 | Body | 1 | ||
| 2 | O-Ring ISO3601-40,95x2,62 | 2 | 8977860304 | |
| 3 | Valve head | 1 | 4324102514 | |
| 4 | O-Ring ISO3601-14x3 | 1 | 8970815614 | |
| 5 | Valve | 1 | 8995062604 | |
| 6 | Piston | 1 | 4324106224 | |
| 7 | Washer | 2 | 8951090604 | |
| 8 | Washer | 3 | 8951052734 | |
| 9 | Cylindrical Compression Spring | 1 | 8965166134 | |
| 10 | Bottom | 1 | 4324105522 | |
| 11 | Retaining ring DIN472-47x1,75 | 1 | 8105180544 | |
| 12 | O-Ring ISO3601-19,2x3 | 2 | 8970800104 | |
| 13 | Valve body | 1 | ||
| 14 | Cylindrical compression spring | 1 | ||
| 15 | Cover | 1 | ||
| 16 | Retaining Ring | 1 | ||
| 17 | Protection Cap | 1 | 8977533604 | |
| 18 | O-Ring ISO3601-7,3x2,4 | 1 | 8970800704 | |
| 19 | Valve body | 1 | 8995069834 | |
| 20 | Conical compression spring | 1 | 8960536014 | |
| 21 | Washer | 1 | ||
| 22 | Retaining ring DIN472-17x1 | 1 | ||
| 23 | Safety Valve | 1 | 9346060010 | |
| 24 | Heater 12V | 1 | ||
| 25 | Kit: Switch | 1 | 4324139232 | 8940409402 |
| 26 | Support | 1 | 4324139232 | 4324083504 |
| 27 | Tapping screw ISO7049-B2,9x6,5 | 1 | 4324139232 | |
| 28 | O-Ring ISO3601-36x2,5 | 1 | 4324139232 | 8977829104 |
| 29 | Male Connection | 1 | 4324139232 | |
| 30 | Screw | 2 | 4324139232 | |
| 31 | Threaded fitting | 1 | 4324139232 | |
| 32 | O-Ring ISO3601-33x5 | 1 | 8977887204 | |

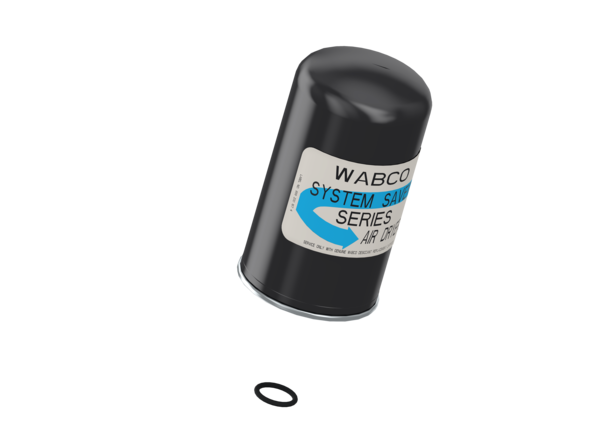

| 33 | Desiccant Cartridge | 1 | 4324100802 |
