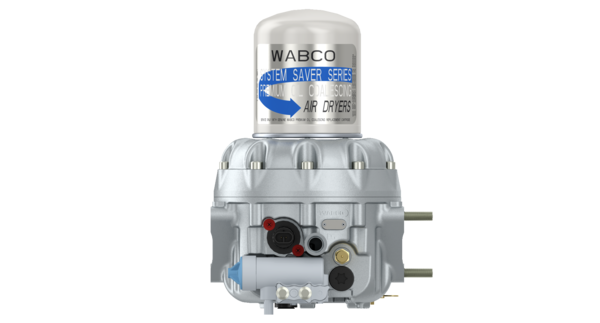

AD SysS MCP w/TCV w/coal w/studs RH Pac
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
4324752020
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
Calculated Volume (dm³)51.041
-
Cartridge typeCoalescing Cartridge
-
CommentsTurbo-cut-off valve installed
-
Cut-out pressure124.88 to 134.89 psi
-
Max. operating pressure145.0 psi
-
Opening pressure185.65 psi
-
Port thread 213/8" - 18 NPTF
-
Port thread 223/8" - 18 NPTF
-
Port thread 233/8" - 18 NPTF
-
Port thread 243/8" - 18 NPTF
-
Port thread 4/231/4" - 18 NPTF
-
Technical specificationOE specification
-
Temperature range-40°C to +65°C
-
Voltage12 V
-
GTIN04057876041886
-
Size (mm x mm x mm)473 x 327 x 330
-
UPC193133437994
-
Weight (kg)11.453221
-
Weight (lb)25.25
Replaces
-
KENWORTHS432-475-202-0
-
MERITORS4324752020
-
PETERBILTS432-475-202-0
Doc Type
maintenance_instruction
Locale
en
Artical Number
mm34
Doc Type
maintenance_instruction
Locale
en
Artical Number
tp16103
Service & Repair
List of Spare Parts
| 1 | Body | 1 | ||
| 2 | Desiccant and Oil Separator Cartridge | 1 | 4329012252 | |
| 3 | O-Ring ISO3601-33x5 | 1 | 8977887204 | |
| 4 | Valve body | 2 | ||
| 5 | Valve Seat | 1 | ||
| 6 | Retaining Ring DIN472-24x1,2 | 1 | 8105180154 | |
| 7 | O-Ring ISO3601-20x2 | 1 | 8970710304 | |
| 8 | O-Ring ISO3601-9x2,5 | 2 | ||
| 9 | Conical Compression Spring | 2 | ||
| 10 | Screening plate | 2 | 8993212104 | |
| 11 | Tapped boss | 1 | ||
| 12 | Cheese head screw ISO4762-M10x65 | 10 | ||
| 13 | Cover | 1 | ||
| 14 | Pipeline | 1 | ||
| 15 | O-Ring ISO3601-27x2 | 2 | ||
| 16 | Threaded piece | 1 | ||
| 17 | O-Ring ISO3601-11x2 | 1 | 8977715604 | |
| 18 | Seal | 1 | ||
| 19 | Cap Seal | 4 | 8971815314 | |
| 20 | Spring Seat | 4 | 8950736174 | |
| 21 | Compression Spring | 4 | ||
| 22 | Cap | 4 | 8950735854 | |
| 23 | Cover | 2 | ||
| 24 | Fillister head screw ISO14583-M6x20 | 8 | ||
| 25 | Hex socket set screw DIN914-M6x30 | 4 | ||
| 26 | Valve | 2 | ||
| 27 | Support | 1 | 4324139232 | 4324083504 |
| 28 | Tapping screw ISO7049-B2,9x6,5 | 1 | 4324139232 | |
| 29 | O-Ring ISO3601-36x2,5 | 1 | 4324139232 | 8977829104 |
| 30 | Heater cartridge | 1 | 4324139232 | |
| 31 | Kit: Switch | 1 | 4324139232 | 8940409402 |
| 32 | Male Connection | 1 | 4324139232 | |
| 33 | Screw | 2 | 4324139232 | |
| 34 | O-Ring ISO3601-6x1,0 | 2 | ||
| 35 | Fillister head screw ISO14583-M6x8 | 2 | ||
| 36 | O-Ring ISO3601-9,75x1,78 | 2 | 4324709202 | |
| 37 | Governor | 1 | 4324709202 | |
| 38 | Hexagon Flange Bolt DIN6921-M8x70 | 2 | 4324709202 | |
| 39 | Safety Valve | 1 | 9346060020 | |
| 40 | O-Ring ISO3601-16,3x2,4 | 1 | ||
| 41 | O-Ring ISO3601-23x2 | 1 | 8970827904 | |
| 42 | Valve Seat | 1 | ||
| 43 | O-Ring ISO3601-14x3 | 1 | 8970815614 | |
| 44 | Valve head | 1 | 4324139292 4324130752 | 4324102514 |
| 45 | Valve | 1 | 4324139292 4324130752 | 8995062604 |
| 46 | Piston | 1 | 4324139292 4324130752 | 4324106224 |
| 47 | Washer | 1 | 4324139292 4324130752 | 8951090604 |
| 48 | Cylindrical Compression Spring | 1 | 4324139292 4324130752 | 8965166134 |
| 49 | Washer | 1 | 4324139292 4324130752 | 8951052734 |
| 50 | O-Ring ISO3601-40,95x2,62 | 2 | 4324139292 4324130752 | 8977860304 |
| 51 | Bottom | 1 | 4324139292 | 4324105522 |
| 52 | Retaining ring DIN472-47x1,75 | 1 | 4324139292 4324130752 | 8105180544 |
| 53 | Drain Valve | 1 | ||
| 54 | O-Ring ISO3601-28x2,5 | 1 | 4324709212 | |
| 55 | Piston | 1 | 4324709212 | |
| 56 | O-Ring ISO3601-19,3x2,4 | 1 | 4324709212 | |
| 57 | O-Ring ISO3601-29,1x2,55 | 1 | 4324709212 | |
| 58 | Insert | 1 | 4324709212 | |
| 59 | Cover | 1 | 4324709212 | |
| 60 | Retaining ring DIN472-36x1,5 | 1 | 4324709212 |
