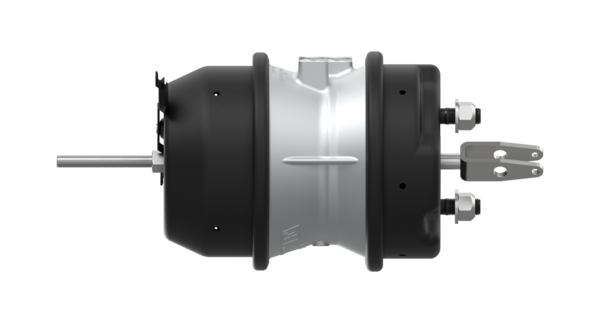

Double Diaphragm Tristop 30/30
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
9253920020
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
Bolt lengths1.50 in
-
Bolt threads5/8'' - 11 UNC
-
Calculated Volume (dm³)0
-
Clevis pin0.51 in
-
Distance between bolts4.75 in
-
Max. operating pressure145.0 psi
-
Port angle45°
-
Port thread 113/8" - 18 NPTF
-
Port thread 123/8" - 18 NPTF
-
Push-rod length3.55 in
-
Release pressure66.72 psi
-
Stroke2.99 in
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
Total lenght14.29 in
-
Type30/30
-
Type of operationCam
-
VersionWithout boot
-
GTIN04057875325741
-
UPC193133349389
-
Weight (kg)9.36
-
Weight (lb)20.6
Replaces
-
FREIGHTLINERWAB9253920020
Doc Type
drawing
Locale
multi
Artical Number
9253920020____053_dascheck_l8_page-1---notset
Doc Type
installation_instruction
Locale
multi
Artical Number
doc000132ml
Service & Repair
List of Spare Parts
| 1 | Cylinder Cover T30 | 1 | ||
| 2 | Washer | 2 | ||
| 3 | Locking nut | 2 | ||
| 4 | Hexagon Nut | 1 | ||
| 5 | Flange | 1 | 4231062382 4231062392 4231090982 4231091052 9254913032 9254913042 9254990582 | |
| 6 | Plain Washer | 1 | 4231062382 4231062392 4231090982 4231091052 9254913032 9254913042 9254990582 | 8950930054 |
| 7 | Conical Compression Spring | 1 | 8960500154 | |
| 8 | Piston | 1 | ||
| 9 | Diaphragm T30 | 1 | ||
| 10 | Piston Rod | 1 | ||
| 11 | Guide | 2 | ||
| 12 | Lip seal ring | 1 | ||
| 13 | Flange | 1 | ||
| 14 | Bolt | 1 | 9253921422 | |
| 15 | Washer 14x35x3 | 1 | 9253921422 | |
| 16 | Hexagon Nut | 1 | 9253921422 | |
| 17 | Diaphragm, metal | 1 | ||
| 18 | Spring guide | 1 | ||
| 19 | Spring | 1 | ||
| 20 | Spring guide | 1 | ||
| 21 | Cylinder | 1 | ||
| 22 | Rivet | 1 | ||
| 23 | Dust Plug | 1 | 9253840192 |
