Air Processing Unit
Vehicle application (India): TATA
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
9325000350
Gross Unit Price:
0.00
Vehicle application (India): TATA
Features and Benefits
-
BrandWabco Original
-
Part typePremium original quality
-
Product categoryDevice
-
Air dryer4324159040
-
Back flow5.1 psi
-
Calculated Volume (dm³)20.68
-
Closing pressure dynamic 2187.0 psi
-
Closing pressure dynamic 2287.0 psi
-
Closing pressure dynamic 2387.0 psi
-
Closing pressure dynamic 2487.0 psi
-
CommentsNo MCPV pressure sensor
-
Cut-out pressure123.28 psi
-
Heating connectionKostal M27 x 1
-
MCPV9347141510
-
Max. operating pressure145.0 psi
-
Opening pressure 2194.27 psi
-
Opening pressure 2294.27 psi
-
Opening pressure 23108.78 psi
-
Opening pressure 2494.27 psi
-
Operational range10.15 psi
-
Port thread 21M16 x 1.5
-
Port thread 22M16 x 1.5
-
Port thread 23M16 x 1.5
-
Port thread 24M16 x 1.5
-
SilencerSilencer 432 407 015 0
-
Technical specificationOE specification
-
Temperature range-40°C to +65°C
-
Variable Nominal Flow Rate16.00 - 35.00 (L/min)
-
Voltage24 V
-
GTIN04057875288763
-
Size (mm x mm x mm)207 x 300 x 333
-
UPC193133359968
-
Weight (kg)5.5
-
Weight (lb)12.13
Replaces
-
ASHOK LEYLAND445332079
-
BEIBEN5114310415
-
CAMC3511ADQ-010
-
DONGFENG (DFM)3543010-KG1X0
-
FAW3515010D399AW
-
FAW3515010-Q395
-
FAW3515015-391
-
FAWS3511010-Z5
-
FOTON1338135643002
-
FOTON15290356F0002
-
FOTON1,33814E+12
-
HIGER35G42-11010
-
KING LONG35G4211010
-
KING LONG35G42-11010
-
SAIC-IVECO HONGYAN3506-710635
-
SAIC-IVECO HONGYAN580 152 757 7
-
SINOTRUK (CNHTC)WG9725360851
-
SINOTRUK (CNHTC)WG9725360851/1
-
SINOTRUK (CNHTC)WG97253608513
Doc Type
drawing
Locale
multi
Artical Number
9325000350____005_dascheck_f5_page-1---notset
Service & Repair

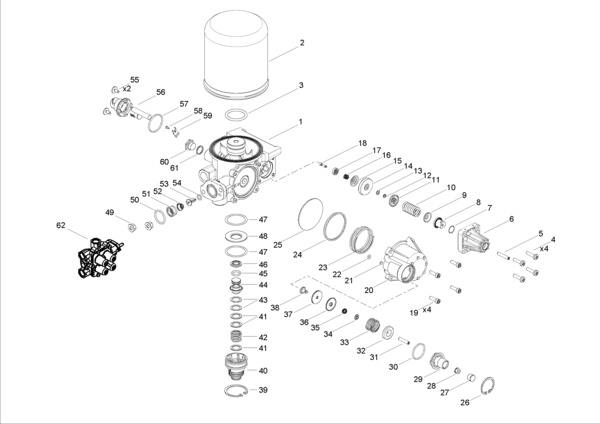

List of Spare Parts
| 1 | Body | 1 | ||
| 2 | Air Dryer Cartridge, compressed-air system | 1 | 4324102412 | |
| 3 | O-Ring ISO3601-33x5 | 1 | 8977887204 | |
| 4 | Fillister head screw ISO7045-M6x25 | 4 | 8912015704 | |
| 5 | Hex Socket Set Screw DIN914-M6x35 | 1 | 8102080164 | |
| 6 | Cover | 1 | 9753036504 | |
| 7 | O-Ring ISO3601-13x1 | 1 | 8970708904 | |
| 8 | Adjusting nut | 1 | 9753034304 | |
| 9 | Cover | 1 | ||
| 10 | Cylindrical Compression Spring | 1 | 8965144104 | |
| 11 | Cover | 1 | 8950725404 | |
| 12 | Retaining washer DIN6799-4 | 1 | 8105190274 | |
| 13 | Cap | 1 | ||
| 14 | Cup Seal | 1 | 8971816604 | |
| 15 | Cap | 1 | 8950725604 | |
| 16 | Cylindrical Compression Spring | 1 | 8965144304 | |
| 17 | Valve | 1 | 8995068992 | |
| 18 | Plunger | 1 | 9753037724 | |
| 19 | Cheese head screw ISO4762-M6x20 | 4 | ||
| 20 | Cover | 1 | 4324136514 | |
| 21 | Filter | 1 | ||
| 22 | O-Ring ISO3601-4,3x2,4 | 1 | 8970803004 | |
| 23 | Cylindrical compression spring | 1 | ||
| 24 | Cap | 1 | ||
| 25 | Diaphragm | 1 | 8971321684 | |
| 26 | Retaining ring DIN472-37x1,5 | 1 | 9325002352 | 8105180254 |
| 27 | Plug | 1 | 9325002352 | |
| 28 | Hexagon Nut DIN6923-M6 | 1 | 9325002352 | 8915810004 |
| 29 | Guide | 1 | ||
| 30 | O-Ring ISO3601-32x2,5 | 1 | 9325002352 | 8977705804 |
| 31 | Hex socket set screw DIN914-M6x30 | 1 | 9325002352 | |
| 32 | Cap | 1 | 9325002352 | |
| 33 | Cylindrical compression spring | 1 | 9325002352 | |
| 34 | Cap | 1 | 9325002352 | |
| 35 | Cylindrical Compression Spring | 1 | 9325002352 | 8960419304 |
| 36 | Cap | 1 | 9325002352 | |
| 37 | Valve | 1 | 9325002352 | |
| 38 | Valve body | 1 | 9325002352 | |
| 39 | Retaining ring DIN472-47x1,75 | 1 | 8105180544 | |
| 40 | Bottom | 1 | 4324105564 | |
| 41 | Washer | 3 | 8951052734 | |
| 42 | Cylindrical Compression Spring | 1 | 8965144204 | |
| 43 | Washer | 2 | 8951090604 | |
| 44 | Piston | 1 | 4324106224 | |
| 45 | O-Ring ISO3601-14x3 | 1 | 8970815614 | |
| 46 | Valve | 1 | 8995062604 | |
| 47 | O-Ring ISO3601-40,95x2,62 | 2 | 8977860304 | |
| 48 | Valve head | 1 | 4324102504 | |
| 49 | Self locking nut DIN980-VM8 | 2 | ||
| 50 | O-Ring ISO3601-26,0x3 | 1 | 8970708404 | |
| 51 | Valve Seat | 1 | 4324101414 | |
| 52 | Conical compression spring | 1 | 8960536014 | |
| 53 | Valve body | 1 | 8995069834 | |
| 54 | O-Ring ISO3601-7,3x2,4 | 1 | 8970800704 | |
| 55 | Screw | 2 | ||
| 56 | Heating | 1 | ||
| 57 | O-Ring ISO3601-36x2,5 | 1 | 8977829104 | |
| 58 | Tapping screw ISO7049-B2,9x6,5 | 1 | ||
| 59 | Support | 1 | 4324083504 | |
| 60 | screw plug | 1 | 8930117114 | |
| 61 | Sealing Ring DIN7603-A16x20 | 1 | 8114010574 | |
| 62 | Quadruple Protection Valve | 1 | 9347141510 |
