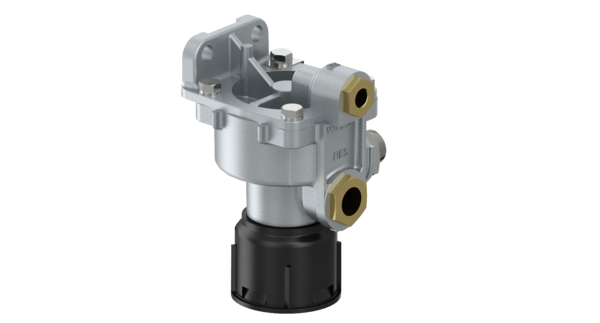

Relay valve, RG2
Vehicle application (India): TATA
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
9732981240
Gross Unit Price:
0.00
Vehicle application (India): TATA
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
Calculated Volume (dm³)0
-
ExhaustSnap on contour JED - 463
-
Max. operating pressure145.04 psi
-
Mounting2x Ø 8.8 mm
-
Opening pressure5.80 psi
-
Port thread 1M22 x 1.5
-
Port thread 2M18 x 1.5
-
Port thread 4M16 x 1.5
-
Predominance5.80 psi
-
Regulating ratio1:1
-
Silencer9732985342
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
VersionPressure reduction
-
GTIN04057875304470
-
UPC193133378600
-
Weight (kg)0.001
-
Weight (lb)0.0022046
Doc Type
drawing
Locale
en
Artical Number
9732981240____005_dascheck_c5_page-1---notset
Doc Type
drawing
Locale
en
Artical Number
9732980180____005_dascheck_d5_page-1---notset
Service & Repair
List of Spare Parts
| 1 | Body | 1 | ||
| 2 | O-Ring, dynamical | 1 | 4725000142 | |
| 3 | Piston | 1 | ||
| 4 | O-Ring, dynamical | 1 | 4725000142 | |
| 5 | Cover | 1 | 9739090124 | |
| 6 | Spring washer | 4 | 8950100464 | |
| 7 | Hexagon Head Screw, special | 4 | ||
| 8 | Spring Retainer | 1 | 4725000142 | |
| 9 | Retaining Ring | 1 | 4725000142 | 8952267064 |
| 10 | Male Nut | 1 | 4725000142 | 8932204282 |
| 11 | Kit: Fitting | 1 | 4725000142 | 4611001192 |
| 11 | Spring Retainer | 1 | 4725000142 | |
| 12 | Retaining Ring | 1 | 4725000142 | 8952266974 |
| 12 | Kit: Fitting | 1 | 4725000142 | 4611001192 |
| 13 | Pressure screw | 1 | 4725000142 | 8932204272 |
| 13 | Kit: Fitting | 1 | 4725000142 | 4611001192 |
| 14 | Valve | 1 | 4725000142 | |
| 15 | Valve guide | 1 | 4725000142 | |
| 16 | Compression Spring, special | 1 | 4725000142 | |
| 17 | Filter | 1 | 4725000142 | |
| 18 | O-Ring, dynamical | 1 | 4725000142 | |
| 19 | O-Ring, dynamical | 1 | 4725000142 | |
| 20 | Retainer Ring | 1 | ||
| 21 | Retainer Ring | 1 | ||
| 22 | Body | 1 | 4725000142 | |
| 23 | Mesh | 1 | 4725000142 | |
| 24 | Cover | 1 | 4725000142 | |
| 25 | Adapter | 1 | ||
| 26 | O-Ring, statical | 1 | ||
| 27 | O-Ring, statical | 1 | 4725000142 | |
| 28 | O-Ring, statical | 1 | 4725000142 | |
| 29 | O-Ring, statical | 3 | 4725000142 | |
| 29 | Kit: Fitting | 1 | 4725000142 | 4611001192 |
| 30 | Kit: Fitting | 1 | 4725000142 | 4611001192 |
| 30 | O-Ring, statical | 3 | 4725000142 | |
| 31 | O-Ring, statical | 4 | 4725000142 |
