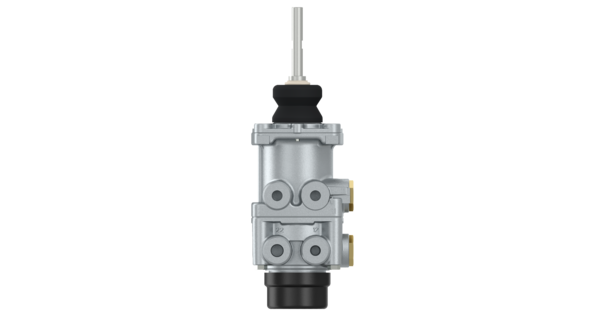

脚制动阀
Vehicle application (India): Daimler (Bharat Benz)
Twin-Cyl.Compressor 704cc,flangemounted
材料编号:
4611000130
毛单价:
0.00
Vehicle application (India): Daimler (Bharat Benz)
Features and Benefits
-
品类WABCO
-
产品型号高端原配质量
-
技术标准OE标准
-
产品类别设备
-
主导压力0.20 bar
-
容积计算值（dm³）0
-
排出消声器
-
支架4x Ø 9.0 mm
-
最大工作压力10.0 bar
-
温度范围-40°C to +80°C
-
端口螺纹 11M22 x 1.5
-
端口螺纹 12M22 x 1.5
-
端口螺纹 21M22 x 1.5
-
端口螺纹 22M22 x 1.5
-
UPC193133515760
-
全球贸易项目代码04057885020230
-
重量 (kg)0
-
重量 (lb)0
服务&维修
配件列表
| 1 | 车身 | 1 | ||
| 2 | 弹簧 | 2 | 4611001042 | 100632780 |
| 3 | O-Ring, dynamical ISO3601-25.07x2.62 | 2 | 4611001042 | |
| 4 | 滤清器 | 2 | 4611001042 | |
| 5 | O-Ring, statical | 2 | 4611001042 | |
| 6 | 阀 | 2 | 4611001042 | |
| 7 | Wire clip | 1 | ||
| 8 | O-Ring, dynamical ISO3601-15.55X2.62 | 2 | 4611001042 | |
| 9 | O-Ring, dynamical | 2 | 4611001042 | |
| 10 | 活塞总成 | 1 | 100610320 | |
| 11 | O-Ring, statical | 1 | 4611001042 | |
| 12 | 车身 | 1 | ||
| 13 | Hexagon Head Screw | 4 | ||
| 14 | O-Ring, dynamical | 1 | 4611001042 | |
| 15 | Exhauster | 1 | 100632760 | |
| 16 | Wire clip | 1 | ||
| 17 | 滤清器 | 1 | 4611001202 | |
| 18 | 盖板 | 1 | 4611001202 | |
| 19 | 弹簧 | 1 | 100630230 | |
| 20 | 导环 | 2 | 4611001042 | |
| 21 | 活塞总成 | 1 | 100630162 | |
| 22 | O-Ring, dynamical | 1 | 4611001042 | |
| 23 | Rubber spring | 1 | 4611001042 | |
| 24 | Spring washer | 1 | 4611001042 | |
| 25 | Plunger | 1 | 100630190 | |
| 26 | Retaining ring DIN472-45x1,75 | 1 | ||
| 27 | 间隔垫圈 | 1 | 100630240 | |
| 28 | Protection Hood | 1 | 4611001042 | |
| 29 | 止动环 | 1 | 8952212104 | |
| 30 | 支承板 | 1 | ||
| 31 | Countersunk Head Screw M4x16 | 2 | ||
| 32 | Protection Hood | 1 | 100631610 | |
| 33 | 支座 | 1 | ||
| 34 | Plunger | 1 | 4611001042 | |
| 35 | Washer 14,2x22,1x2,6 | 1 | ||
| 36 | O-Ring, dynamical ISO3601-12.37x2.62 | 1 | ||
| 37 | Stop-Light Switch | 1 | 4410010390 | |
| 38 | Spring Retainer | 4 | 4611001042 | |
| 39 | 止动环 | 4 | 4611001042 | 8952266974 |
| 40 | O-Ring, statical | 4 | 4611001042 | |
| 41 | Pressure screw | 4 | 8932204272 | |
| 42 | O-Ring, statical | 4 | 4611001042 | |
| 43 | O-Ring, statical | 4 | 4611001042 |
