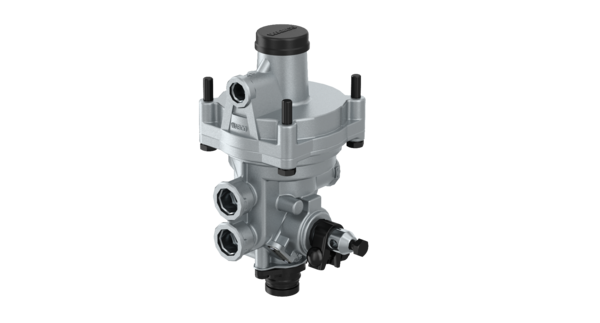

LSV Relay - mechanical
Twin-Cyl.Compressor 704cc,flangemounted
材料编号:
4757100360
毛单价:
0.00
Features and Benefits
-
品类WABCO
-
产品型号高端原配质量
-
技术标准OE标准
-
产品类别设备
-
制动点0.6 bar
-
容积计算值（dm³）3.378
-
总行程-45° to +95°
-
排出Snap-on contour
-
控制压力Max 10 bar
-
控制行程0° to +30°
-
操作类型继动阀
-
支架4x M8
-
最大工作压力10.0 bar
-
温度范围-40°C to +80°C
-
端口螺纹 1M22 x 1.5 JED-388
-
端口螺纹 2M22 x 1.5 JED - 152
-
端口螺纹 4M16 x 1.5 JED - 388
-
结构模型Mechanical
-
螺栓之间的距离84x84 mm
-
调节比例1:8
-
Size (mm x mm x mm)227 x 123 x 121
-
UPC193133483441
-
全球贸易项目代码7895851050617
-
重量 (kg)1.597
-
重量 (lb)3.5208
替代
-
DAF1518124
-
EVOBUSA0014318312
-
MERCEDES-BENZ0014318112
-
MERCEDES-BENZ0014318212
-
MERCEDES-BENZ0014318312
-
MERCEDES-BENZ0014318612
-
MERCEDES-BENZ0014318712
-
MERCEDES-BENZ0014319012
-
MERCEDES-BENZA0014318312
-
PACCAR1518124
-
VOLVO70312058
Doc Type
drawing
Locale
multi
Artical Number
4757100920_-_653_a_01
Doc Type
brochure
Locale
de
Artical Number
4757109543
服务&维修
配件列表
| 1 | 壳体尾端部分 | 1 | ||
| 2 | Cylindrical compression spring | 1 | ||
| 3 | 滚压滚筒 | 1 | 4757101304 | |
| 4 | Plunger | 1 | 4757107704 | |
| 5 | O-Ring ISO3601-4,3x2,4 | 1 | 4757100012 | 8970803004 |
| 6 | O-Ring ISO3601-18,3x2,4 | 1 | 4757100012 | 8970805304 |
| 7 | 阀 | 1 | 4757100012 | 8995058422 |
| 8 | O-Ring ISO3601-49,50x3 | 1 | 4757100012 | 8977726264 |
| 9 | 气门座圈 | 1 | 4757101434 | |
| 10 | Retaining ring DIN472-55x2 | 1 | 8952205204 | |
| 11 | Lip seal ring | 1 | 4757100012 | |
| 12 | 活塞总成 | 1 | 4757106284 | |
| 13 | Retaining ring DIN471-A17x1 | 1 | 4757100012 | |
| 14 | 轴承套圈 | 1 | ||
| 15 | Diaphragm 500 | 1 | 4757100012 | |
| 16 | Inlet ring | 1 | ||
| 17 | 活塞总成 | 1 | ||
| 18 | O-Ring ISO3601-27,3x2,4 | 4 | 4757100012 | 8970803704 |
| 19 | 阀 | 2 | 4757100012 | 8995058304 |
| 20 | 罩帽 | 1 | ||
| 21 | Cylindrical compression spring | 1 | 4757100012 | |
| 22 | 罩帽 | 1 | 4757100012 | 4757100424 |
| 23 | Retaining Ring DIN472-20x1 | 1 | 4757100012 | 8105180124 |
| 24 | Retaining ring DIN472-17x1 | 1 | 4757100012 | |
| 25 | 罩帽 | 1 | ||
| 26 | Cylindrical compression spring | 1 | 4757100012 | |
| 27 | 车身 | 1 | 4757100154 | |
| 28 | 活塞总成 | 1 | ||
| 29 | Cylindrical compression spring | 1 | 8965116904 | |
| 30 | 罩帽 | 1 | ||
| 31 | 活塞总成 | 1 | ||
| 32 | Hex socket set screw DIN914-M5x12 | 1 | ||
| 33 | Retaining ring DIN472-33x1,2 | 1 | ||
| 34 | Protection Cap | 1 | 8980113504 | |
| 35 | 垫片 | 1 | 4757100012 | |
| 36 | Torsion spring | 1 | 8962010124 | |
| 37 | Grooved pin DIN1473-4x24 | 1 | 8105050634 | |
| 38 | Shaft Pedal | 1 | 4757106904 | |
| 39 | Eccentric/cam | 1 | ||
| 40 | O-Ring ISO3601-47,29x2,62 | 1 | 4757100012 | 8977868404 |
| 41 | 盖板 | 1 | ||
| 42 | Fillister head screw ISO7045-M6x14 | 4 | 8912116404 | |
| 43 | Hexagon head screw ISO4017-M8x14 | 1 | ||
| 44 | 罩帽 | 1 | 4757100414 | |
| 45 | 固定件 | 1 | ||
| 46 | Radial Seal | 1 | 4757100012 | 8972080114 |
| 47 | Venting Guide | 1 | 9730022222 | |
| 48 | Hexagon head screw ISO4017-M8x55 | 4 | 8101260714 |
