盘式制动器
Twin-Cyl.Compressor 704cc,flangemounted
材料编号:
40225016
毛单价:
0.00
Features and Benefits
-
品类WABCO
-
产品型号高端原配质量
-
技术标准OE标准
-
产品类别设备
-
刹车盘45 mm
-
容积计算值（dm³）35.775
-
支架4x M12 x 1.5
-
版本号Without Pads
-
电气连接插座
-
直径430.0 mm
-
结构模型PAN 22-1
-
行程26.5 mm
-
装配侧右边
-
Size (mm x mm x mm)461 x 322 x 241
-
UPC193133427728
-
全球贸易项目代码04057875154327
-
重量 (kg)30.144
-
重量 (lb)66.4561
替代
-
DAF877934
-
DAF0877934
-
PACCAR0877934
-
SAF4080005000
-
SCANIA2093077
-
SCHWARZMÜLLER79822
-
VOLVOWA40225016
Doc Type
drawing
Locale
multi
Artical Number
6402250150____053_dascheck_s3_page-1---notset
Doc Type
brochure
Locale
en
Artical Number
zf_reman_core_return_guidelines
Doc Type
catalog
Locale
en
Artical Number
pb19028
Doc Type
maintenance_instruction
Locale
de
Artical Number
81500663
Doc Type
market_information
Locale
en
Artical Number
10140
服务&维修

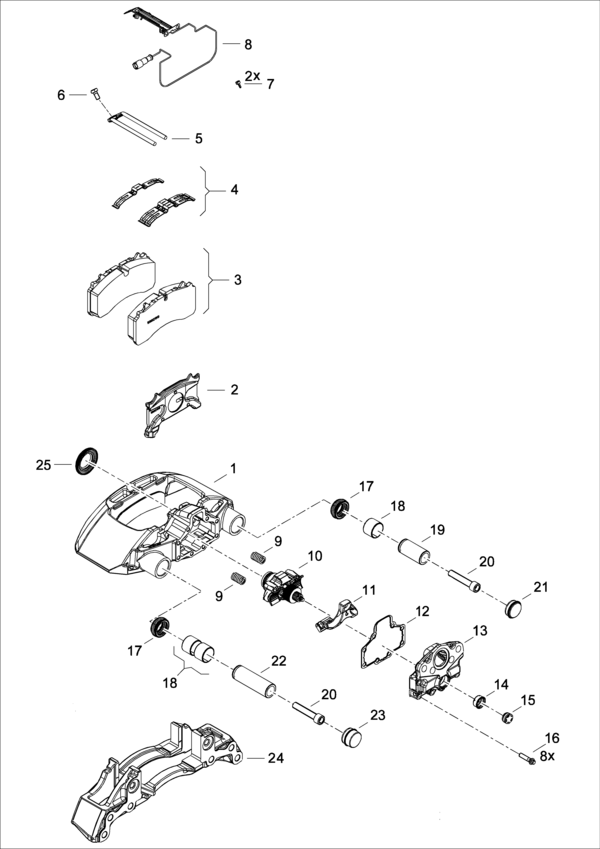

配件列表
| 1 | 制动钳 | 1 | ||
| 2 | 压盘 | 1 | 6402259262 | |
| 3 | BRAKE SHOE | 2 | 12999796 | |
| 4 | Leaf spring PAN 22-1 | 3 | 12999796 | |
| 5 | Down holder bracket | 1 | 12999796 | |
| 6 | Hexagon Bolt | 1 | 12999796 | |
| 7 | Tube clip | 2 | 12999797 | 17853023 |
| 8 | 磨耗指示器 | 1 | 12999797 | |
| 9 | Pressure Spring | 2 | ||
| 10 | 合膜单元 | 1 | ||
| 11 | 杠杆，手柄 | 1 | ||
| 12 | 密封 | 1 | ||
| 13 | 盖板 | 1 | ||
| 14 | 密封 | 1 | 6401759202 | 13227166 |
| 15 | 插头 | 1 | 12999796 6401759202 6402259212 | |
| 16 | Screw | 8 | 13730203 | |
| 17 | 密封 | 2 | 6402259212 | 12227001 |
| 18 | 衬套 | 3 | 6402259212 | |
| 19 | 销 | 1 | 6402259212 | |
| 20 | Cheese Head Screw, full thread | 2 | 6402259212 | |
| 21 | 盖板 | 1 | 6402259302 6402259212 | |
| 22 | 销 | 1 | 6401759202 6402259212 | |
| 23 | 盖板 | 1 | 6402259302 6402259212 | |
| 24 | Spider Plate | 1 | ||
| 25 | Boot | 1 | 6401759202 6402259212 |
