变速箱传动装置
Twin-Cyl.Compressor 704cc,flangemounted
材料编号:
421355012R
毛单价:
0.00
Features and Benefits
-
品类ZF REMAN - WABCO
-
产品型号再制造
-
技术标准OE标准
-
产品类别设备
-
容积计算值（dm³）93.6
-
最大工作压力12.0 bar
-
温度范围-40°C to +95°C
-
电压24 V
-
电气连接2x Bayonet
-
端口螺纹 1M16 x 1.5
-
端口螺纹 2VOSS 203-B Ø 4.0 mm
-
端口螺纹 31Ø16 mm
-
端口螺纹 32M10 x 1
-
端口螺纹 33Flap
-
结构模型ZF-AS TRONIC
-
重要信息Reman GS 裝置不隨附軟體，僅提供開機載入程式。請聯繫我們的 ZF 服務據點及/或 ZF 服務合作夥伴以獲取支援。
-
防护等级IP 6K9K
-
Size (mm x mm x mm)600 x 400 x 390
-
UPC193133479178
-
全球贸易项目代码04057875159070
-
重量 (kg)11.289
-
重量 (lb)24.888
Doc Type
drawing
Locale
en
Artical Number
421355012r____005_dascheck_d4_page-1---notset
Doc Type
brochure
Locale
en
Artical Number
zf_reman_core_return_guidelines
Doc Type
poster
Locale
en
Artical Number
82001893
服务&维修

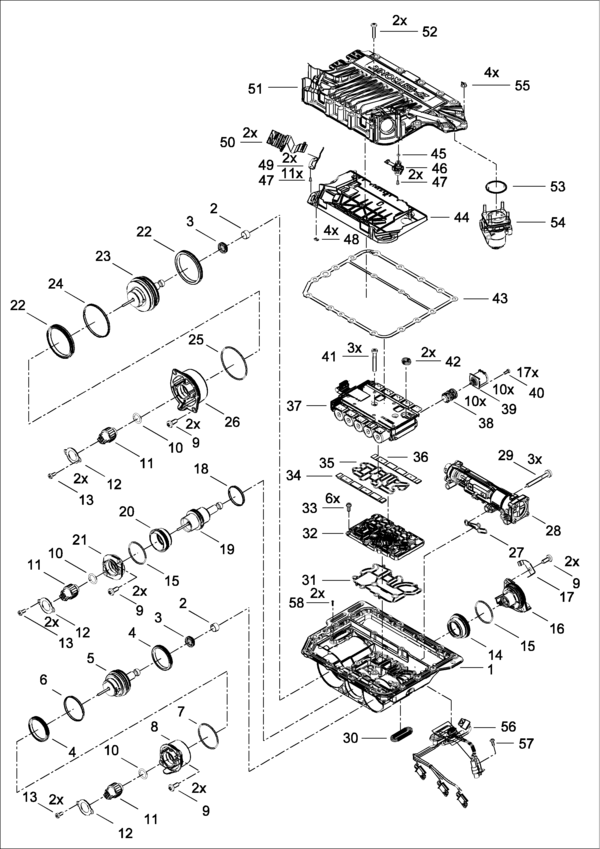

配件列表
| 1 | 车身 | 1 | 421355950R | |
| 2 | Bushing | 2 | 421355950R | |
| 3 | Radial Oil Seal | 2 | 421355950R | |
| 4 | Lip seal ring | 2 | 421355950R | |
| 5 | 活塞总成 | 1 | 421355950R | |
| 6 | 导环 | 1 | 421355950R | |
| 7 | O-Ring ISO3601-59,5x2,5 | 1 | 421355950R | |
| 8 | 后盖 | 1 | 421355950R | |
| 9 | Head screw | 8 | 421355950R | |
| 10 | O-Ring dynamical | 3 | 4213559322 421355950R | |
| 11 | Distance sensor module | 3 | 4213559322 421355950R | |
| 12 | Sheet | 3 | 4213559322 421355950R | |
| 13 | Cheese head screw ISO14580-M6x14 | 6 | 4213559322 421355950R | |
| 14 | 活塞总成 | 1 | 4213559492 421355950R | |
| 15 | O-Ring ISO3601-52x2,5 | 2 | 4213559492 421355950R | |
| 16 | 盖板 | 1 | 421355950R | |
| 17 | Sheet | 1 | 421355950R | |
| 18 | 导环 | 1 | 4213559492 421355950R | |
| 19 | 活塞总成 | 1 | 4213559492 421355950R | |
| 20 | 活塞总成 | 1 | 4213559492 421355950R | |
| 21 | 后盖 | 1 | 421355950R | |
| 22 | Lip seal ring | 2 | 421355950R | |
| 23 | 活塞总成 | 1 | 421355950R | |
| 24 | 导环 | 1 | 421355950R | |
| 25 | O-Ring ISO3601-79,3x2,5 | 1 | 421355950R | |
| 26 | 后盖 | 1 | 421355950R | |
| 27 | 垫圈 | 1 | 421355950R | |
| 28 | Gate Cylinder | 1 | 421355950R | |
| 29 | Fillister-Head Screw | 3 | 421355950R | |
| 30 | 垫圈 | 1 | 4213559252 4213559282 421355950R | |
| 31 | 密封 | 1 | 4213559472 421355950R | |
| 32 | Seat | 1 | 421355950R | |
| 33 | Cheese Head Screw | 6 | 421355950R | |
| 34 | 减振器 | 1 | 421355950R | |
| 35 | 密封 | 1 | 4213559472 421355950R | |
| 36 | 减振器 | 1 | 421355950R | |
| 37 | 阀组 | 1 | 421355950R | |
| 38 | 阀组 | 10 | 4213559512 421355950R | |
| 39 | Solenoid Valve | 10 | 421355950R | |
| 40 | Cheese head screw DIN6912-M5x12 | 17 | 4213559512 421355950R | |
| 41 | Fillister head screw ISO14583-M8x55 | 3 | 4213559472 4213559512 421355950R | |
| 42 | 垫圈 | 2 | 4213559252 4213559282 421355950R | |
| 43 | 垫圈 | 1 | 4213559282 421355950R | |
| 44 | Plate | 1 | ||
| 45 | O-Ring | 1 | 4213559462 | |
| 46 | 压力传感器 | 1 | 4213559462 | |
| 47 | Fillister head screw | 13 | ||
| 48 | Clip | 4 | 4213559432 4213559462 | |
| 49 | 弹簧 | 2 | ||
| 50 | 插头 | 2 | 4213559432 | |
| 51 | 盖板 | 1 | ||
| 52 | Screw | 2 | 4213559282 421355950R | |
| 53 | O-Ring ISO3601-45x2 | 1 | ||
| 54 | 限压阀 | 1 | ||
| 55 | Hexagon nut DIN6923-M6 | 4 | ||
| 56 | 电缆桥 | 1 | 421355950R | |
| 57 | Fillister head screw ISO7380-M5x12 | 1 | 421355950R | |
| 58 | 铆钉 | 2 | 421355950R |
