Hand Brake Valve, Truck/Trailer
Twin-Cyl.Compressor 704cc,flangemounted
材料编号:
9617242250
毛单价:
0.00
Features and Benefits
-
品类WABCO
-
产品型号高端原配质量
-
技术标准OE标准
-
产品类别设备
-
促动角度59.5°
-
容积计算值（dm³）9.367
-
排出Hose Nozzle Ø 6 mm
-
支架6x Ø 8 mm
-
最大工作压力8.5 bar
-
温度范围-40°C to +80°C
-
端口螺纹 1Quick connection
-
端口螺纹 21Quick connection
-
端口螺纹 22Quick connection
-
颜色Dark grey
-
Size (mm x mm x mm)290 x 190 x 170
-
UPC193133415305
-
全球贸易项目代码04057875365396
-
重量 (kg)1.067
-
重量 (lb)2.352
Doc Type
drawing
Locale
en
Artical Number
9617242250____005_dascheck_b3_page-1---notset
Doc Type
service_information
Locale
zh
Artical Number
service-information_hbv_961723xxxx_961724xxxx
服务&维修

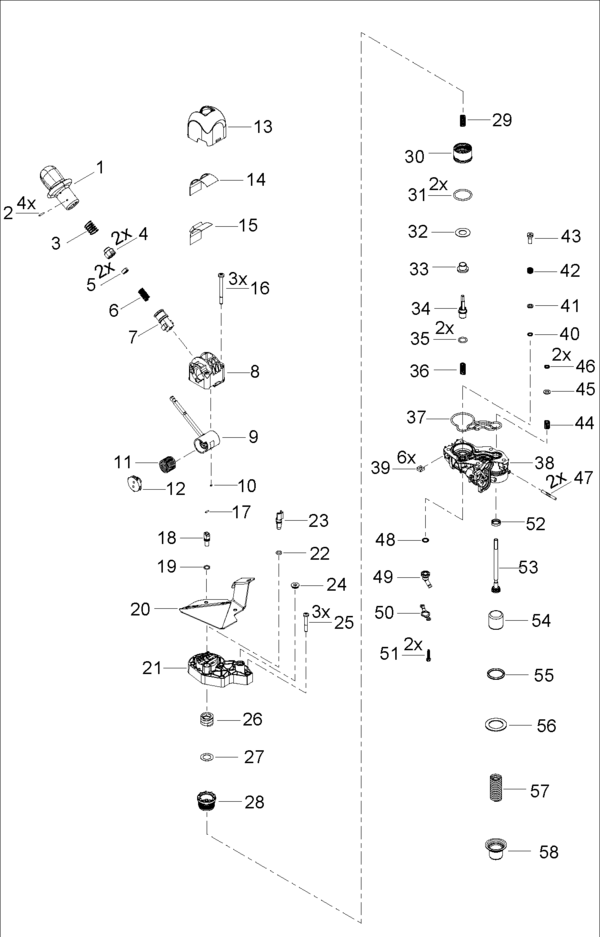

配件列表
| 1 | 把手 | 1 | ||
| 2 | Needle Roller DIN5402-2,18x14,3 | 4 | 9617249262 | 8954100204 |
| 3 | Cylindrical compression spring | 1 | 9617249262 | |
| 4 | 衬套 | 2 | 9617249262 | |
| 5 | 衬套 | 2 | 9617249262 | |
| 6 | Cylindrical compression spring | 1 | 9617249262 | |
| 7 | 挡块 | 1 | ||
| 8 | Head | 1 | ||
| 9 | 凸轮 | 1 | ||
| 10 | Needle | 1 | 8951217514 | |
| 11 | Torsion spring | 1 | 8962010714 | |
| 12 | 支架 | 1 | 9617233504 | |
| 13 | 盖板 | 1 | ||
| 14 | 发动机舱盖 | 1 | ||
| 15 | 发动机舱盖 | 1 | ||
| 16 | Screw (TORX) | 3 | 9617249262 | |
| 17 | Needle roller DIN5402-2x7,8 | 1 | ||
| 18 | 推杆 | 1 | 9617237304 | |
| 19 | O-Ring ISO3601-8x1,5 | 1 | 9617249262 | |
| 20 | 支架 | 1 | ||
| 21 | 盖板 | 1 | ||
| 22 | O-Ring ISO3601-6,4x1,9 | 1 | 9617249262 | |
| 23 | 阀柱塞 | 1 | ||
| 24 | 垫片 | 1 | 8950912814 | |
| 25 | Fillister head screw ISO14583-M5x35 | 3 | 9617249262 | |
| 26 | Cylindrical compression spring | 1 | ||
| 27 | 垫片 | 1 | ||
| 28 | Higher Cartridge | 1 | 9617232024 | |
| 29 | Cylindrical compression spring | 1 | ||
| 30 | Lower Cartridge | 1 | 9617232014 | |
| 31 | O-Ring ISO3601-28x2,5 | 2 | 9617249262 | |
| 32 | 垫片 | 1 | ||
| 33 | 阀 | 1 | 9617249262 | |
| 34 | 活塞总成 | 1 | 9617249262 | 9617236204 |
| 35 | O-Ring ISO3601-12x2 | 2 | 9617249262 | 8970700704 |
| 36 | Cylindrical compression spring | 1 | 9617249262 | |
| 37 | Sealing | 1 | 9617249262 | |
| 38 | 车身 | 1 | ||
| 39 | 螺母 | 6 | 9617249262 | |
| 40 | O-Ring ISO3601-5,7x1,9 | 1 | 9617249262 | |
| 41 | 垫片 | 1 | ||
| 42 | Cylindrical compression spring | 1 | ||
| 43 | 阀 | 1 | ||
| 44 | Cylindrical compression spring | 1 | ||
| 45 | 垫片 | 1 | ||
| 46 | O-Ring ISO3601-6,07x1,78 | 2 | 9617249262 | 8970860004 |
| 47 | Grooved pin DIN1475-4h11x35 | 2 | ||
| 48 | O-Ring ISO3601-8,9x1,9 | 1 | 9617249262 | 8970866704 |
| 49 | 排气管 | 1 | 9617232204 | |
| 50 | 固定板 | 1 | ||
| 51 | Self tapping screw | 2 | 9617249262 | |
| 52 | Valve ring | 1 | ||
| 53 | Pusher | 1 | ||
| 54 | 活塞总成 | 1 | ||
| 55 | O-Ring ISO3601-24,99x3,53 | 1 | 9617249262 | 8977726474 |
| 56 | 垫片 | 1 | ||
| 57 | Cylindrical compression spring | 1 | ||
| 58 | 盖板 | 1 |
