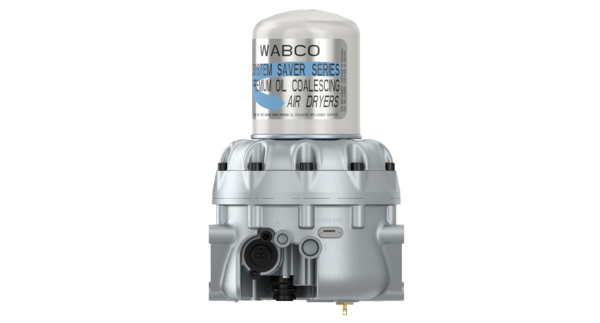

Air dryer
Twin-Cyl.Compressor 704cc,flangemounted
Part Number::
4324701510
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Product categoryDevice
-
Calculated Volume (dm³)0
-
Cartridge typeCoalescing Cartridge
-
Cut-out pressure125.46 to 135.61 psi
-
Max. operating pressure145.0 psi
-
Opening pressure185.65 psi
-
Port thread 211/2" - 14 NPTF
-
Port thread 221/2" - 14 NPTF
-
Port thread 4/231/4" - 18 NPTF
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
Voltage12 V
-
GTIN04057875173700
-
UPC193133437857
-
Weight (kg)9.2
-
Weight (lb)20.283
Replaces
-
KENWORTHS4324701510
-
MACK6300-4324701510
-
MERITORS4324701510
-
PETERBILTS4324701510
-
VOLVOTDAS4324701510
-
VOLVOWAB4324701510
Doc Type
drawing
Locale
multi
Artical Number
4324701510____005_dascheck_h4_page-1---notset
Doc Type
maintenance_instruction
Locale
en
Artical Number
tp9672
Doc Type
maintenance_instruction
Locale
en
Artical Number
mm34
Service & Repair
List of Spare Parts
| 1 | Body | 1 | ||
| 2 | O-Ring ISO3601-28x2,5 | 1 | 4324709212 | |
| 3 | Piston | 1 | 4324709212 | |
| 4 | O-Ring ISO3601-19,3x2,4 | 1 | 4324709212 | |
| 5 | O-Ring ISO3601-29,1x2,55 | 1 | 4324709212 | |
| 6 | Insert | 1 | 4324709212 | |
| 7 | Cover | 1 | 4324709212 | |
| 8 | Retaining ring DIN472-36x1,5 | 1 | 4324709212 | |
| 9 | O-Ring ISO3601-40,95x2,62 | 2 | 4324139292 | 8977860304 |
| 10 | Valve head | 1 | 4324139292 | 4324102514 |
| 12 | Valve | 1 | 4324139292 | 8995062604 |
| 13 | Piston | 1 | 4324139292 | 4324106224 |
| 14 | Washer | 1 | 4324139292 | 8951090604 |
| 15 | Cylindrical Compression Spring | 1 | 4324139292 | 8965166134 |
| 16 | Washer | 1 | 4324139292 | 8951052734 |
| 17 | Blind rivet DIN7337-3,2x10 | 1 | 4324139292 | |
| 18 | Bottom | 1 | 4324139292 | 4324105524 |
| 19 | Retaining ring DIN472-47x1,75 | 1 | 4324139292 | |
| 20 | Valve Washer | 1 | 4324139292 | 8970179604 |
| 21 | Cap | 1 | 4324139292 | |
| 22 | O-Ring ISO3601-6x1,0 | 2 | ||
| 23 | Fillister head screw ISO14583-M6x8 | 2 | ||
| 24 | O-Ring ISO3601-27x2 | 2 | ||
| 25 | Pipeline | 1 | ||
| 26 | Seal | 1 | ||
| 27 | Cover | 1 | ||
| 28 | Cheese head screw ISO4762-M10x65 | 10 | ||
| 29 | Tapped boss | 1 | ||
| 30 | O-Ring ISO3601-33x5 | 1 | 8977887204 | |
| 31 | Screening plate | 1 | 8993212104 | |
| 32 | Conical Compression Spring | 2 | ||
| 33 | O-Ring ISO3601-20x2 | 1 | 8970710304 | |
| 33 | O-Ring ISO3601-9x2,5 | 2 | ||
| 35 | Valve body | 2 | ||
| 36 | Valve Seat | 1 | ||
| 37 | Retaining Ring DIN472-24x1,2 | 1 | 8105180154 | |
| 38 | Desiccant and Oil Separator Cartridge | 1 | 4329012252 | |
| 39 | Body | 1 | 4324709202 | |
| 40 | O-Ring, dynamical ISO3601-25.07x2.62 | 1 | 4324709202 | |
| 41 | Conical Compression Spring | 1 | 4324709202 | |
| 42 | Valve | 1 | 4324709202 | |
| 43 | Plunger | 1 | 4324709202 | |
| 44 | Stem | 1 | 4324709202 | |
| 45 | Conical Compression Spring | 1 | 4324709202 | |
| 46 | Spring Mounting Set | 1 | 4324709202 | |
| 47 | Circlip | 1 | 4324709202 | |
| 48 | Cover | 1 | 4324709202 | |
| 49 | Hexagon Flange Bolt DIN6921-M8x70 | 2 | 4324709202 | |
| 50 | Heater 12V | 1 | 4324139232 | |
| 52 | Support | 1 | 4324139232 | 4324083504 |
| 53 | Tapping screw ISO7049-B2,9x6,5 | 1 | 4324139232 | |
| 54 | O-Ring ISO3601-36x2,5 | 1 | 4324139232 | 8977829104 |
| 55 | Male Connection | 1 | 4324139232 | |
| 56 | Screw | 2 | 4324139232 |
