Compressor 2 cilinder

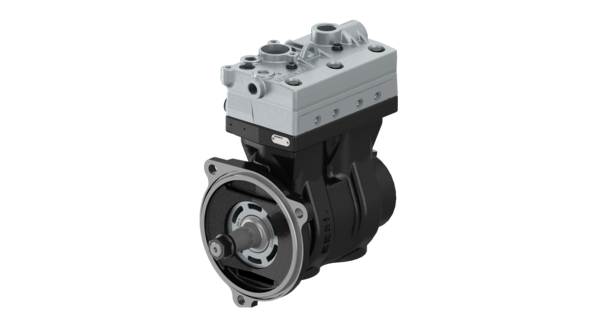

Twin-Cyl.Compressor 704cc,flangemounted
Onderdeelnummer::
9125120297
Brutoprijs/Stuk:
0.00
Kenmerken en voordelen
-
MerkWABCO
-
Type onderdeelPremium OE kwaliteit
-
Technische specificatieOE specificatie
-
ProductcategorieApparaat
-
Bedrijfssnelheid3000 (1/min)
-
Berekend volume (dm³)18.7645
-
KoelingWater
-
Max. bedrijfsdruk14.0 bar
-
OphangingMontageflens
-
Schroefdraad krukasM20 x 1.5
-
Schroefdraad poort 0Ø 34.9 mm
-
Schroefdraad poort 2M26 x 1.5
-
Schroefdraad poort 4M16 x 1.5
-
Schroefdraad poort 8.1M12 x 1.5
-
Schroefdraad poort 9.1M16 x 1.5
-
Schroefdraad poort 9.2M16 x 1.5
-
Slagvolume (cm3)636 cm3
-
SmeringLubrication supplied from engine
-
VoertuigtypeTwin Cylinder
-
Zuigerdiameter85 mm
-
Zuigerslag56 mm
-
Afmetingen (MM x MM x MM)305 x 329 x 187
-
GTIN04057875274469
-
Gewicht (kg)19.908
-
UPC193133447504
-
Gewicht (lb)43.8896
Doc Type
drawing
Locale
de
Artical Number
9125120297____053_dascheck_b2_page-1---notset
Doc Type
catalog
Locale
en
Artical Number
pb19028
Doc Type
market_information
Locale
nl
Artical Number
17180
Doc Type
repair_test_instructions
Locale
en
Artical Number
91200095
Service & Reparatie
Lijst van vervangingsonderdelen
| 1 | Carter, krukaskamer | 1 | ||
| 2 | Bushing | 1 | ||
| 3 | Crank Shaft | 1 | ||
| 4 | Snap Ring | 1 | ||
| 5 | Adapter | 1 | ||
| 6 | Wielmoer M20x1,5 | 1 | 8103410014 | |
| 7 | Afdekking | 1 | 8950723004 | |
| 8 | Connecting Rod Top | 1 | ||
| 9 | Connecting Rod Bottom | 1 | ||
| 10 | Schroef | 2 | 8912019294 | |
| 11 | Kap | 2 | 8950735894 | |
| 12 | Zuiger | 2 | ||
| 13 | Wrist Pin | 2 | ||
| 14 | Retaining ring DIN472-19x1 | 4 | ||
| 15 | Zuigerveer | 2 | ||
| 16 | Zuigerveer | 2 | ||
| 17 | Zuigerveer | 2 | ||
| 18 | Kop van draaibank | 2 | ||
| 19 | Suction Leaf | 1 | 9125129432 | |
| 20 | Spruitstuk | 1 | ||
| 21 | Slotted Spring Pin DIN7346-10x24 | 2 | ||
| 22 | Parallel Pin | 4 | ||
| 23 | Geleiding | 2 | ||
| 24 | Cylindrical Compression Spring | 2 | ||
| 25 | O-Ring ISO3601-8,13x1,78 | 2 | 8970729484 | |
| 26 | Zuiger | 2 | ||
| 27 | O-Ring ISO3601-9,75x1,78 | 2 | ||
| 28 | Afsluitschroef | 2 | 8931847154 | |
| 29 | drukklep | 2 | ||
| 30 | Cheese Head Screw,special type | 4 | ||
| 31 | Sealing push in cap DIN443-A10 | 4 | ||
| 32 | Sealing | 1 | 9125129432 | |
| 33 | Blad | 1 | ||
| 34 | Dichting | 1 | 9125129432 | |
| 35 | Afdekking | 1 | ||
| 36 | Bout | 6 | 9125129432 | 8912119994 |
| 37 | Schroef | 2 | 9125129432 |
