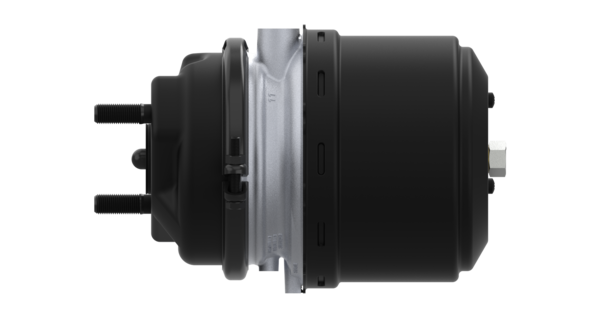

Veerremcilinder 24/30_AM
Twin-Cyl.Compressor 704cc,flangemounted
Onderdeelnummer::
9254818010
Brutoprijs/Stuk:
415.00
Kenmerken en voordelen
-
MerkWABCO
-
Type onderdeelPremium OE kwaliteit
-
Technische specificatieOE specificatie
-
ProductcategorieApparaat
-
Berekend volume (dm³)22.21
-
Afmetingen (MM x MM x MM)367 x 246 x 246
-
GTIN04057875820536
-
Gewicht (kg)10.11
-
UPC193133419808
-
Gewicht (lb)22.29
vervangt
-
SCANIA2494053
Doc Type
drawing
Locale
multi
Artical Number
9254818090____053_dascheck_-7_page-1---notset
Doc Type
installation_instruction
Locale
multi
Artical Number
doc000132ml
Doc Type
market_information
Locale
nl
Artical Number
19110
Service & Reparatie
Lijst van vervangingsonderdelen
| 1 | cilinderbuis | 1 | ||
| 2 | Barrel Power Spring 30 | 1 | ||
| 3 | Bolt HRB | 1 | ||
| 4 | Ring | 1 | 8971615894 | |
| 5 | Zuiger | 1 | ||
| 6 | O-ring ISO3601-15x2 | 1 | 8977702504 | |
| 7 | Stootring | 1 | 8930301704 | |
| 8 | ZK MOER 20 | 1 | 8103040314 | |
| 9 | Grooved Pin ISO8740-4x10 | 1 | ||
| 10 | Geleidering | 1 | ||
| 11 | O-RING | 1 | 8977714804 | |
| 12 | Flens | 1 | ||
| 13 | Membraan | 1 | 8971205354 | |
| 14 | Zuiger 24 | 1 | ||
| 15 | Barrel Spring | 1 | 8960801724 | |
| 16 | beschermhoes | 1 | 8977548862 | |
| 17 | Cilinderdeksel 24 | 1 | ||
| 18 | Klemband T24 | 1 | 4231063504 | |
| 19 | Hexagon Head Screw ISO4017-M8x50 | 1 | 8101263284 | |
| 20 | Hexagon Nut DIN934-M8 | 1 | 8103041114 | |
| 21 | Afstandsring | 1 | ||
| 22 | Afstandsschijf | 1 | 8951112794 | |
| 23 | Drukstuk | 1 | ||
| 24 | Tapping Screw M6x12 | 1 |
